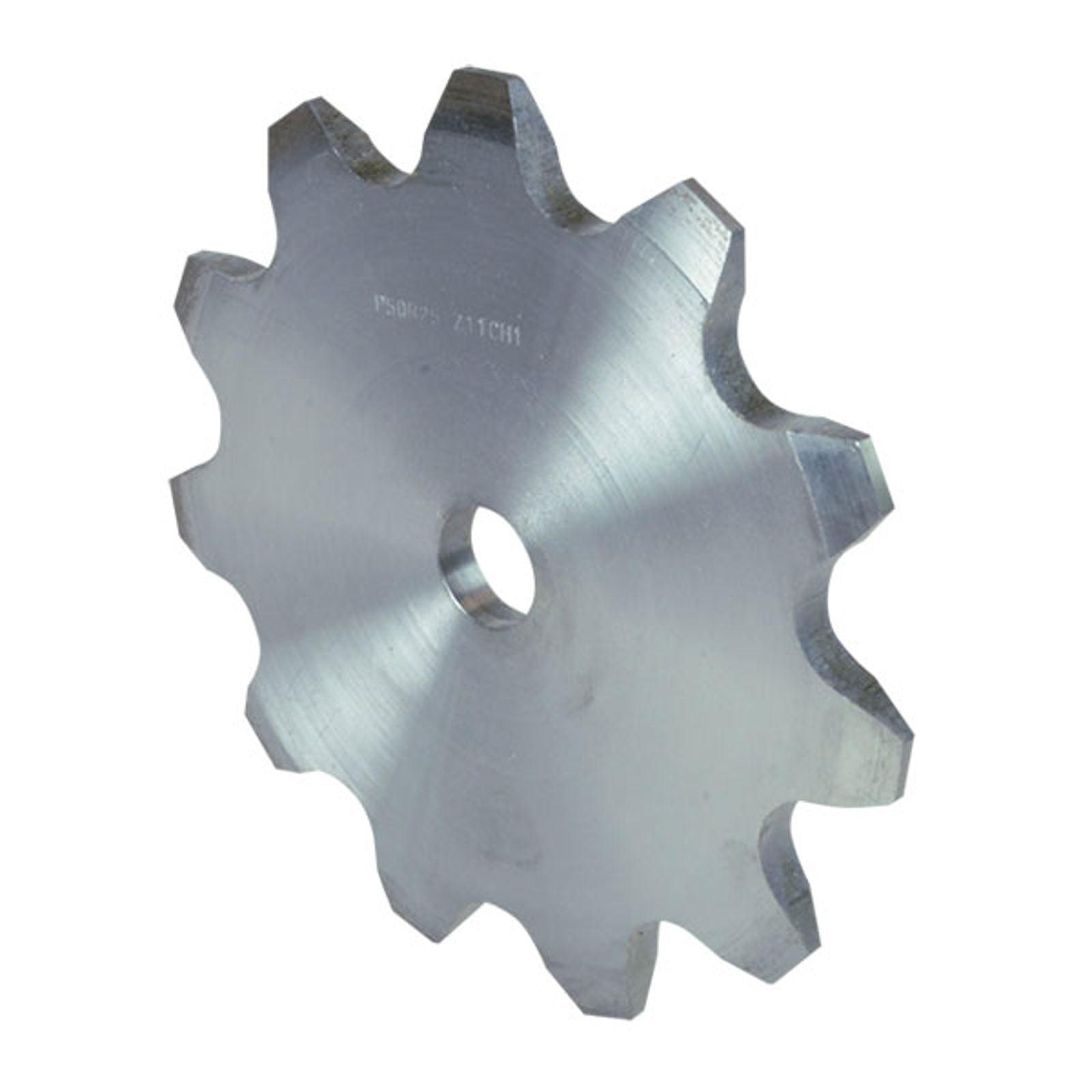

Sprocket for Conveyor Chains P75 Roller 31 (welded hub)

Name: Chiaravalli Sprocket for Conveyor Chains P75 Roller 31 (welded hub)
Brand: Chiaravalli

Chain Sprockets

Chain sprocket for P75 conveyor/elevator chain, roller Ø 31 mm — realized with welded hub.

Select a row to add it to your quote

Teeth

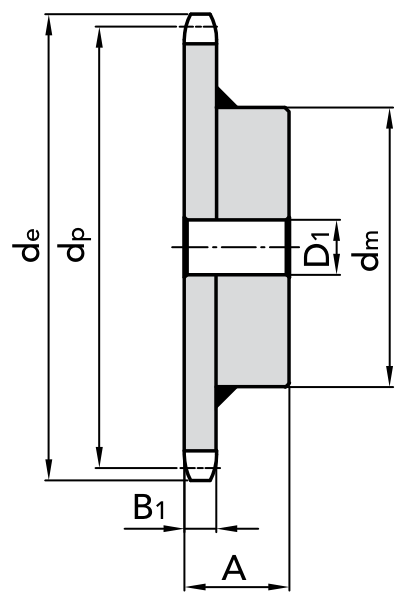

Code	Z	de	dp	D1	dm	A	Weight
`14753108`	`8`	`217.6` mm	`195.98` mm	`30` mm	`90` mm	`46.6` mm	`4.52` kg
`14753109`	`9`	`241` mm	`219.3` mm	`30` mm	`90` mm	`46.6` mm	`5.36` kg
`14753110`	`10`	`264.4` mm	`242.77` mm	`30` mm	`110` mm	`58.7` mm	`8.7` kg
`14753111`	`11`	`287.9` mm	`266.25` mm	`30` mm	`110` mm	`58.7` mm	`9.6` kg
`14753112`	`12`	`311.5` mm	`289.8` mm	`30` mm	`110` mm	`58.7` mm	`10.73` kg
`14753113`	`13`	`334.1` mm	`313.42` mm	`30` mm	`110` mm	`58.7` mm	`11.83` kg
`14753114`	`14`	`358.7` mm	`337.05` mm	`30` mm	`110` mm	`58.7` mm	`11.83` kg
`14753115`	`15`	`382.3` mm	`360.67` mm	`30` mm	`110` mm	`58.7` mm	`14.45` kg
`14753116`	`16`	`406.1` mm	`384.45` mm	`30` mm	`133` mm	`64.4` mm	`17.43` kg
`14753117`	`17`	`429.7` mm	`408.07` mm	`30` mm	`133` mm	`64.4` mm	`17.43` kg
`14753121`	`21`	`524.8` mm	`503.17` mm	`30` mm	`133` mm	`64.4` mm	`26.07` kg
`14753125`	`25`	`620.1` mm	`598.42` mm	`30` mm	`133` mm	`64.4` mm	`26.07` kg
