Chiaravalli
CRT Transport Chain 1.1205 A1-02 (Solid Coupling Pins with Attachments)

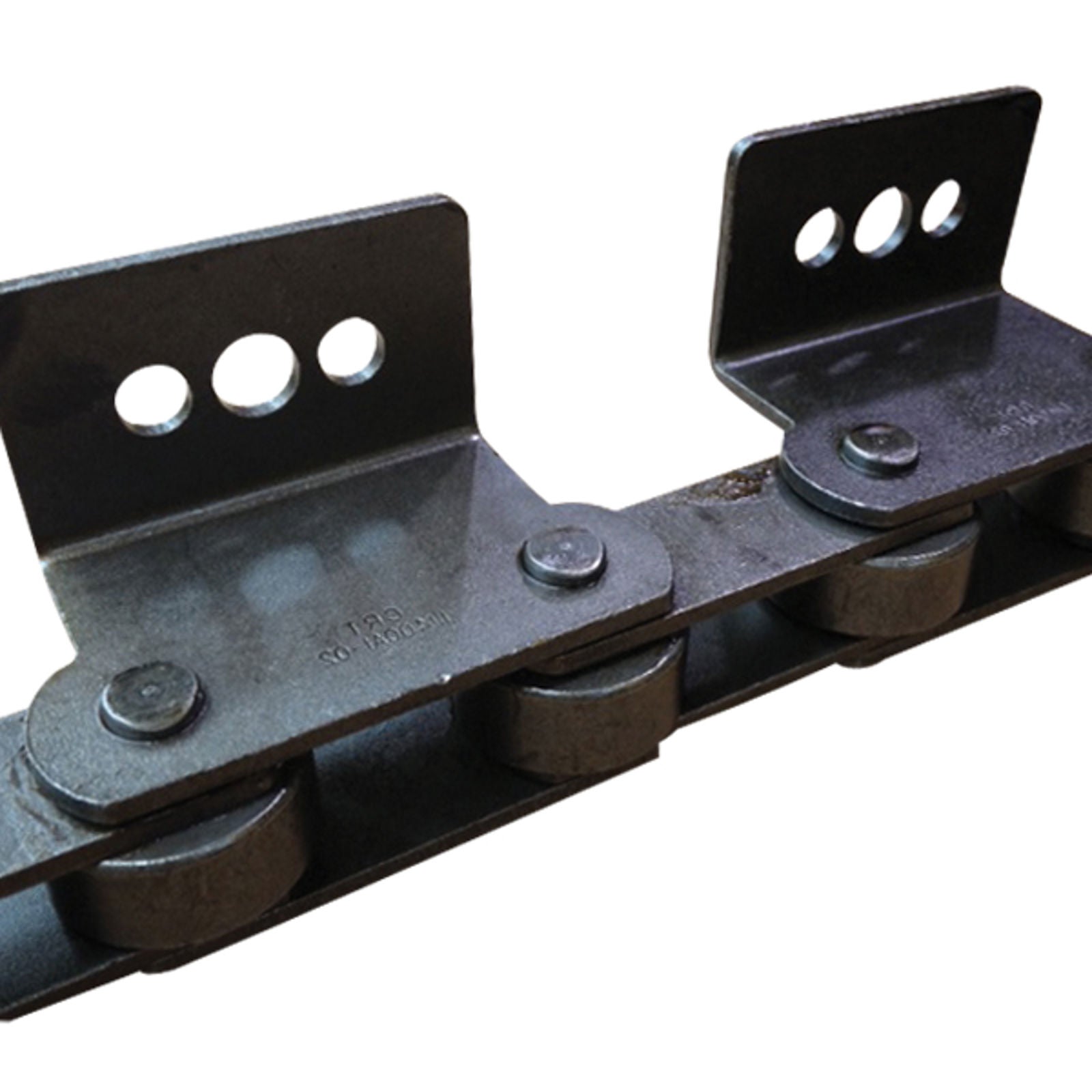

CRT® transport chain 1.1205 A1-02 — solid coupling pins with attachments, supplied as a 5 m pack. Chains manufactured by an ISO 9001 certified factory.
Product Configuration
Select a row to add it to your quote

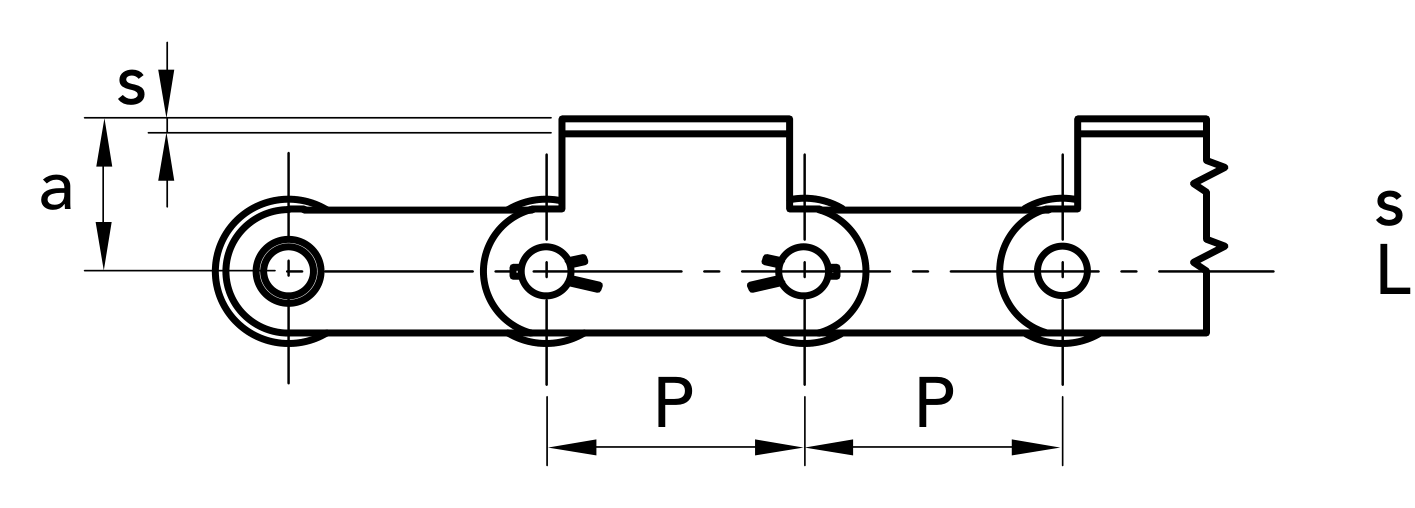

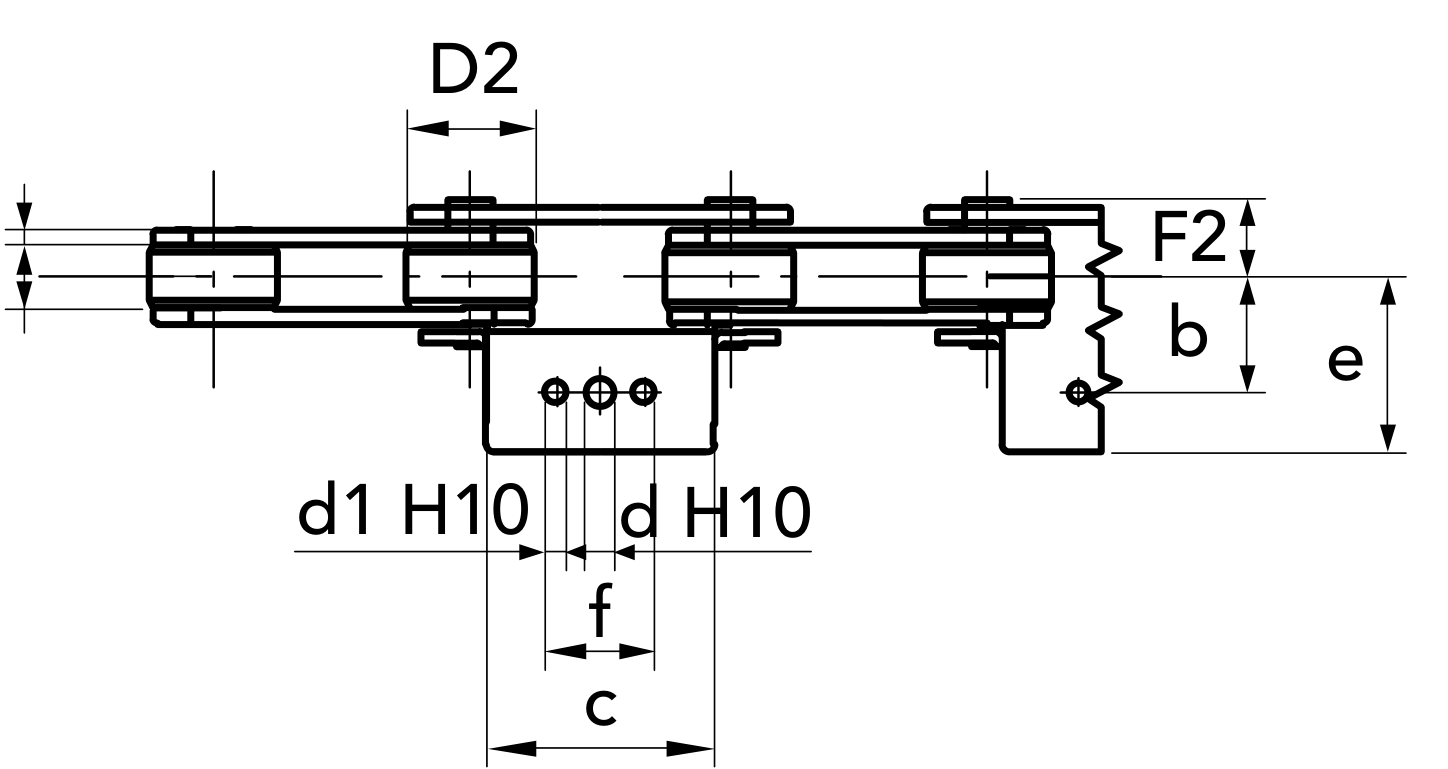

| Code | Item | P | D2 | a | b | c | d | e | s | L | F2 | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
74532050 |
Chain
|
50 mm
|
25 mm
|
24 mm
|
22 mm
|
46 mm
|
6.5 mm
|
36 mm
|
2.5 mm
|
11.5 mm
|
12.75 mm
|
18 kN
|
2.5 kg/m
|
74522055 |
Coupling
|
— | — | — | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Series
1.1205 A1-02- Chain Type
- CRT® transport chain — solid coupling pins with attachments
- Packaging
- Pack of 5 m
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
