CRT Transport Chain 1.1205 (Solid Coupling Pins)

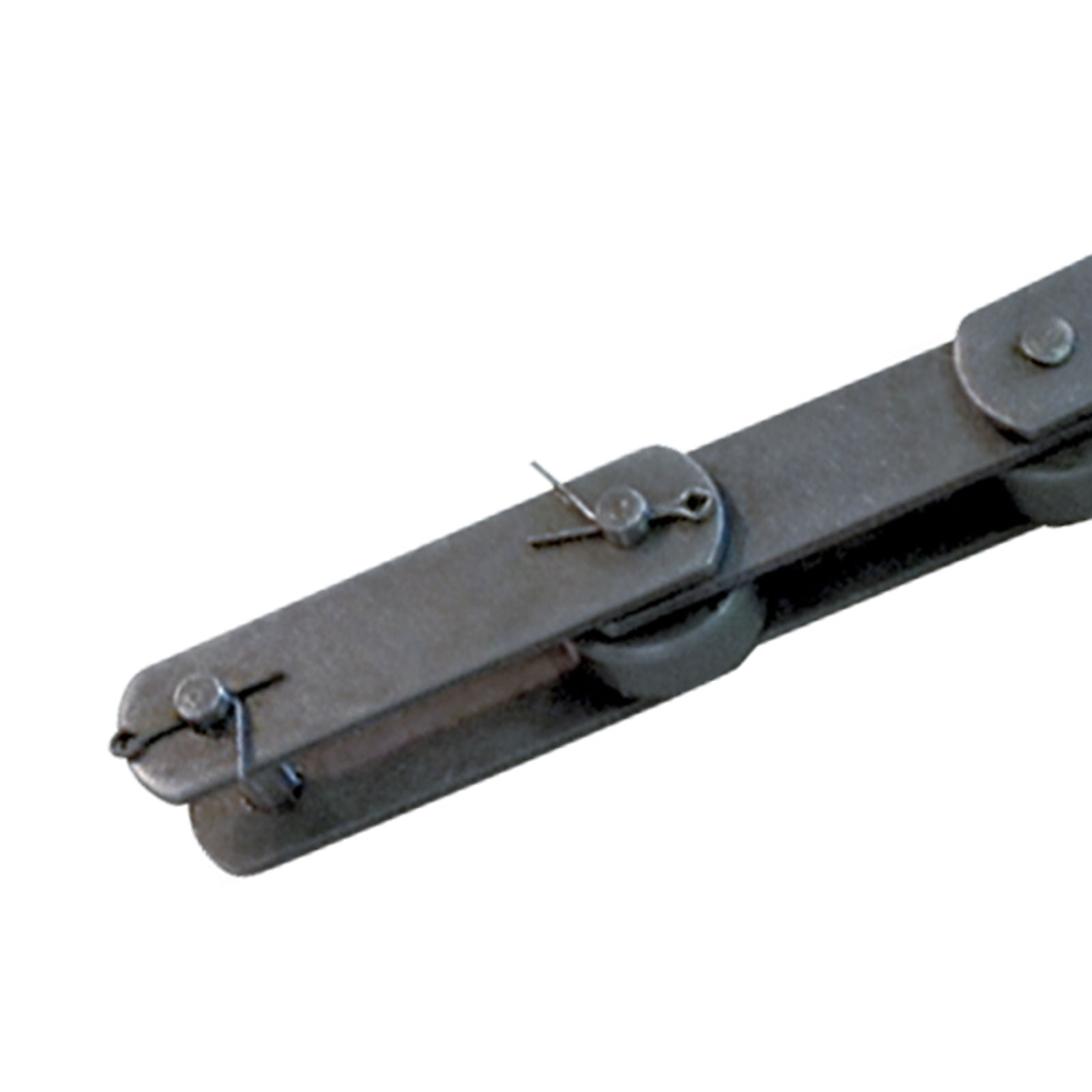

CRT® transport chain 1.1205 — solid coupling pins, supplied as a 5 m pack. Chains manufactured by an ISO 9001 certified factory.
Product Configuration
Select a row to add it to your quote
| Code | Item | P | L | D2 | D5 | D6 | H | S | F1 | F2 | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
74502050 |
Chain
|
50 mm
|
11.5 mm
|
25 mm
|
8.35 mm
|
5.7 mm
|
18 mm
|
2.5 mm
|
25.5 mm
|
15.4 mm
|
18 kN
|
1.7 kg/m
|
74502055 |
Coupling
|
— | — | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Series
1.1205- Chain Type
- CRT® transport chain — solid coupling pins
- Packaging
- Pack of 5 m
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
