Chiaravalli

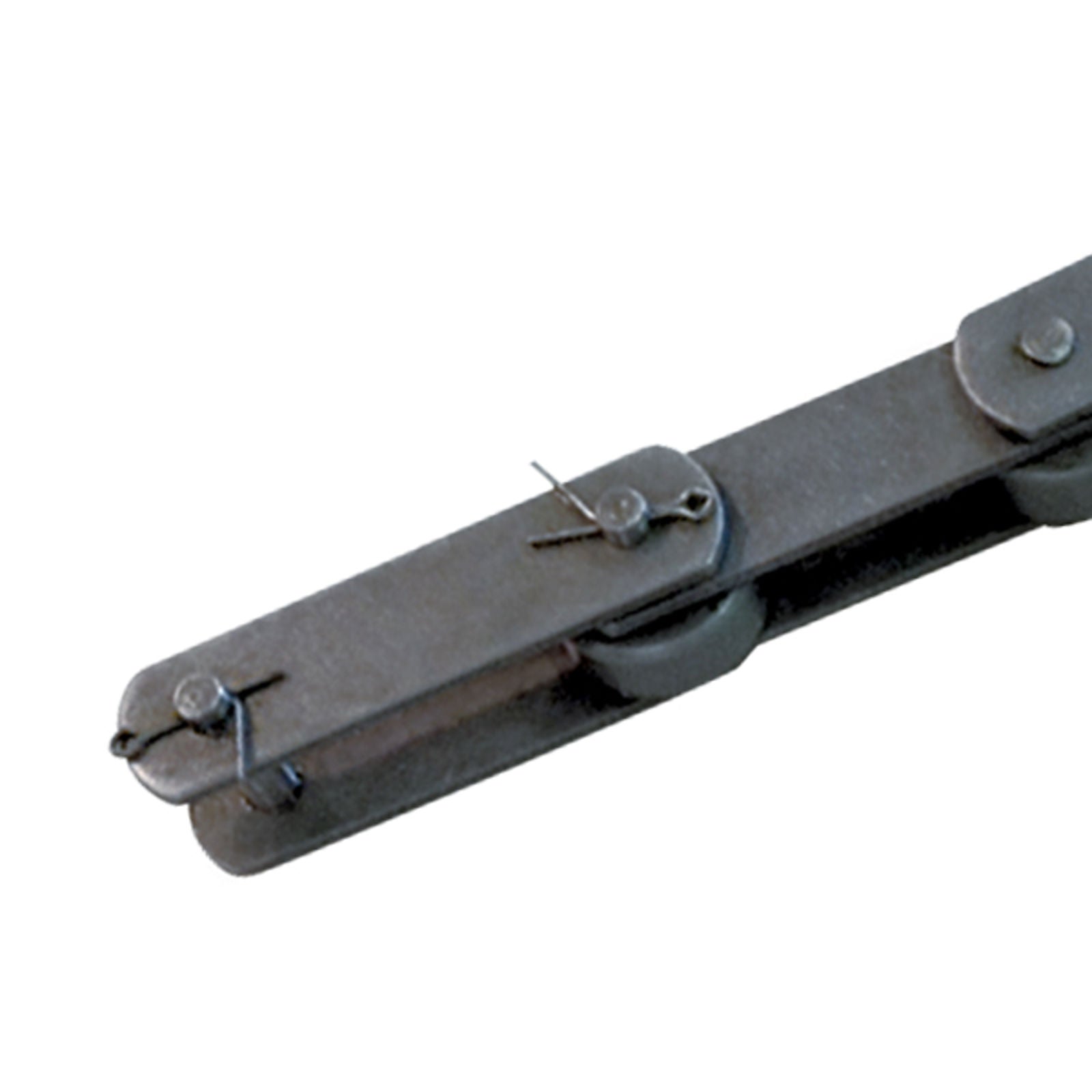

CRT Transport Chain 1.1206 (Solid Coupling Pins)
CRT® transport chain 1.1206 — solid coupling pins, supplied as a 5 m pack. Chains manufactured by an ISO 9001 certified factory.
Product Configuration
Select a row to add it to your quote

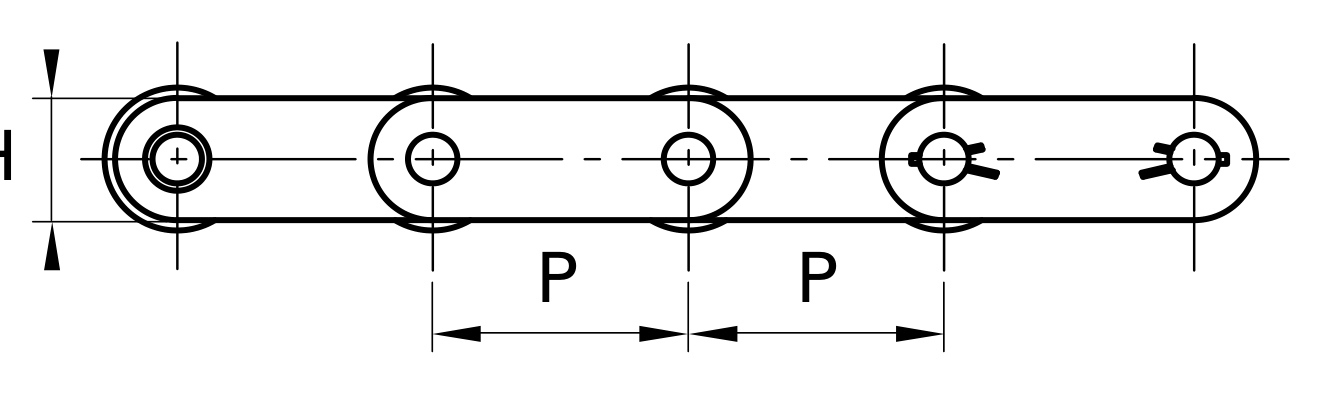

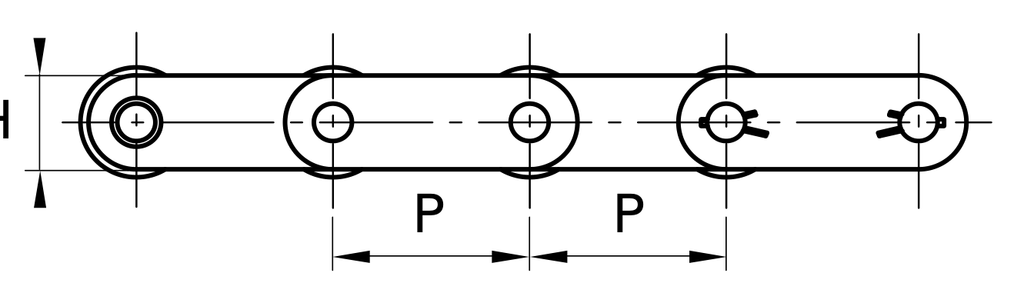

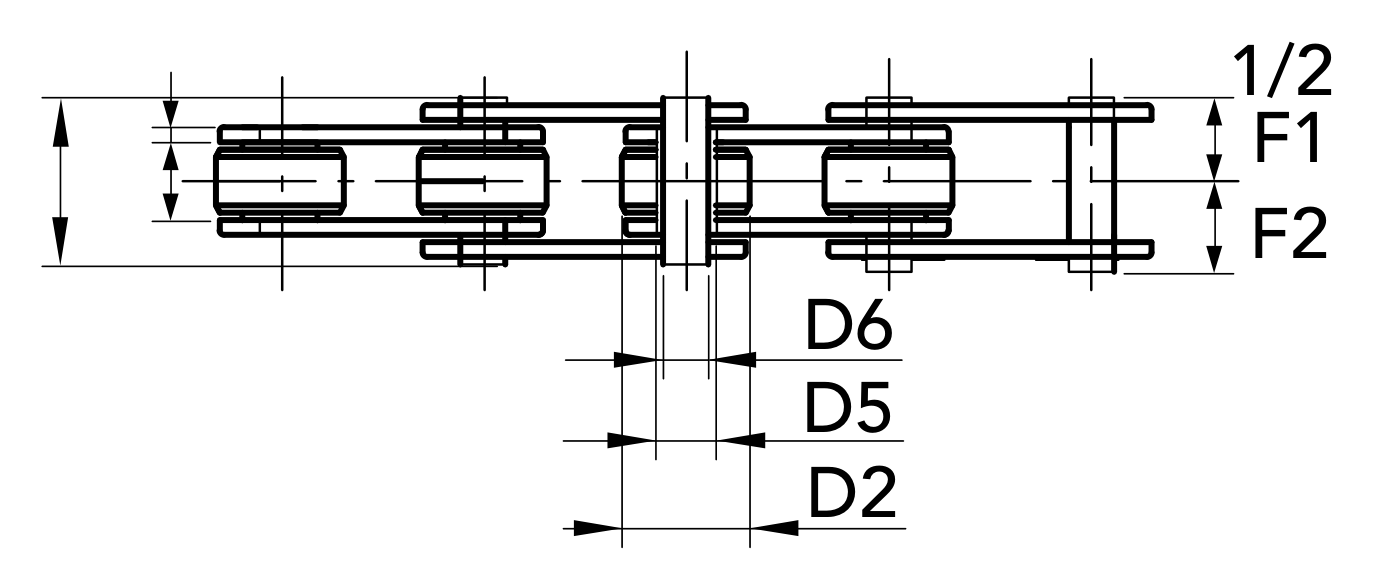

| Code | Item | P | L | D2 | D5 | D6 | H | S | F1 | F2 | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
74502060 |
Chain
|
50 mm
|
11.5 mm
|
25 mm
|
11 mm
|
8 mm
|
20 mm
|
3 mm
|
28.8 mm
|
16.5 mm
|
22 kN
|
2.1 kg/m
|
74502065 |
Coupling
|
— | — | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Series
1.1206- Chain Type
- CRT® transport chain — solid coupling pins
- Packaging
- Pack of 5 m
