Chiaravalli

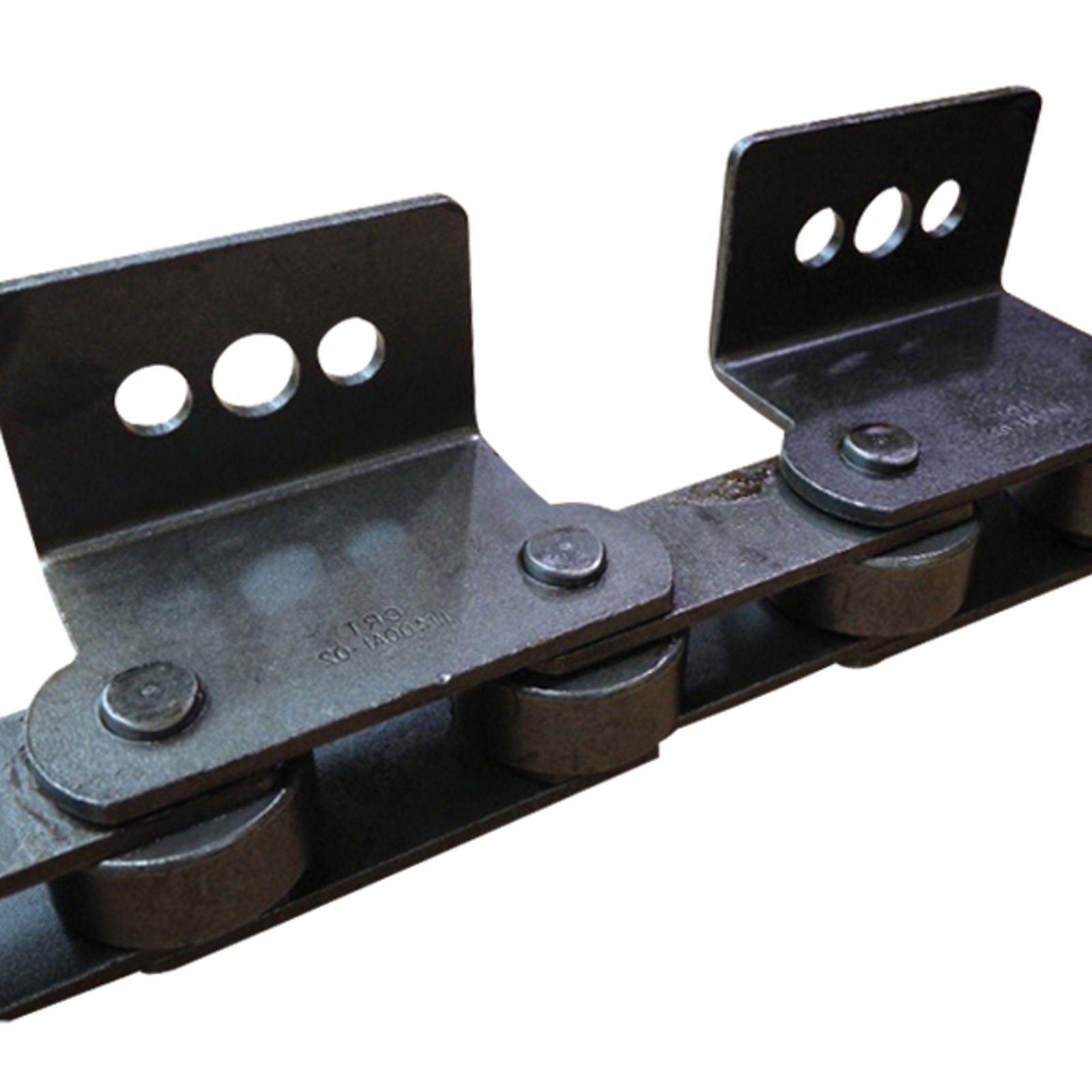

CRT Transport Chain 1.1400 A3-02 (Solid Coupling Pins with Attachments)
CRT® transport chain 1.1400 A3-02 — solid coupling pins with attachments, supplied as a 5 m pack. Chains manufactured by an ISO 9001 certified factory.
Product Configuration
Select a row to add it to your quote

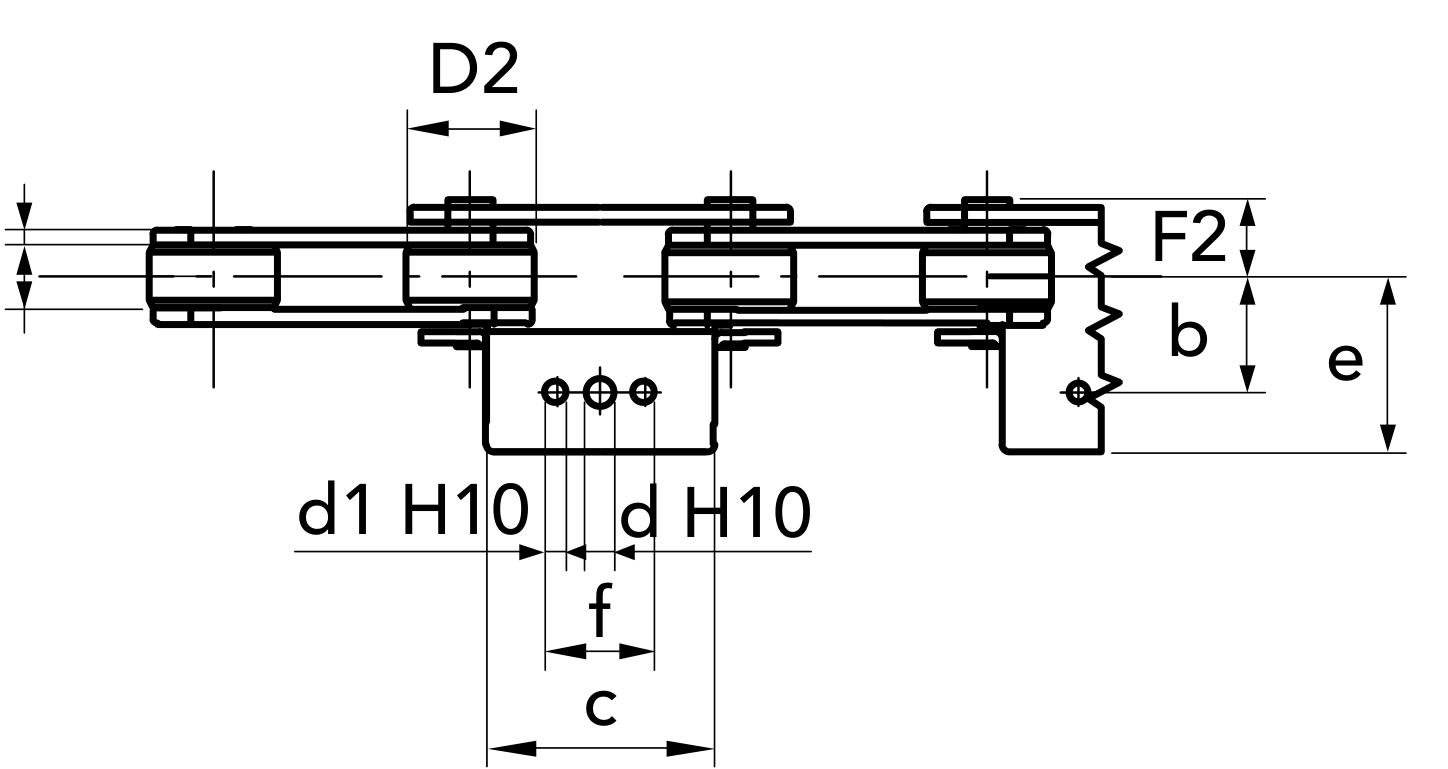

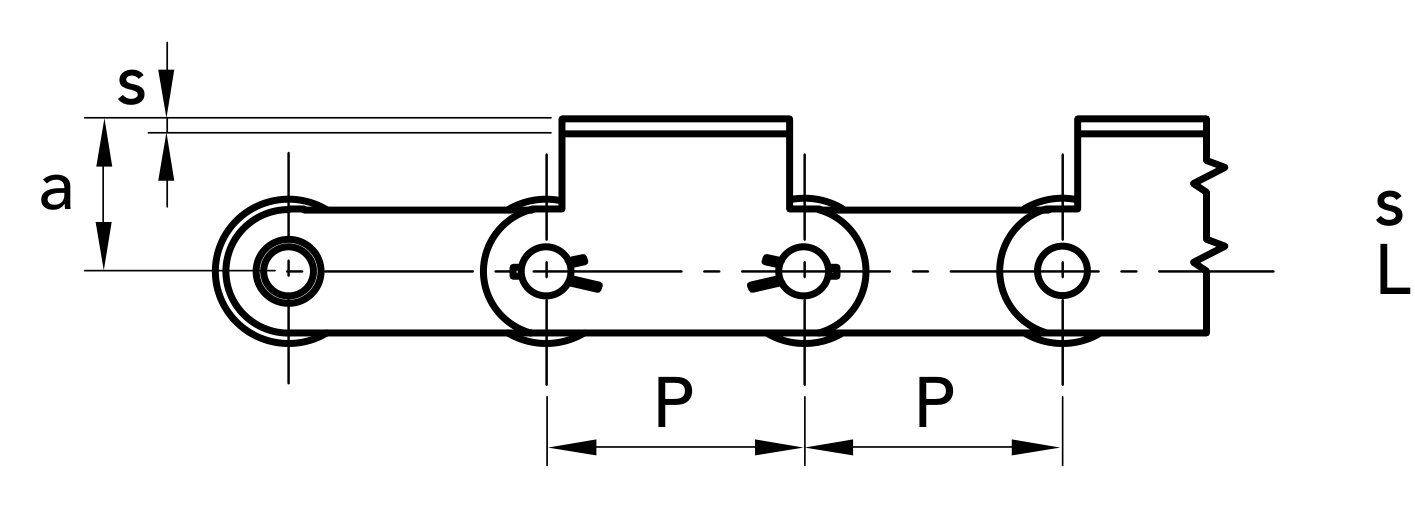

| Code | Item | P | D2 | a | b | c | d | e | s | d1 | f | L | F2 | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
74534000 |
Chain
|
50 mm
|
31 mm
|
35 mm
|
31 mm
|
60 mm
|
10.5 mm
|
48.5 mm
|
3 mm
|
8.5 mm
|
25 mm
|
15 mm
|
16.3 mm
|
32 kN
|
4.23 kg/m
|
74534005 |
Coupling
|
— | — | — | — | — | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Series
1.1400 A3-02- Chain Type
- CRT® transport chain — solid coupling pins with attachments
- Packaging
- Pack of 5 m
