Chiaravalli
CRT Transport Chain 1.1500 (Solid Coupling Pins)
CRT® transport chain 1.1500 — solid coupling pins, supplied as a 5 m pack. Chains manufactured by an ISO 9001 certified factory.
Product Configuration
Select a row to add it to your quote

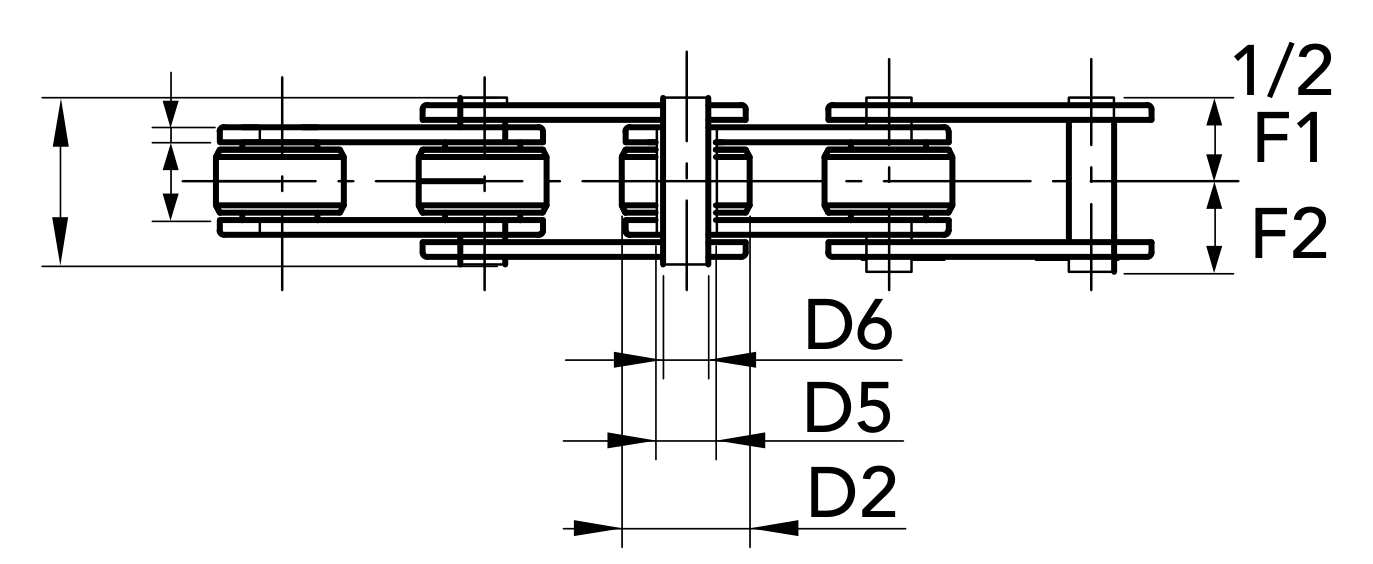

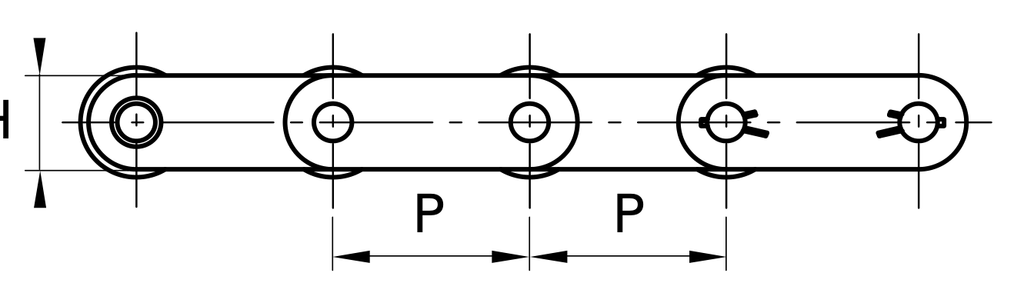

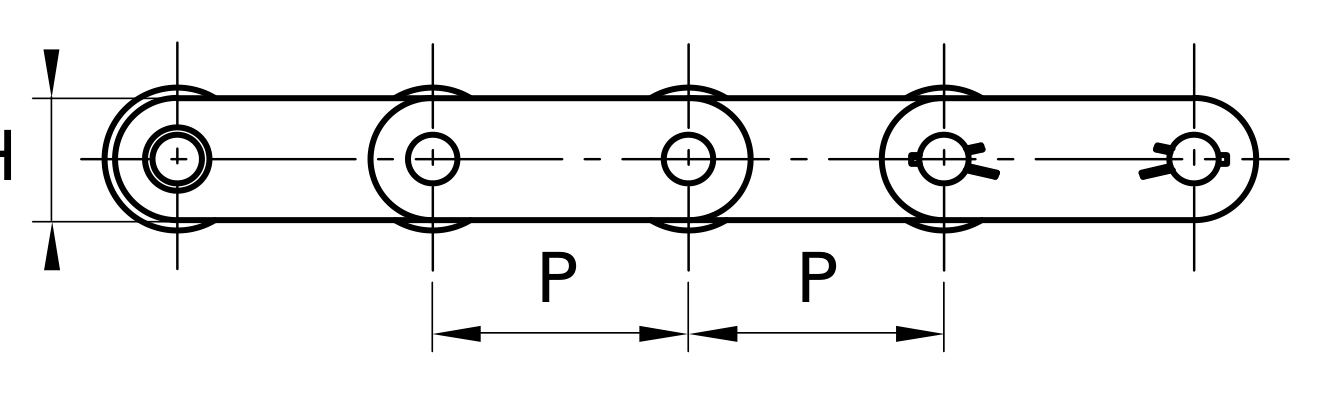

| Code | Item | P | L | D2 | D5 | D6 | H | S | F1 | F2 | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
74505000 |
Chain
|
50 mm
|
15 mm
|
31 mm
|
13.2 mm
|
10 mm
|
25 mm
|
4 mm
|
36.6 mm
|
20.7 mm
|
40 kN
|
3.9 kg/m
|
74505005 |
Coupling
|
— | — | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Series
1.1500- Chain Type
- CRT® transport chain — solid coupling pins
- Packaging
- Pack of 5 m
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
