Chiaravalli

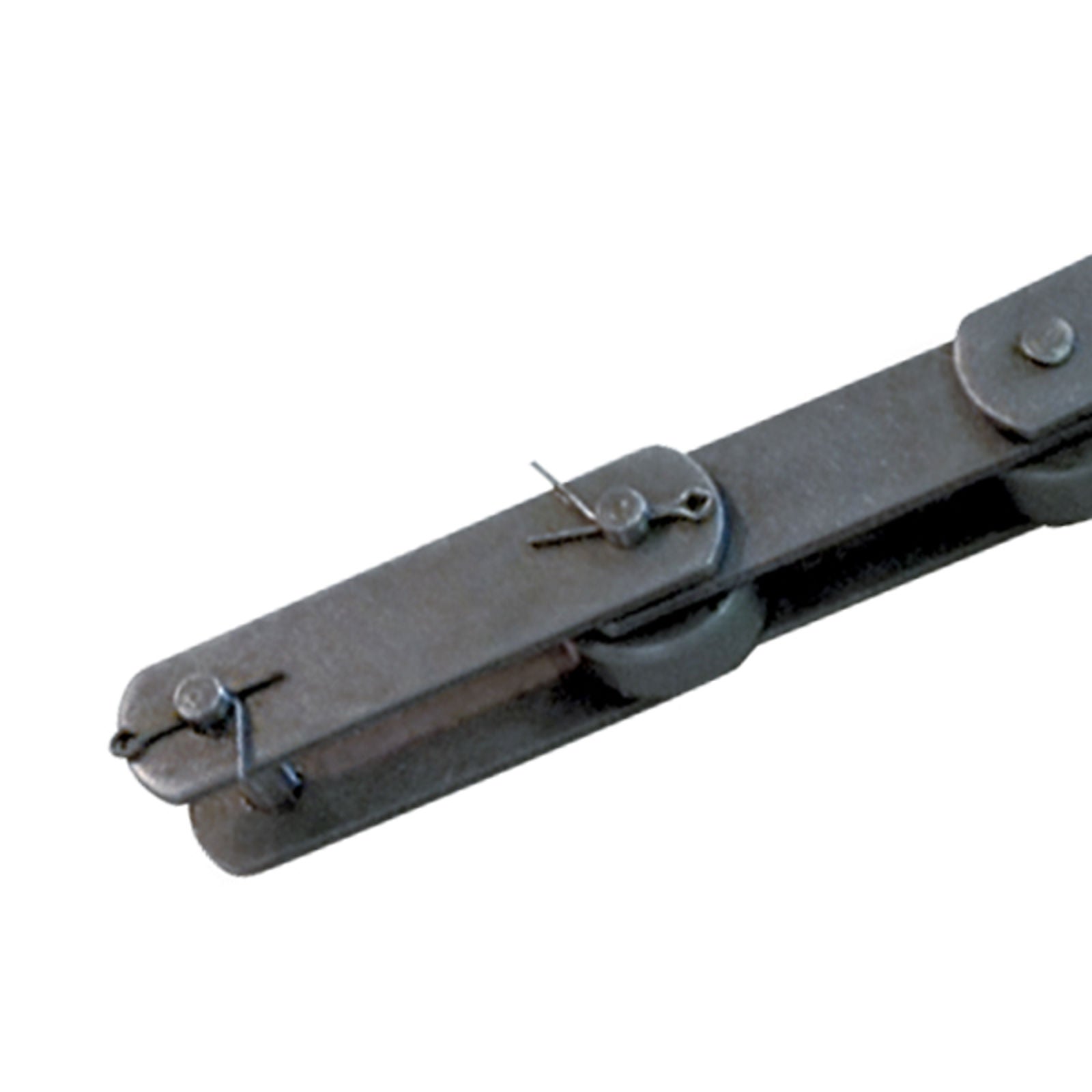

CRT Transport Chain 1.1703 (Solid Coupling Pins)
CRT® transport chain 1.1703 — solid coupling pins, supplied as a 5 m pack. Chains manufactured by an ISO 9001 certified factory.
Product Configuration
Select a row to add it to your quote

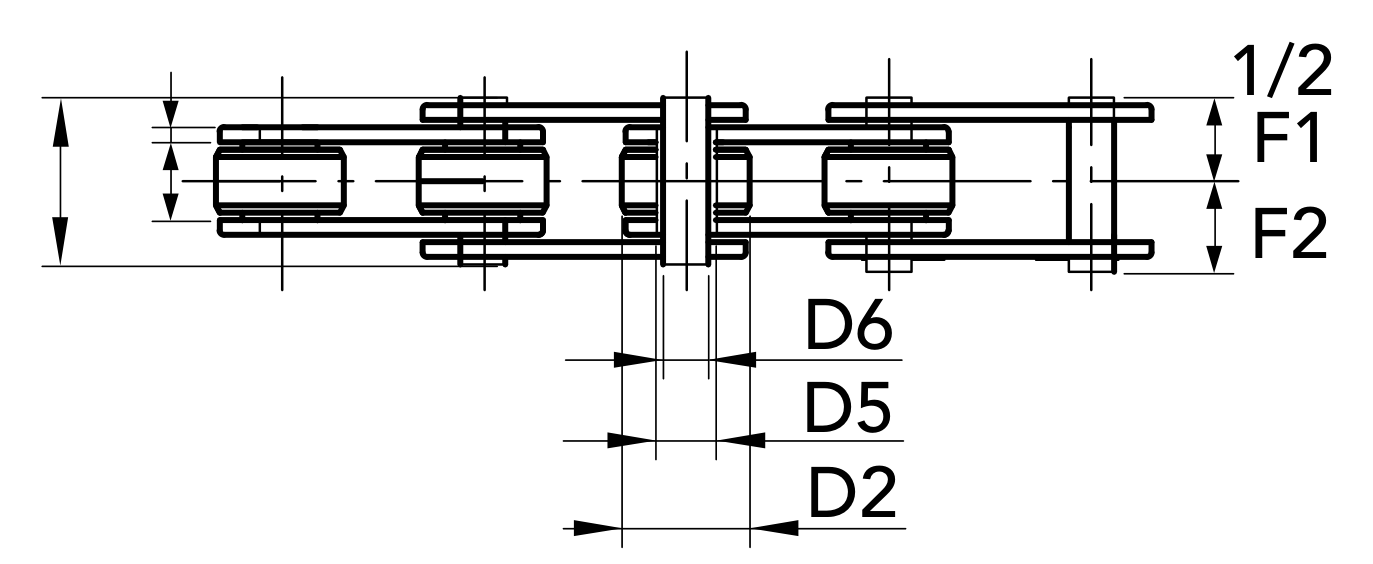

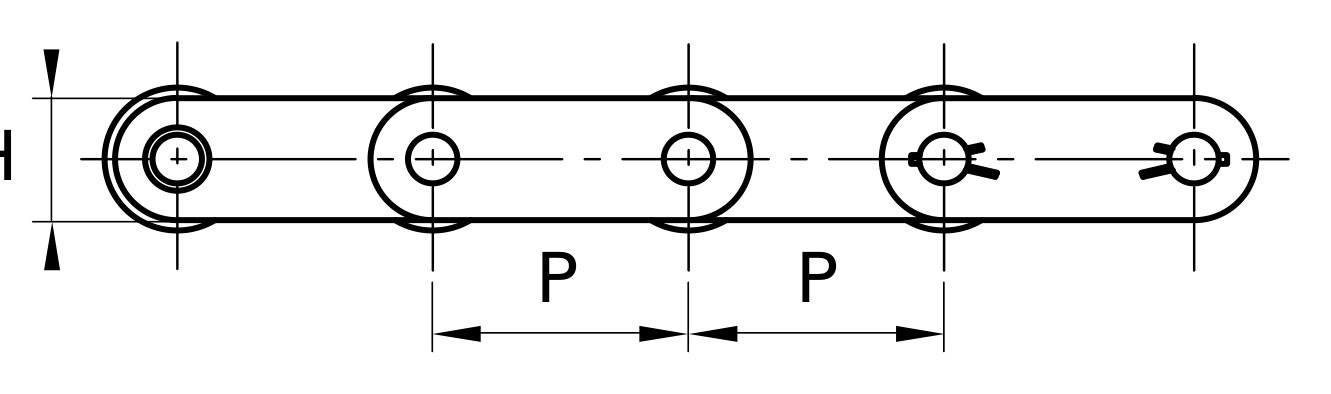

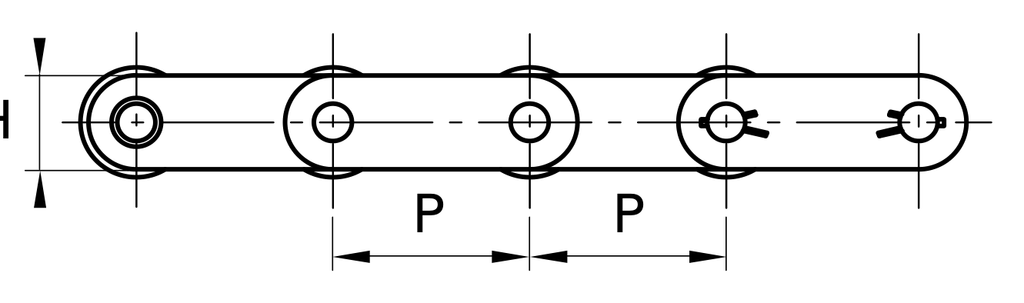

| Code | Item | P | L | D2 | D5 | D6 | H | S | F1 | F2 | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
74507030 |
Chain
|
100 mm
|
22 mm
|
40 mm
|
17 mm
|
12 mm
|
35 mm
|
4 mm
|
44 mm
|
25 mm
|
75 kN
|
4.9 kg/m
|
74507035 |
Coupling
|
— | — | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Series
1.1703- Chain Type
- CRT® transport chain — solid coupling pins
- Packaging
- Pack of 5 m
