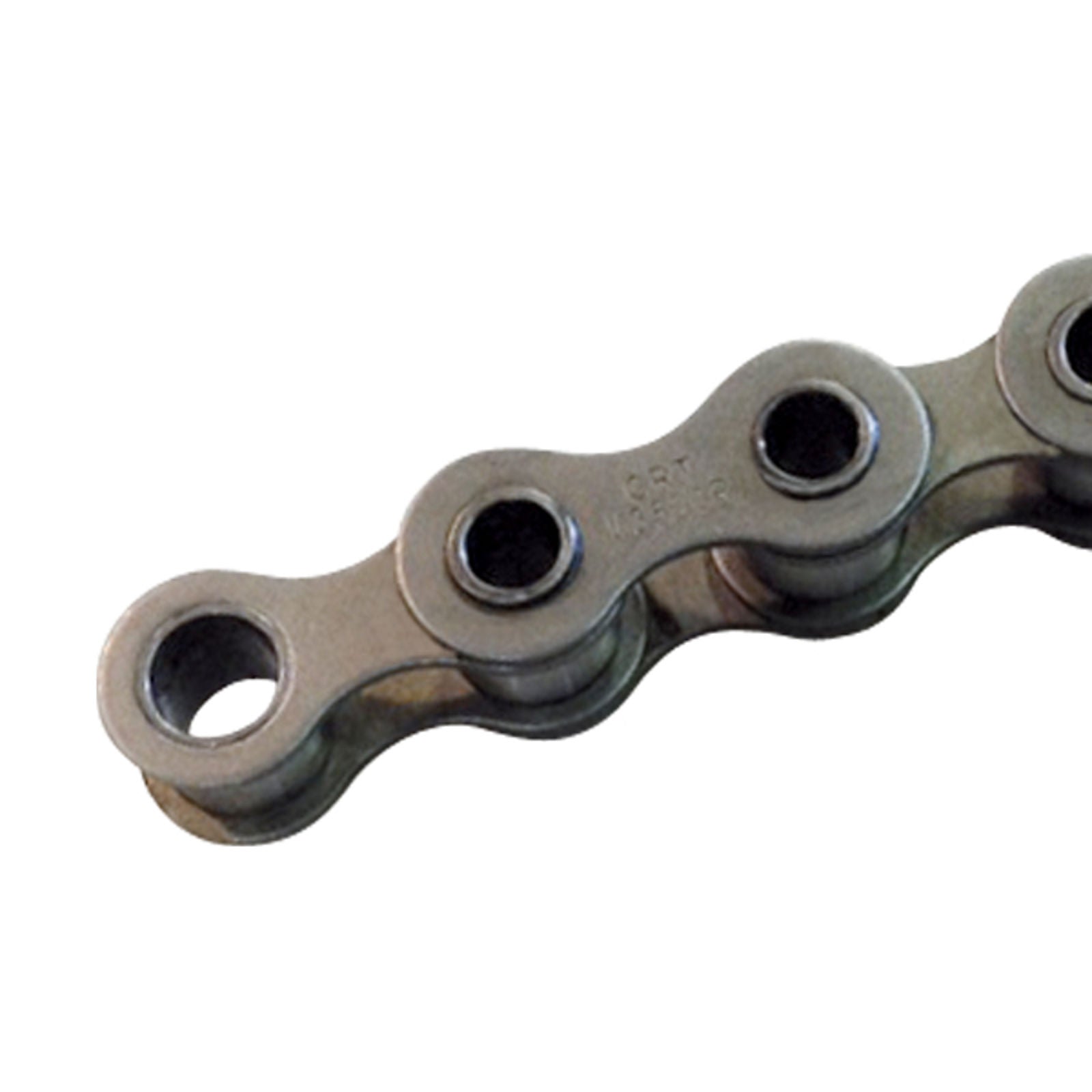

CRT Transport Chain 1.3520 R (Stud Pierced)
CRT® transport chain 1.3520 R — stud pierced, supplied as a 5 m pack. Chains manufactured by an ISO 9001 certified factory.
Product Configuration
Select a row to add it to your quote

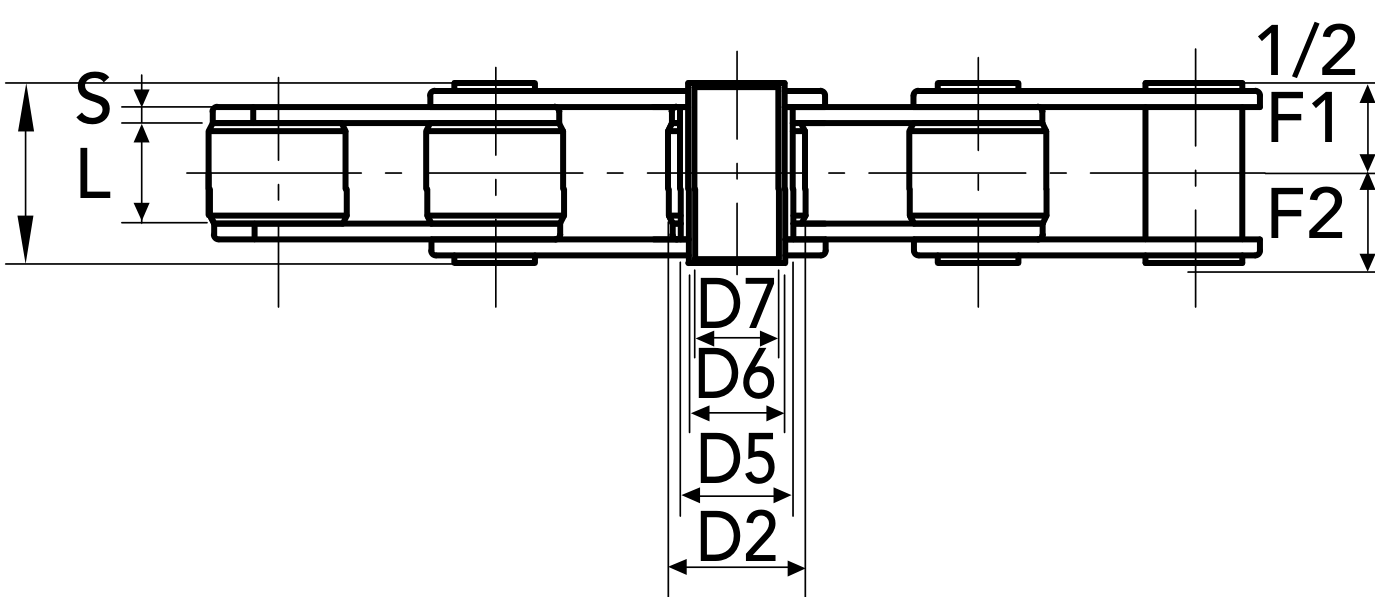

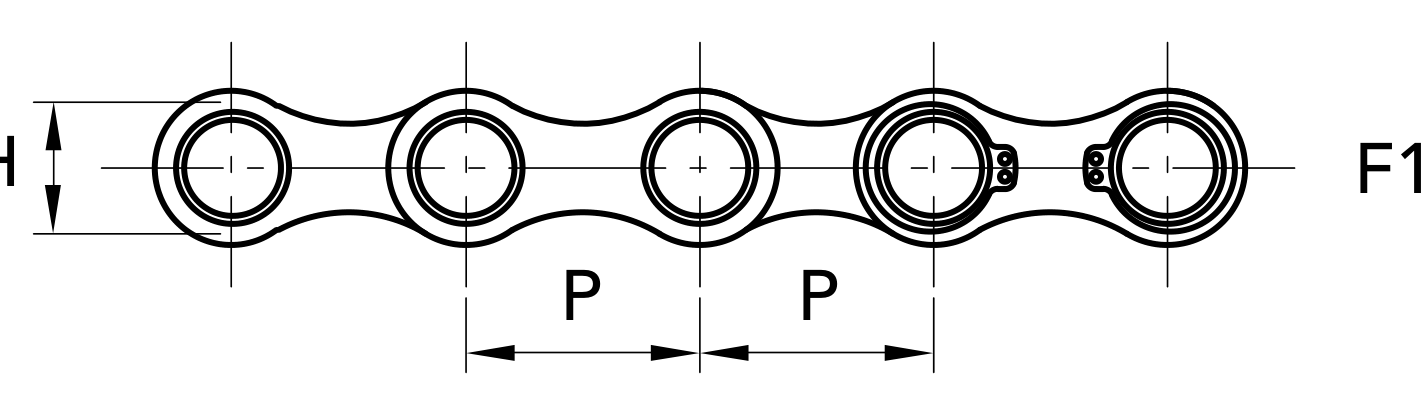

| Code | Item | P | L | D2 | D5 | D6 | D7 | H | S | F1 | F2 | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
74605200 |
Chain
|
35 mm
|
16 mm
|
20 mm
|
17 mm
|
14 mm
|
10.2 mm
|
26 mm
|
2.5 mm
|
30 mm
|
16.7 mm
|
25 kN
|
2.2 kg/m
|
74605205 |
Coupling
|
— | — | — | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Series
1.3520 R- Chain Type
- CRT® transport chain — stud pierced
- Packaging
- Pack of 5 m
