Chiaravalli
CRT Transport Chain 1.3521 Z (Galvanized Pins & Projections)
CRT® transport chain 1.3521 Z — galvanized pins & projections, supplied as a 5 m pack. Chains manufactured by an ISO 9001 certified factory.
Product Configuration
Select a row to add it to your quote

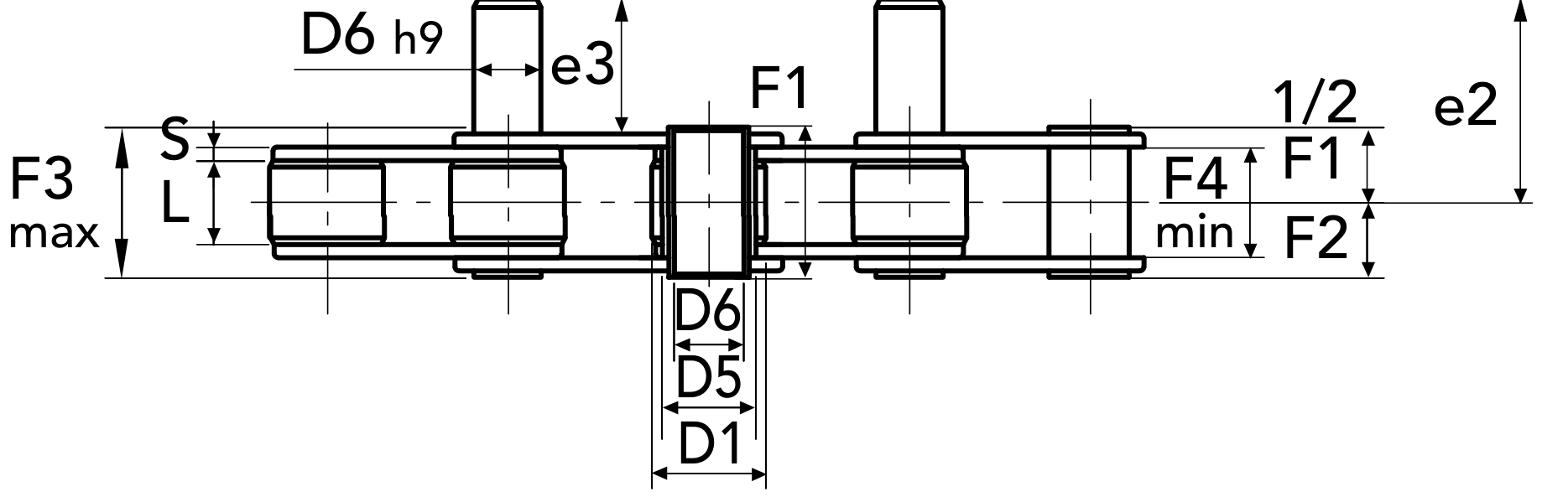

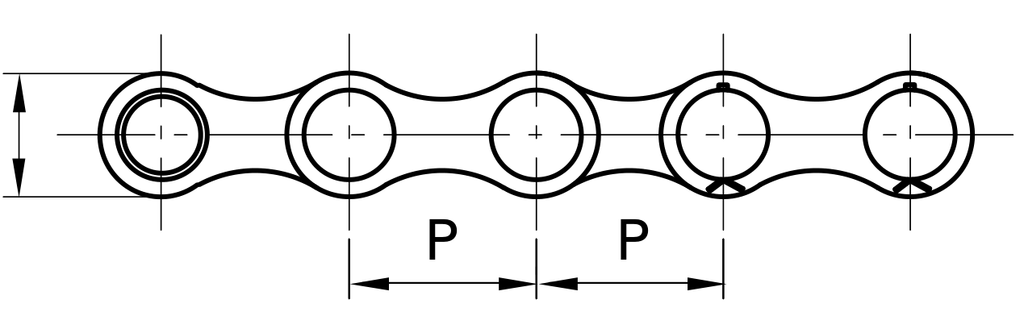

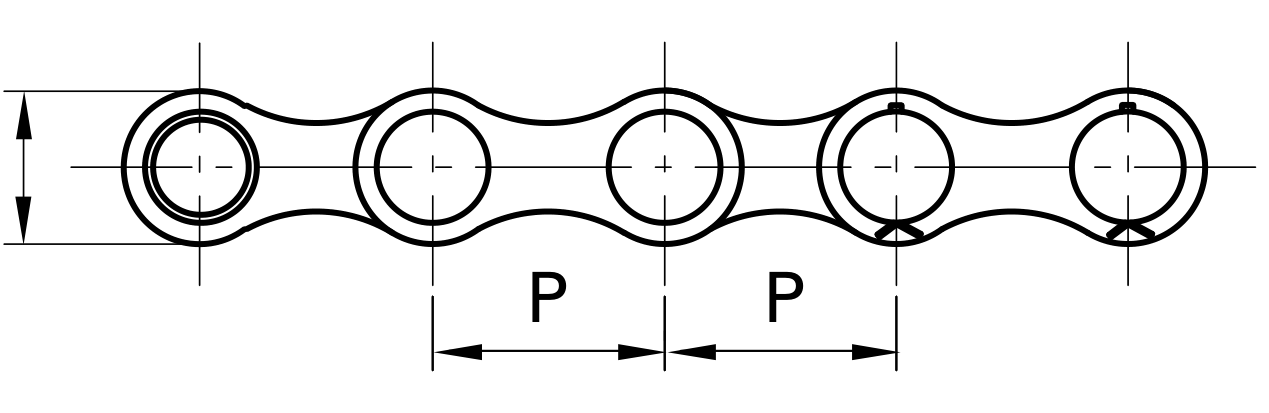

| Code | Item | P | L | d1 | D5 | D6 | e2 | H | S | F1 | F2 | e3 | F3 max | F4 min | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
74615210 |
Chain
|
35 mm
|
16 mm
|
20 mm
|
13 mm
|
10 mm
|
48.5 mm
|
26 mm
|
2.5 mm
|
31 mm
|
19 mm
|
35 mm
|
21 mm
|
21.5 mm
|
35 kN
|
2.8 kg/m
|
74615215 |
Coupling
|
— | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Series
1.3521 Z- Chain Type
- CRT® transport chain — galvanized pins & projections
- Packaging
- Pack of 5 m
