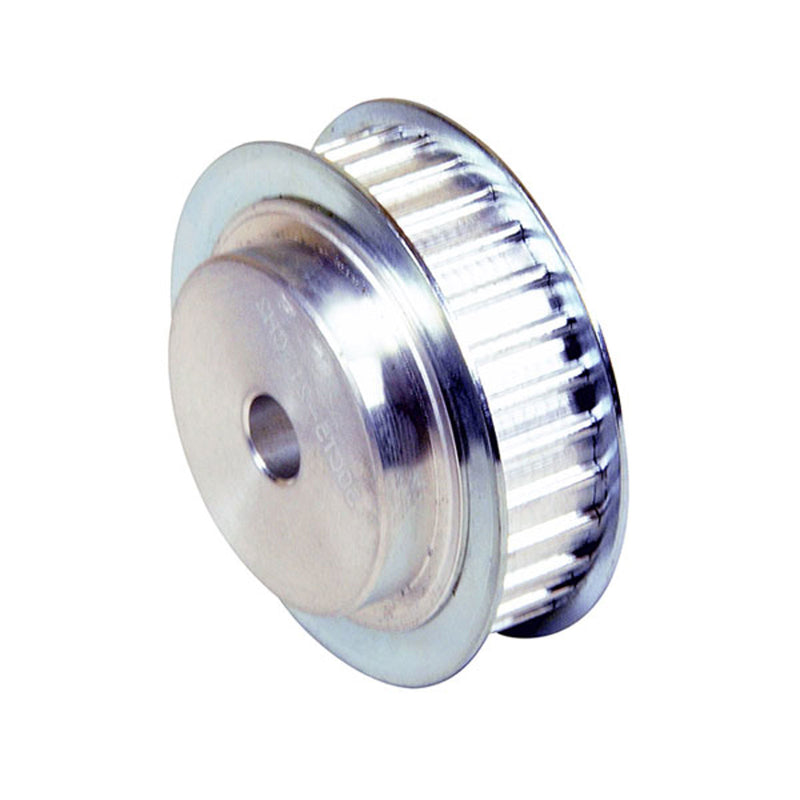

Chiaravalli CT Metric Timing Pulley 21 CT 5 (5 mm pitch, 10 mm belt) — product photo
Chiaravalli

CT Metric Timing Pulley 21 CT 5 (5 mm pitch, 10 mm belt)

Timing Pulleys

21 CT 5 metric timing pulley (CT5 profile, 5 mm pitch, for 10 mm belt width) with pilot bore, teeth Z 12–60, in aluminium.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.DpDeDf flangeDm hubFLØ bore d Weight CAD
46052112 12 1F 19.1 mm 17.85 mm 23 mm 11 mm 15 mm 21 mm — 0.01 kg
46052114 14 1F 22.29 mm 21.05 mm 25 mm 13 mm 15 mm 21 mm — 0.02 kg
46052115 15 1F 23.88 mm 22.65 mm 28 mm 16 mm 15 mm 21 mm 6 mm 0.02 kg
46052116 16 1F 25.47 mm 24.2 mm 32 mm 18 mm 15 mm 21 mm 6 mm 0.03 kg
46052118 18 1F 28.65 mm 27.4 mm 32 mm 20 mm 15 mm 21 mm 6 mm 0.03 kg
46052119 19 1F 30.25 mm 29 mm 36 mm 22 mm 15 mm 21 mm 6 mm 0.04 kg
46052120 20 1F 31.83 mm 30.6 mm 36 mm 23 mm 15 mm 21 mm 6 mm 0.04 kg
46052122 22 1F 35.02 mm 33.85 mm 38 mm 24 mm 15 mm 21 mm 6 mm 0.05 kg
46052124 24 1F 38.21 mm 37 mm 42 mm 26 mm 15 mm 21 mm 6 mm 0.06 kg
46052125 25 1F 39.8 mm 38.6 mm 44 mm 26 mm 15 mm 21 mm 6 mm 0.06 kg
46052126 26 1F 41.39 mm 40.2 mm 44 mm 26 mm 15 mm 21 mm 6 mm 0.06 kg
46052127 27 1F 42.98 mm 41.8 mm 48 mm 30 mm 15 mm 21 mm 8 mm 0.07 kg
46052128 28 1F 44.58 mm 43.35 mm 48 mm 32 mm 15 mm 21 mm 8 mm 0.07 kg
46052130 30 1F 47.76 mm 46.55 mm 51 mm 34 mm 15 mm 21 mm 8 mm 0.07 kg
46052132 32 1F 50.94 mm 49.7 mm 54 mm 38 mm 15 mm 21 mm 8 mm 0.09 kg
46052136 36 1F 57.31 mm 56.05 mm 64 mm 38 mm 15 mm 21 mm 8 mm 0.11 kg
46052140 40 1F 63.66 mm 62.45 mm 66.5 mm 40 mm 15 mm 21 mm 8 mm 0.14 kg
46052142 42 1F 66.86 mm 65.6 mm 70 mm 40 mm 15 mm 21 mm 8 mm 0.18 kg
46052144 44 2 70.05 mm 68.8 mm — 45 mm 15 mm 21 mm 8 mm 0.18 kg
46052148 48 2 76.42 mm 75.15 mm — 50 mm 15 mm 21 mm 8 mm 0.2 kg
46052160 60 2 95.52 mm 94.25 mm — 65 mm 15 mm 21 mm 8 mm 0.31 kg

Product Information

Material
Aluminium
Pitch
5.0 mm
