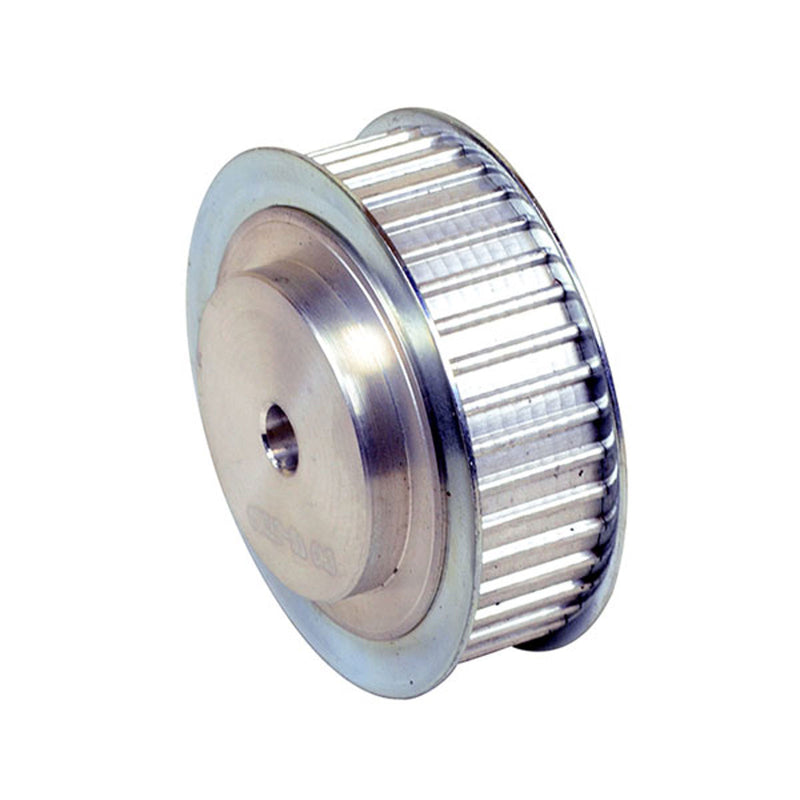

Chiaravalli CT Metric Timing Pulley 27 CT 5 (5 mm pitch, 16 mm belt) — product photo
Chiaravalli

CT Metric Timing Pulley 27 CT 5 (5 mm pitch, 16 mm belt)

Timing Pulleys

27 CT 5 metric timing pulley (CT5 profile, 5 mm pitch, for 16 mm belt width) with pilot bore, teeth Z 12–60, in aluminium.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.DpDeDf flangeDm hubFLØ bore d Weight CAD
46052712 12 1F 19.1 mm 17.85 mm 23 mm 11 mm 21 mm 27 mm — 0.02 kg
46052714 14 1F 22.29 mm 21.05 mm 25 mm 13 mm 21 mm 27 mm — 0.03 kg
46052715 15 1F 23.88 mm 22.65 mm 28 mm 16 mm 21 mm 27 mm 6 mm 0.03 kg
46052716 16 1F 25.47 mm 24.2 mm 32 mm 18 mm 21 mm 27 mm 6 mm 0.04 kg
46052718 18 1F 28.65 mm 27.4 mm 32 mm 20 mm 21 mm 27 mm 6 mm 0.04 kg
46052719 19 1F 30.25 mm 29 mm 36 mm 22 mm 21 mm 27 mm 6 mm 0.05 kg
46052720 20 1F 31.83 mm 30.6 mm 36 mm 23 mm 21 mm 27 mm 6 mm 0.06 kg
46052722 22 1F 35.02 mm 33.85 mm 38 mm 24 mm 21 mm 27 mm 6 mm 0.06 kg
46052724 24 1F 38.21 mm 37 mm 42 mm 26 mm 21 mm 27 mm 6 mm 0.08 kg
46052725 25 1F 39.8 mm 38.6 mm 44 mm 26 mm 21 mm 27 mm 6 mm 0.08 kg
46052726 26 1F 41.39 mm 40.2 mm 44 mm 26 mm 21 mm 27 mm 6 mm 0.09 kg
46052727 27 1F 42.98 mm 41.8 mm 48 mm 30 mm 21 mm 27 mm 8 mm 0.09 kg
46052728 28 1F 44.58 mm 43.35 mm 48 mm 32 mm 21 mm 27 mm 8 mm 0.09 kg
46052730 30 1F 47.76 mm 46.55 mm 51 mm 34 mm 21 mm 27 mm 8 mm 0.1 kg
46052732 32 1F 50.94 mm 49.7 mm 54 mm 38 mm 21 mm 27 mm 8 mm 0.12 kg
46052736 36 1F 57.31 mm 56.05 mm 64 mm 38 mm 21 mm 27 mm 8 mm 0.16 kg
46052740 40 1F 63.66 mm 62.45 mm 66.5 mm 40 mm 21 mm 27 mm 8 mm 0.19 kg
46052742 42 1F 66.86 mm 65.6 mm 70 mm 40 mm 21 mm 27 mm 8 mm 0.2 kg
46052744 44 2 70.05 mm 68.8 mm — 45 mm 21 mm 27 mm 8 mm 0.23 kg
46052748 48 2 76.42 mm 75.15 mm — 50 mm 21 mm 27 mm 8 mm 0.28 kg
46052760 60 2 95.52 mm 94.25 mm — 65 mm 21 mm 27 mm 8 mm 0.43 kg

Product Information

Material
Aluminium
Pitch
5.0 mm
