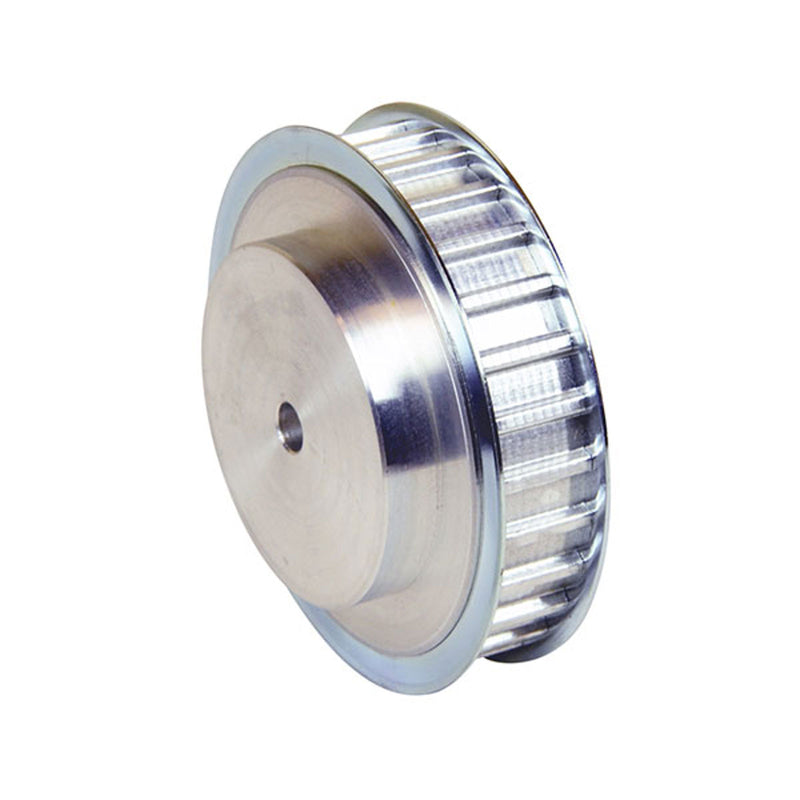

Chiaravalli CT Metric Timing Pulley 31 CT10 (10 mm pitch, 16 mm belt) — product photo
Chiaravalli

CT Metric Timing Pulley 31 CT10 (10 mm pitch, 16 mm belt)

Timing Pulleys

31 CT10 metric timing pulley (CT10 profile, 10 mm pitch, for 16 mm belt width) with pilot bore, teeth Z 15–60, in aluminium.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.DpDeDf flangeDm hubFLØ bore d Weight CAD
46103115 15 1F 47.75 mm 45.9 mm 51 mm 32 mm 21 mm 31 mm 8 mm 0.12 kg
46103116 16 1F 50.93 mm 49.05 mm 54 mm 35 mm 21 mm 31 mm 8 mm 0.13 kg
46103118 18 1F 57.29 mm 55.45 mm 60 mm 40 mm 21 mm 31 mm 8 mm 0.17 kg
46103119 19 1F 60.48 mm 58.6 mm 66.5 mm 44 mm 21 mm 31 mm 8 mm 0.18 kg
46103120 20 1F 63.66 mm 61.8 mm 66.5 mm 46 mm 21 mm 31 mm 8 mm 0.21 kg
46103122 22 1F 70.03 mm 68.15 mm 75 mm 52 mm 21 mm 31 mm 8 mm 0.25 kg
46103124 24 1F 76.39 mm 74.55 mm 83 mm 58 mm 21 mm 31 mm 8 mm 0.29 kg
46103125 25 1F 79.58 mm 77.7 mm 83 mm 60 mm 21 mm 31 mm 8 mm 0.31 kg
46103126 26 1F 82.76 mm 80.9 mm 87 mm 60 mm 21 mm 31 mm 8 mm 0.36 kg
46103127 27 1F 85.95 mm 84.1 mm 91 mm 60 mm 21 mm 31 mm 8 mm 0.37 kg
46103128 28 1F 89.12 mm 87.25 mm 93 mm 60 mm 21 mm 31 mm 8 mm 0.4 kg
46103130 30 1F 95.49 mm 93.65 mm 97 mm 60 mm 21 mm 31 mm 8 mm 0.44 kg
46103132 32 1F 101.86 mm 100 mm 106 mm 65 mm 21 mm 31 mm 10 mm 0.49 kg
46103136 36 1F 114.59 mm 112.75 mm 119 mm 70 mm 21 mm 31 mm 10 mm 0.62 kg
46103140 40 1F 127.32 mm 125.45 mm 131 mm 80 mm 21 mm 31 mm 10 mm 0.77 kg
46103144 44 2 140.05 mm 138.2 mm — 88 mm 21 mm 31 mm 10 mm 1.0 kg
46103148 48 2 152.78 mm 150.95 mm — 95 mm 21 mm 31 mm 16 mm 1.1 kg
46103160 60 2 190.98 mm 189.1 mm — 110 mm 21 mm 31 mm 16 mm 1.7 kg

Product Information

Material
Aluminium
Pitch
10.0 mm
