Chiaravalli CT Metric Timing Pulley 36 CT 5 (5 mm pitch, 25 mm belt) — product photo
Chiaravalli

CT Metric Timing Pulley 36 CT 5 (5 mm pitch, 25 mm belt)

Timing Pulleys

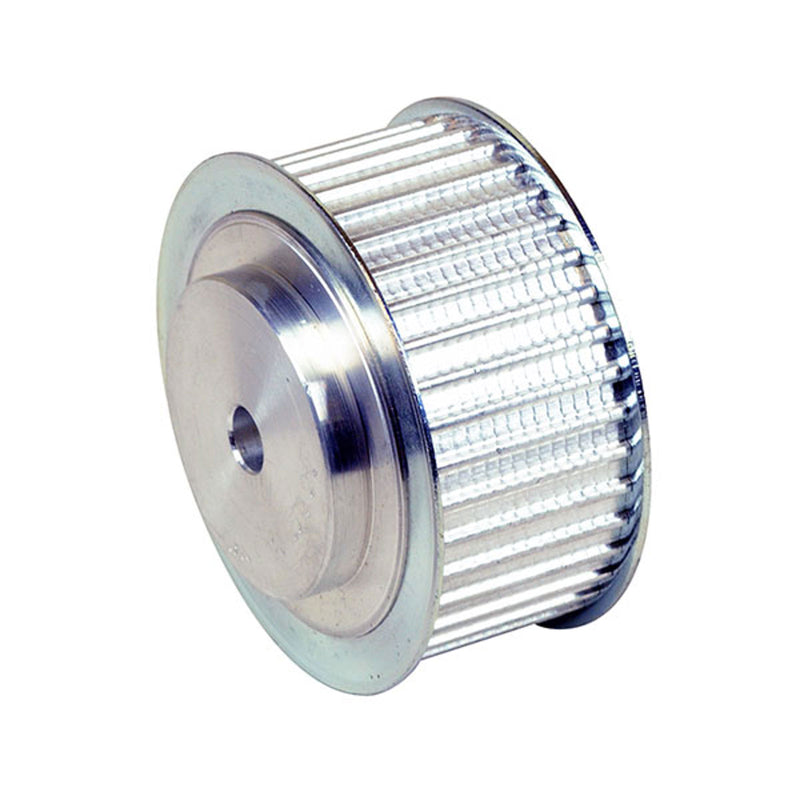

36 CT 5 metric timing pulley (CT5 profile, 5 mm pitch, for 25 mm belt width) with pilot bore, teeth Z 12–60, in aluminium.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.DpDeDf flangeDm hubFLØ bore d Weight CAD
46053612 12 1F 19.1 mm 17.85 mm 23 mm 11 mm 30 mm 36 mm — 0.03 kg
46053614 14 1F 22.29 mm 21.05 mm 25 mm 13 mm 30 mm 36 mm — 0.04 kg
46053615 15 1F 23.88 mm 22.65 mm 28 mm 16 mm 30 mm 36 mm 6 mm 0.04 kg
46053616 16 1F 25.47 mm 24.2 mm 32 mm 18 mm 30 mm 36 mm 6 mm 0.05 kg
46053618 18 1F 28.65 mm 27.4 mm 32 mm 20 mm 30 mm 36 mm 6 mm 0.06 kg
46053619 19 1F 30.25 mm 29 mm 36 mm 22 mm 30 mm 36 mm 6 mm 0.07 kg
46053620 20 1F 31.83 mm 30.6 mm 36 mm 23 mm 30 mm 36 mm 6 mm 0.08 kg
46053622 22 1F 35.02 mm 33.85 mm 38 mm 24 mm 30 mm 36 mm 6 mm 0.08 kg
46053624 24 1F 38.21 mm 37 mm 42 mm 26 mm 30 mm 36 mm 6 mm 0.11 kg
46053625 25 1F 39.8 mm 38.6 mm 44 mm 26 mm 30 mm 36 mm 6 mm 0.12 kg
46053626 26 1F 41.39 mm 40.2 mm 44 mm 26 mm 30 mm 36 mm 6 mm 0.12 kg
46053627 27 1F 42.98 mm 41.8 mm 48 mm 30 mm 30 mm 36 mm 8 mm 0.13 kg
46053628 28 1F 44.58 mm 43.35 mm 48 mm 32 mm 30 mm 36 mm 8 mm 0.14 kg
46053630 30 1F 47.76 mm 46.55 mm 51 mm 34 mm 30 mm 36 mm 8 mm 0.15 kg
46053632 32 1F 50.94 mm 49.7 mm 54 mm 38 mm 30 mm 36 mm 8 mm 0.18 kg
46053636 36 1F 57.31 mm 56.05 mm 64 mm 38 mm 30 mm 36 mm 8 mm 0.23 kg
46053640 40 1F 63.66 mm 62.45 mm 66.5 mm 40 mm 30 mm 36 mm 8 mm 0.28 kg
46053642 42 1F 66.86 mm 65.6 mm 70 mm 40 mm 30 mm 36 mm 8 mm 0.29 kg
46053644 44 2 70.05 mm 68.8 mm — 45 mm 30 mm 36 mm 8 mm 0.31 kg
46053648 48 2 76.42 mm 75.15 mm — 50 mm 30 mm 36 mm 8 mm 0.4 kg
46053660 60 2 95.52 mm 94.25 mm — 65 mm 30 mm 36 mm 8 mm 0.61 kg

Product Information

Material
Aluminium
Pitch
5.0 mm

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
