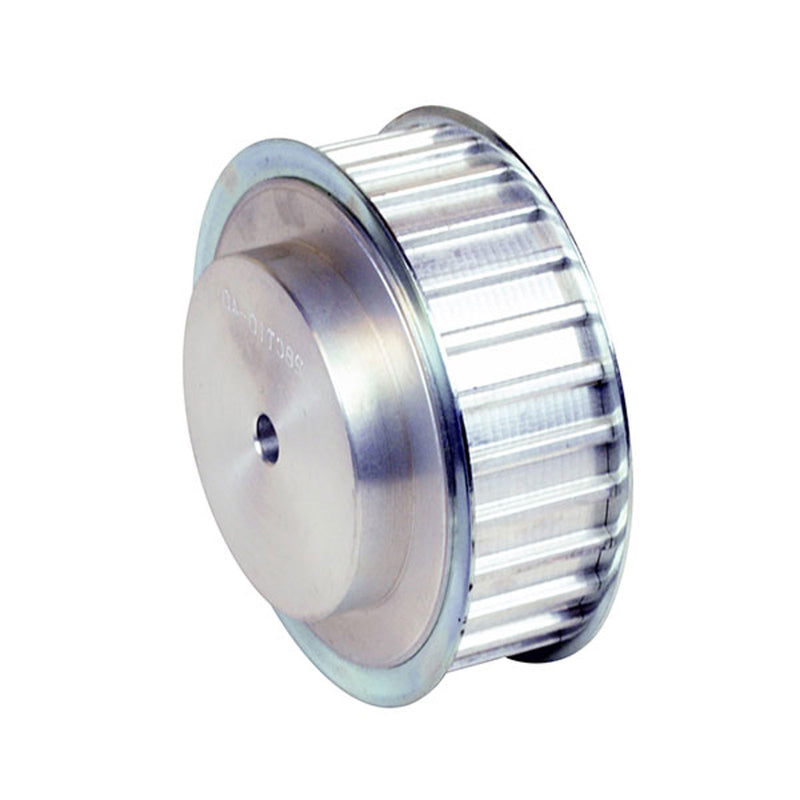

Chiaravalli CT Metric Timing Pulley 40 CT10 (10 mm pitch, 25 mm belt) — product photo
Chiaravalli

CT Metric Timing Pulley 40 CT10 (10 mm pitch, 25 mm belt)

Timing Pulleys

40 CT10 metric timing pulley (CT10 profile, 10 mm pitch, for 25 mm belt width) with pilot bore, teeth Z 15–60, in aluminium.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.DpDeDf flangeDm hubFLØ bore d Weight CAD
46104015 15 1F 47.75 mm 45.9 mm 51 mm 32 mm 30 mm 40 mm 8 mm 0.15 kg
46104016 16 1F 50.93 mm 49.05 mm 54 mm 35 mm 30 mm 40 mm 8 mm 0.18 kg
46104018 18 1F 57.29 mm 55.45 mm 60 mm 40 mm 30 mm 40 mm 8 mm 0.22 kg
46104019 19 1F 60.48 mm 58.6 mm 66.5 mm 44 mm 30 mm 40 mm 8 mm 0.25 kg
46104020 20 1F 63.66 mm 61.8 mm 66.5 mm 46 mm 30 mm 40 mm 8 mm 0.28 kg
46104022 22 1F 70.03 mm 68.15 mm 75 mm 52 mm 30 mm 40 mm 8 mm 0.34 kg
46104024 24 1F 76.39 mm 74.55 mm 83 mm 58 mm 30 mm 40 mm 8 mm 0.39 kg
46104025 25 1F 79.58 mm 77.7 mm 83 mm 60 mm 30 mm 40 mm 8 mm 0.42 kg
46104026 26 1F 82.76 mm 80.9 mm 87 mm 60 mm 30 mm 40 mm 8 mm 0.48 kg
46104027 27 1F 85.95 mm 84.1 mm 91 mm 60 mm 30 mm 40 mm 8 mm 0.54 kg
46104028 28 1F 89.12 mm 87.25 mm 93 mm 60 mm 30 mm 40 mm 8 mm 0.55 kg
46104030 30 1F 95.49 mm 93.65 mm 97 mm 60 mm 30 mm 40 mm 8 mm 0.64 kg
46104032 32 1F 101.86 mm 100 mm 106 mm 65 mm 30 mm 40 mm 10 mm 0.69 kg
46104036 36 1F 114.59 mm 112.75 mm 119 mm 70 mm 30 mm 40 mm 10 mm 0.87 kg
46104040 40 1F 127.32 mm 125.45 mm 131 mm 80 mm 30 mm 40 mm 10 mm 1.07 kg
46104044 44 2 140.05 mm 138.2 mm — 88 mm 30 mm 40 mm 10 mm 1.35 kg
46104048 48 2 152.78 mm 150.95 mm — 95 mm 30 mm 40 mm 16 mm 1.52 kg
46104060 60 2 190.98 mm 189.1 mm — 110 mm 30 mm 40 mm 16 mm 2.34 kg

Product Information

Material
Aluminium
Pitch
10.0 mm
