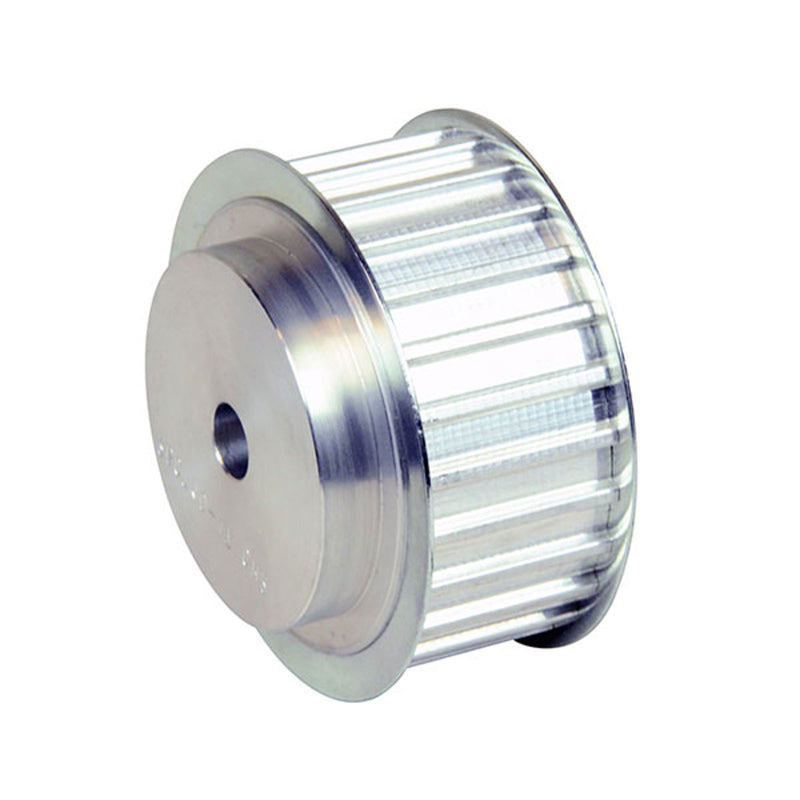

Chiaravalli CT Metric Timing Pulley 47 CT10 (10 mm pitch, 32 mm belt) — product photo
Chiaravalli

CT Metric Timing Pulley 47 CT10 (10 mm pitch, 32 mm belt)

Timing Pulleys

47 CT10 metric timing pulley (CT10 profile, 10 mm pitch, for 32 mm belt width) with pilot bore, teeth Z 18–60, in aluminium.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.DpDeDf flangeDm hubFLØ bore d Weight CAD
46104718 18 1F 57.29 mm 55.45 mm 60 mm 40 mm 37 mm 47 mm 10 mm 0.25 kg
46104719 19 1F 60.48 mm 58.6 mm 66.5 mm 44 mm 37 mm 47 mm 10 mm 0.29 kg
46104720 20 1F 63.66 mm 61.8 mm 66.5 mm 46 mm 37 mm 47 mm 12 mm 0.32 kg
46104722 22 1F 70.03 mm 68.15 mm 75 mm 52 mm 37 mm 47 mm 12 mm 0.39 kg
46104724 24 1F 76.39 mm 74.55 mm 83 mm 58 mm 37 mm 47 mm 12 mm 0.47 kg
46104725 25 1F 79.58 mm 77.7 mm 83 mm 60 mm 37 mm 47 mm 12 mm 0.53 kg
46104726 26 1F 82.76 mm 80.9 mm 87 mm 60 mm 37 mm 47 mm 12 mm 0.56 kg
46104727 27 1F 85.95 mm 84.1 mm 91 mm 60 mm 37 mm 47 mm 12 mm 0.6 kg
46104728 28 1F 89.12 mm 87.25 mm 93 mm 60 mm 37 mm 47 mm 12 mm 0.64 kg
46104730 30 1F 95.49 mm 93.65 mm 97 mm 60 mm 37 mm 47 mm 12 mm 0.74 kg
46104732 32 1F 101.86 mm 100 mm 106 mm 65 mm 37 mm 47 mm 12 mm 0.84 kg
46104736 36 1F 114.59 mm 112.75 mm 119 mm 70 mm 37 mm 47 mm 16 mm 1.06 kg
46104740 40 1F 127.32 mm 125.45 mm 131 mm 80 mm 37 mm 47 mm 16 mm 1.32 kg
46104744 44 2 140.05 mm 138.2 mm — 88 mm 37 mm 47 mm 16 mm 1.61 kg
46104748 48 2 152.78 mm 150.95 mm — 95 mm 37 mm 47 mm 16 mm 1.93 kg
46104760 60 2 190.98 mm 189.1 mm — 110 mm 37 mm 47 mm 16 mm 3.0 kg

Product Information

Material
Aluminium
Pitch
10.0 mm
