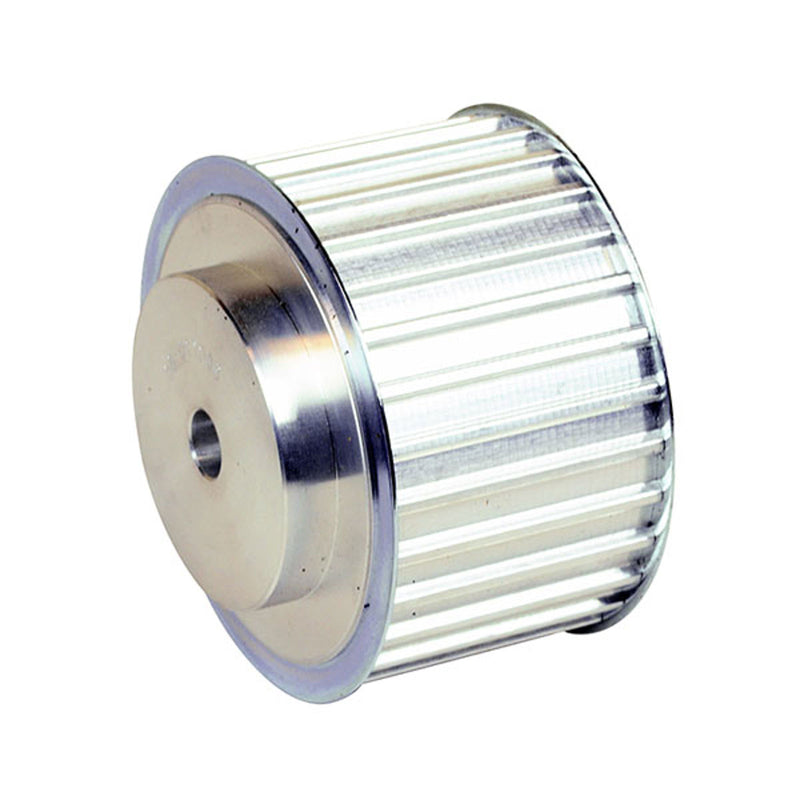

Chiaravalli CT Metric Timing Pulley 66 CT10 (10 mm pitch, 50 mm belt) — product photo
Chiaravalli

CT Metric Timing Pulley 66 CT10 (10 mm pitch, 50 mm belt)

Timing Pulleys

66 CT10 metric timing pulley (CT10 profile, 10 mm pitch, for 50 mm belt width) with pilot bore, teeth Z 18–60, in aluminium.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.DpDeDf flangeDm hubFLØ bore d Weight CAD
46106618 18 1F 57.29 mm 55.45 mm 60 mm 40 mm 56 mm 66 mm 10 mm 0.42 kg
46106619 19 1F 60.48 mm 58.6 mm 66.5 mm 44 mm 56 mm 66 mm 10 mm 0.47 kg
46106620 20 1F 63.66 mm 61.8 mm 66.5 mm 46 mm 56 mm 66 mm 12 mm 0.52 kg
46106622 22 1F 70.03 mm 68.15 mm 75 mm 52 mm 56 mm 66 mm 12 mm 0.57 kg
46106624 24 1F 76.39 mm 74.55 mm 83 mm 58 mm 56 mm 66 mm 12 mm 0.74 kg
46106625 25 1F 79.58 mm 77.7 mm 83 mm 60 mm 56 mm 66 mm 12 mm 0.77 kg
46106626 26 1F 82.76 mm 80.9 mm 87 mm 60 mm 56 mm 66 mm 12 mm 0.82 kg
46106627 27 1F 85.95 mm 84.1 mm 91 mm 60 mm 56 mm 66 mm 12 mm 0.95 kg
46106628 28 1F 89.12 mm 87.25 mm 93 mm 60 mm 56 mm 66 mm 12 mm 0.96 kg
46106630 30 1F 95.49 mm 93.65 mm 97 mm 60 mm 56 mm 66 mm 12 mm 1.17 kg
46106632 32 1F 101.86 mm 100 mm 106 mm 65 mm 56 mm 66 mm 12 mm 1.3 kg
46106636 36 1F 114.59 mm 112.75 mm 119 mm 70 mm 56 mm 66 mm 16 mm 1.64 kg
46106640 40 1F 127.32 mm 125.45 mm 131 mm 80 mm 56 mm 66 mm 16 mm 2.0 kg
46106644 44 2 140.05 mm 138.2 mm — 88 mm 56 mm 66 mm 16 mm 2.36 kg
46106648 48 2 152.78 mm 150.95 mm — 95 mm 56 mm 66 mm 16 mm 2.83 kg
46106660 60 2 190.98 mm 189.1 mm — 110 mm 56 mm 66 mm 16 mm 4.37 kg

Product Information

Material
Aluminium
Pitch
10.0 mm
