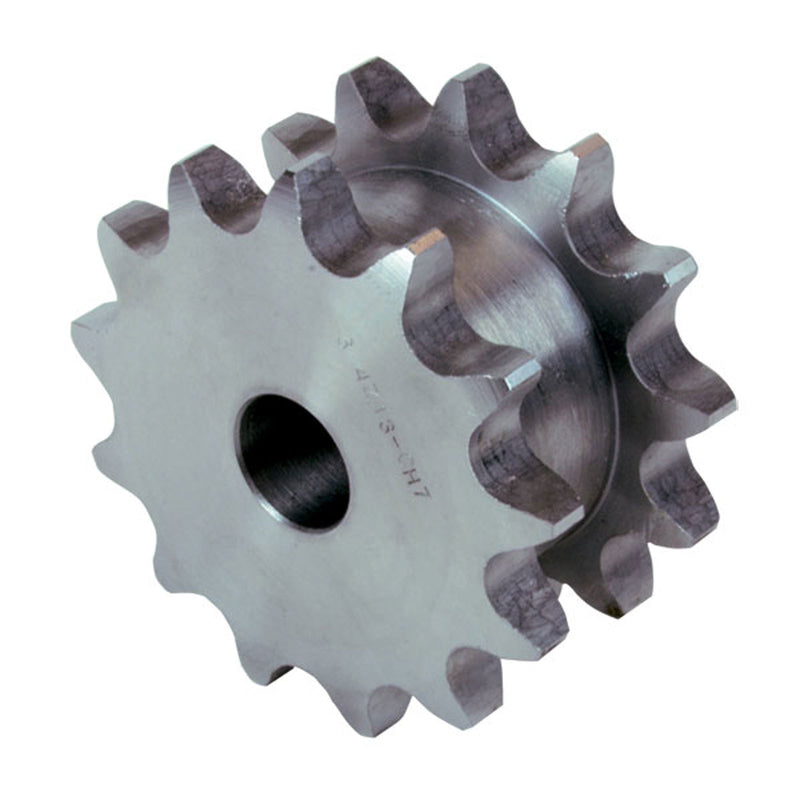

Duplex Platewheel for Two Simplex Chains 06B-1 (3/8” × 7/32”)

Name: Chiaravalli Duplex Platewheel for Two Simplex Chains 06B-1 (3/8” × 7/32”)
Brand: Chiaravalli

Duplex platewheel for two 06B-1 (3/8” × 7/32”) simplex roller chains running side by side.

Select a row to add it to your quote

Teeth

Code	Z	de	dp	d	A	B h14	C max	L	r	Weight
`23209013`	`13`	`43.45` mm	`39.8` mm	`10` mm	`20.3` mm	`5.3` mm	`28` mm	`25.5` mm	`0.4` mm	`0.14` kg
`23209015`	`15`	`49.46` mm	`45.81` mm	`10` mm	`20.3` mm	`5.3` mm	`34` mm	`25.5` mm	`0.4` mm	`0.2` kg
`23209017`	`17`	`55.49` mm	`51.84` mm	`12` mm	`20.3` mm	`5.3` mm	`40` mm	`25.5` mm	`0.4` mm	`0.26` kg
`23209018`	`18`	`58.5` mm	`54.85` mm	`12` mm	`20.3` mm	`5.3` mm	`43` mm	`25.5` mm	`0.4` mm	`0.3` kg
`23209019`	`19`	`61.52` mm	`57.87` mm	`12` mm	`20.3` mm	`5.3` mm	`46` mm	`25.5` mm	`0.4` mm	`0.34` kg
`23209020`	`20`	`64.54` mm	`60.89` mm	`12` mm	`20.3` mm	`5.3` mm	`49` mm	`25.5` mm	`0.4` mm	`0.38` kg
`23209021`	`21`	`67.56` mm	`63.91` mm	`15` mm	`20.3` mm	`5.3` mm	`52` mm	`25.5` mm	`0.4` mm	`0.43` kg
`23209023`	`23`	`73.6` mm	`69.95` mm	`15` mm	`20.3` mm	`5.3` mm	`59` mm	`25.5` mm	`0.4` mm	`0.54` kg
`23209025`	`25`	`79.65` mm	`76` mm	`15` mm	`20.3` mm	`5.3` mm	`65` mm	`25.5` mm	`0.4` mm	`0.65` kg
