Chiaravalli

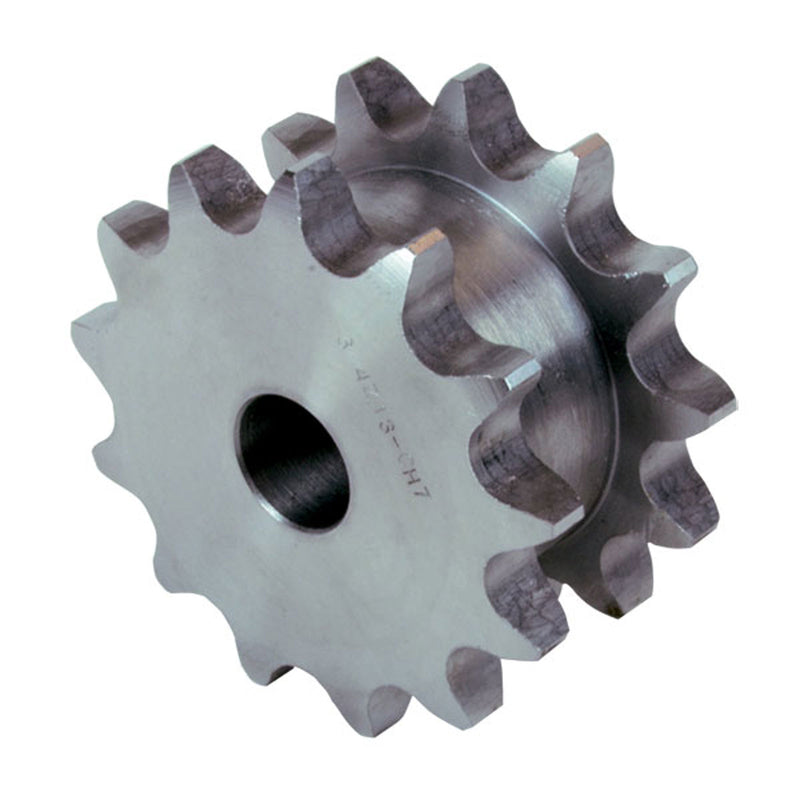

Duplex Platewheel for Two Simplex Chains 08B-1 (1/2” × 5/16”)

Name: Chiaravalli Duplex Platewheel for Two Simplex Chains 08B-1 (1/2” × 5/16”)
Brand: Chiaravalli

Duplex platewheel for two 08B-1 (1/2” × 5/16”) simplex roller chains running side by side.

Select a row to add it to your quote

Teeth

Code	Z	de	dp	d	A	B h14	C max	L	r	Weight
`23212013`	`13`	`57.4` mm	`53.06` mm	`12` mm	`24.8` mm	`7.2` mm	`37` mm	`32` mm	`0.6` mm	`0.27` kg
`23212015`	`15`	`65.57` mm	`61.08` mm	`12` mm	`24.8` mm	`7.2` mm	`45` mm	`32` mm	`0.6` mm	`0.47` kg
`23212017`	`17`	`73.61` mm	`69.11` mm	`12` mm	`24.8` mm	`7.2` mm	`53` mm	`32` mm	`0.6` mm	`0.64` kg
`23212018`	`18`	`77.8` mm	`73.14` mm	`12` mm	`24.8` mm	`7.2` mm	`57` mm	`32` mm	`0.6` mm	`0.73` kg
`23212019`	`19`	`81.65` mm	`77.16` mm	`12` mm	`24.8` mm	`7.2` mm	`62` mm	`32` mm	`0.6` mm	`0.84` kg
`23212020`	`20`	`85.8` mm	`81.19` mm	`12` mm	`24.8` mm	`7.2` mm	`65` mm	`32` mm	`0.6` mm	`0.93` kg
`23212021`	`21`	`89.7` mm	`85.21` mm	`15` mm	`24.8` mm	`7.2` mm	`70` mm	`32` mm	`0.6` mm	`1.03` kg
`23212023`	`23`	`98.02` mm	`93.27` mm	`15` mm	`24.8` mm	`7.2` mm	`78` mm	`32` mm	`0.6` mm	`1.28` kg
`23212025`	`25`	`105.82` mm	`101.33` mm	`15` mm	`24.8` mm	`7.2` mm	`86` mm	`32` mm	`0.6` mm	`1.54` kg
