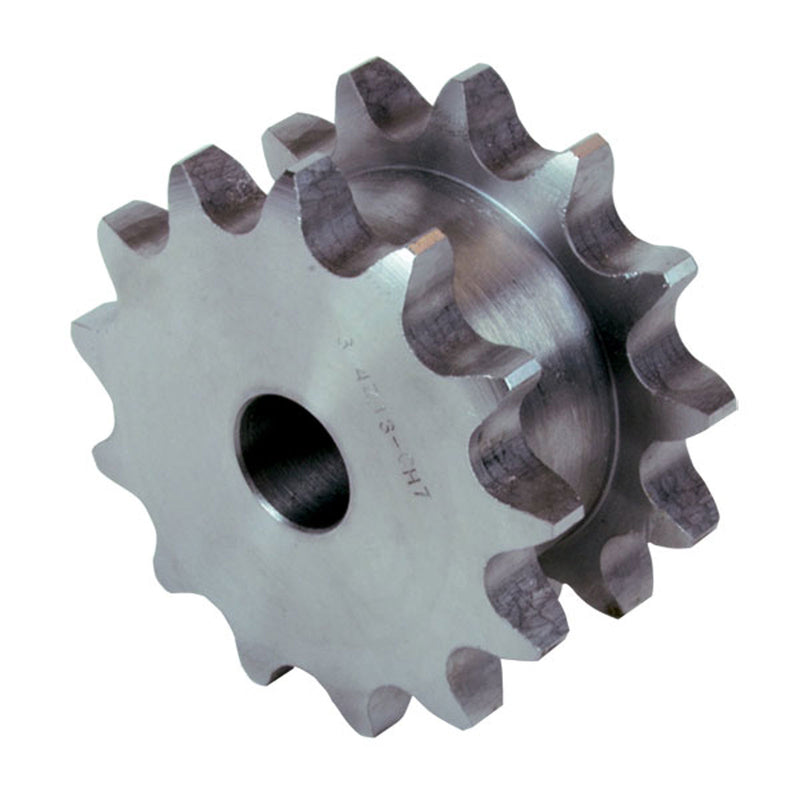

Duplex Platewheel for Two Simplex Chains 10B-1 (5/8” × 3/8”)

Name: Chiaravalli Duplex Platewheel for Two Simplex Chains 10B-1 (5/8” × 3/8”)
Brand: Chiaravalli

Duplex platewheel for two 10B-1 (5/8” × 3/8”) simplex roller chains running side by side.

Select a row to add it to your quote

Teeth

Code	Z	de	dp	d	A	B h14	C max	L	r	Weight
`23215013`	`13`	`73.17` mm	`66.33` mm	`15` mm	`27.9` mm	`9.1` mm	`48` mm	`37` mm	`0.6` mm	`0.62` kg
`23215015`	`15`	`83.19` mm	`76.35` mm	`15` mm	`27.9` mm	`9.1` mm	`58` mm	`37` mm	`0.6` mm	`0.87` kg
`23215017`	`17`	`93.23` mm	`86.39` mm	`15` mm	`27.9` mm	`9.1` mm	`68` mm	`37` mm	`0.6` mm	`1.17` kg
`23215018`	`18`	`93.26` mm	`91.42` mm	`15` mm	`27.9` mm	`9.1` mm	`72` mm	`37` mm	`0.6` mm	`1.34` kg
`23215019`	`19`	`103.29` mm	`96.45` mm	`15` mm	`27.9` mm	`9.1` mm	`79` mm	`37` mm	`0.6` mm	`1.49` kg
`23215020`	`20`	`108.4` mm	`101.49` mm	`19` mm	`27.9` mm	`9.1` mm	`82` mm	`37` mm	`0.6` mm	`1.68` kg
`23215021`	`21`	`113.35` mm	`106.51` mm	`19` mm	`27.9` mm	`9.1` mm	`89` mm	`37` mm	`0.6` mm	`1.88` kg
`23215023`	`23`	`123.43` mm	`116.59` mm	`19` mm	`27.9` mm	`9.1` mm	`99` mm	`37` mm	`0.6` mm	`2.3` kg
`23215025`	`25`	`133.5` mm	`126.66` mm	`19` mm	`27.9` mm	`9.1` mm	`109` mm	`37` mm	`0.6` mm	`2.77` kg
