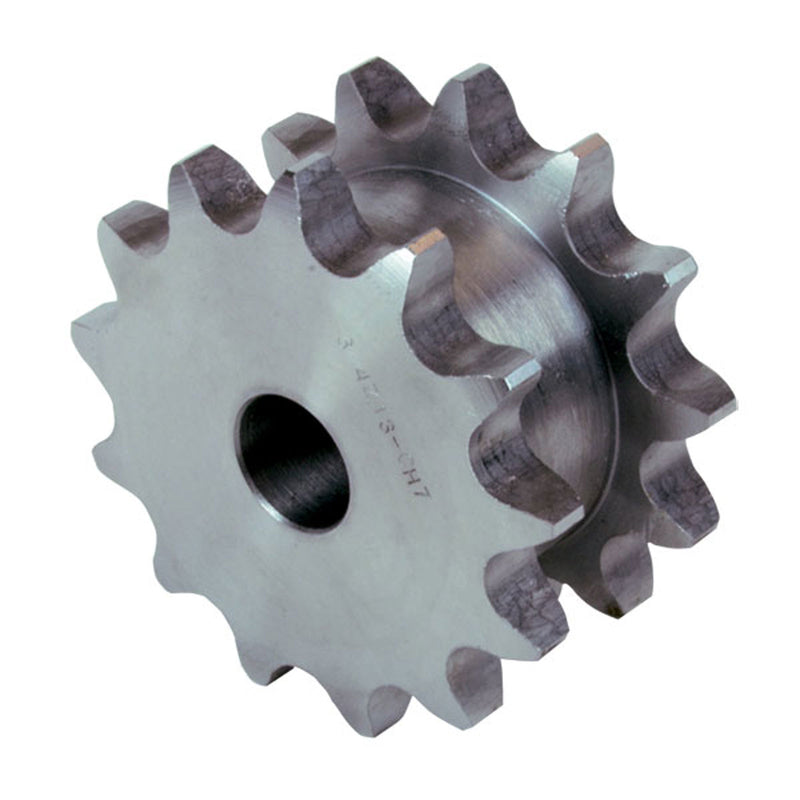

Duplex Platewheel for Two Simplex Chains 12B-1 (3/4” × 7/16”)

Name: Chiaravalli Duplex Platewheel for Two Simplex Chains 12B-1 (3/4” × 7/16”)
Brand: Chiaravalli

Duplex platewheel for two 12B-1 (3/4” × 7/16”) simplex roller chains running side by side.

Select a row to add it to your quote

Teeth

Code	Z	de	dp	d	A	B h14	C max	L	r	Weight
`23219013`	`13`	`87.13` mm	`79.6` mm	`20` mm	`33.9` mm	`11.1` mm	`59` mm	`45` mm	`0.6` mm	`0.91` kg
`23219015`	`15`	`99.16` mm	`91.63` mm	`20` mm	`33.9` mm	`11.1` mm	`71` mm	`45` mm	`0.6` mm	`1.3` kg
`23219017`	`17`	`111.2` mm	`103.67` mm	`20` mm	`33.9` mm	`11.1` mm	`83` mm	`45` mm	`0.6` mm	`2.12` kg
`23219018`	`18`	`117.23` mm	`109.71` mm	`20` mm	`33.9` mm	`11.1` mm	`88` mm	`45` mm	`0.6` mm	`2.42` kg
`23219019`	`19`	`123.27` mm	`115.74` mm	`20` mm	`33.9` mm	`11.1` mm	`95` mm	`45` mm	`0.6` mm	`2.75` kg
`23219020`	`20`	`129.31` mm	`121.78` mm	`20` mm	`33.9` mm	`11.1` mm	`101` mm	`45` mm	`0.6` mm	`3.09` kg
`23219021`	`21`	`135.35` mm	`127.82` mm	`20` mm	`33.9` mm	`11.1` mm	`107` mm	`45` mm	`0.6` mm	`3.42` kg
`23219023`	`23`	`147.43` mm	`139.9` mm	`20` mm	`33.9` mm	`11.1` mm	`119` mm	`45` mm	`0.6` mm	`4.21` kg
`23219025`	`25`	`159.52` mm	`151.99` mm	`24` mm	`33.9` mm	`11.1` mm	`131` mm	`45` mm	`0.6` mm	`5.07` kg
