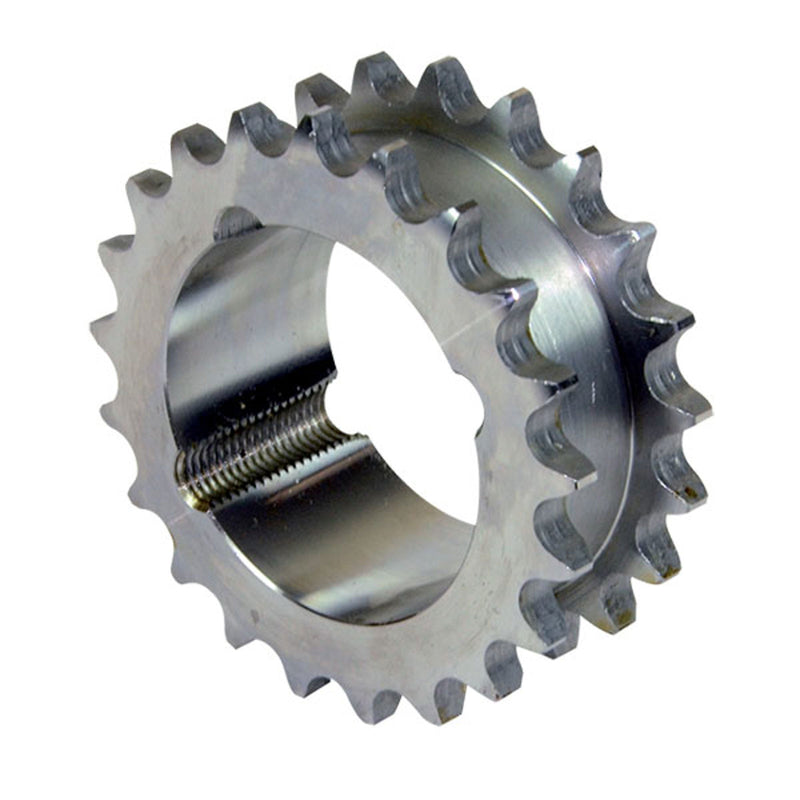

Duplex Platewheel for Two Simplex Chains Taper-Lock® 10B-1 (5/8” × 3/8”)

Name: Chiaravalli Duplex Platewheel for Two Simplex Chains Taper-Lock® 10B-1 (5/8” × 3/8”)
Brand: Chiaravalli

Duplex platewheel for two 10B-1 (5/8” × 3/8”) simplex roller chains running side by side, with a Taper-Lock® hub — supplied without taper bush.

Select a row to add it to your quote

Teeth

Code	Z	Bush	de	dp	A	B h14	C max	L	r	Weight
`27215015`	`15`	`1210`	`83.19` mm	`76.35` mm	`27.9` mm	`9.1` mm	`58` mm	`37` mm	`0.6` mm	`0.87` kg
`27215017`	`17`	`1610`	`93.23` mm	`86.39` mm	`27.9` mm	`9.1` mm	`68` mm	`37` mm	`0.6` mm	`1.17` kg
`27215018`	`18`	`1610`	`98.3` mm	`91.42` mm	`27.9` mm	`9.1` mm	`72` mm	`37` mm	`0.6` mm	`1.34` kg
`27215019`	`19`	`1610`	`103.29` mm	`96.45` mm	`27.9` mm	`9.1` mm	`79` mm	`37` mm	`0.6` mm	`1.49` kg
`27215020`	`20`	`1610`	`108.4` mm	`101.49` mm	`27.9` mm	`9.1` mm	`82` mm	`37` mm	`0.6` mm	`1.68` kg
`27215021`	`21`	`1610`	`113.35` mm	`106.51` mm	`27.9` mm	`9.1` mm	`89` mm	`37` mm	`0.6` mm	`1.88` kg
`27215023`	`23`	`1610`	`123.43` mm	`116.59` mm	`27.9` mm	`9.1` mm	`99` mm	`37` mm	`0.6` mm	`2.3` kg
`27215025`	`25`	`2012`	`133.5` mm	`126.66` mm	`27.9` mm	`9.1` mm	`109` mm	`37` mm	`0.6` mm	`2.77` kg
`27215030`	`30`	`2012`	`158.71` mm	`151.87` mm	`27.9` mm	`9.1` mm	`135` mm	`37` mm	`0.6` mm	`3.2` kg
