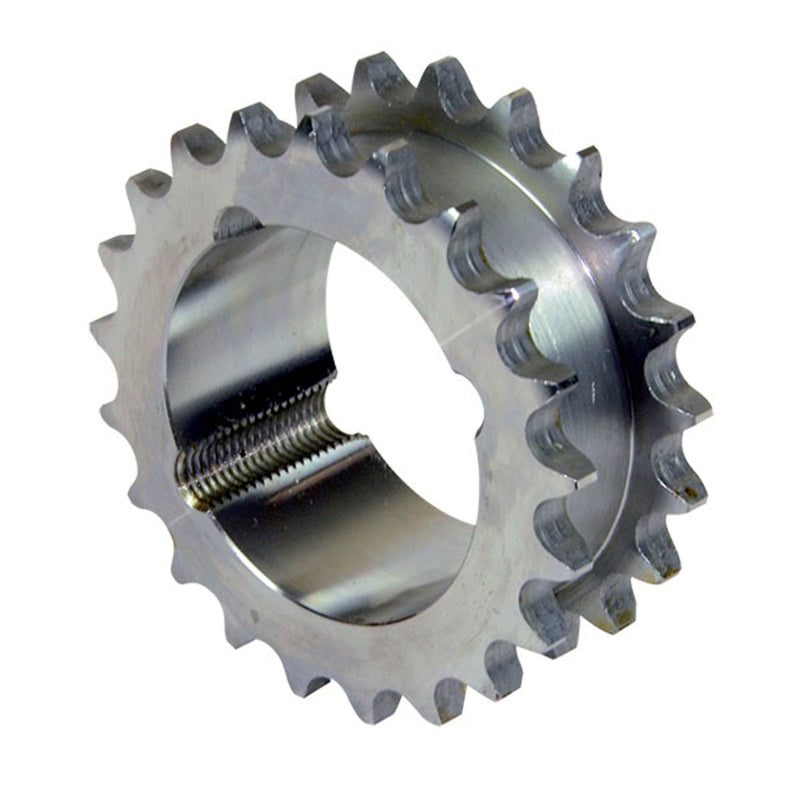

Duplex Platewheel for Two Simplex Chains Taper-Lock® 16B-1 (1” × 17.02 mm)

Name: Chiaravalli Duplex Platewheel for Two Simplex Chains Taper-Lock® 16B-1 (1” × 17.02 mm)
Brand: Chiaravalli

Duplex platewheel for two 16B-1 (1” × 17.02 mm) simplex roller chains running side by side, with a Taper-Lock® hub — supplied without taper bush.

Select a row to add it to your quote

Teeth

Code	Z	Bush	de	dp	A	B h14	C max	L	r	Weight
`27225015`	`15`	`2012`	`133.29` mm	`122.17` mm	`47.8` mm	`16.2` mm	`95` mm	`64` mm	`0.8` mm	`4.44` kg
`27225017`	`17`	`2517`	`149.35` mm	`138.23` mm	`47.8` mm	`16.2` mm	`111` mm	`64` mm	`0.8` mm	`5.09` kg
`27225018`	`18`	`2517`	`157.39` mm	`146.28` mm	`47.8` mm	`16.2` mm	`119` mm	`64` mm	`0.8` mm	`5.9` kg
`27225019`	`19`	`2517`	`165.44` mm	`154.32` mm	`47.8` mm	`16.2` mm	`127` mm	`64` mm	`0.8` mm	`6.7` kg
`27225020`	`20`	`2517`	`173.49` mm	`162.38` mm	`47.8` mm	`16.2` mm	`135` mm	`64` mm	`0.8` mm	`7.53` kg
`27225021`	`21`	`3020`	`181.54` mm	`170.42` mm	`47.8` mm	`16.2` mm	`143` mm	`64` mm	`0.8` mm	`9.48` kg
`27225023`	`23`	`3020`	`197.66` mm	`186.54` mm	`47.8` mm	`16.2` mm	`160` mm	`64` mm	`0.8` mm	`10.0` kg
`27225025`	`25`	`3020`	`213.78` mm	`202.66` mm	`47.8` mm	`16.2` mm	`176` mm	`64` mm	`0.8` mm	`11.0` kg
`27225030`	`30`	`3020`	`254.1` mm	`243` mm	`47.8` mm	`16.2` mm	`216` mm	`64` mm	`0.8` mm	`13.0` kg
