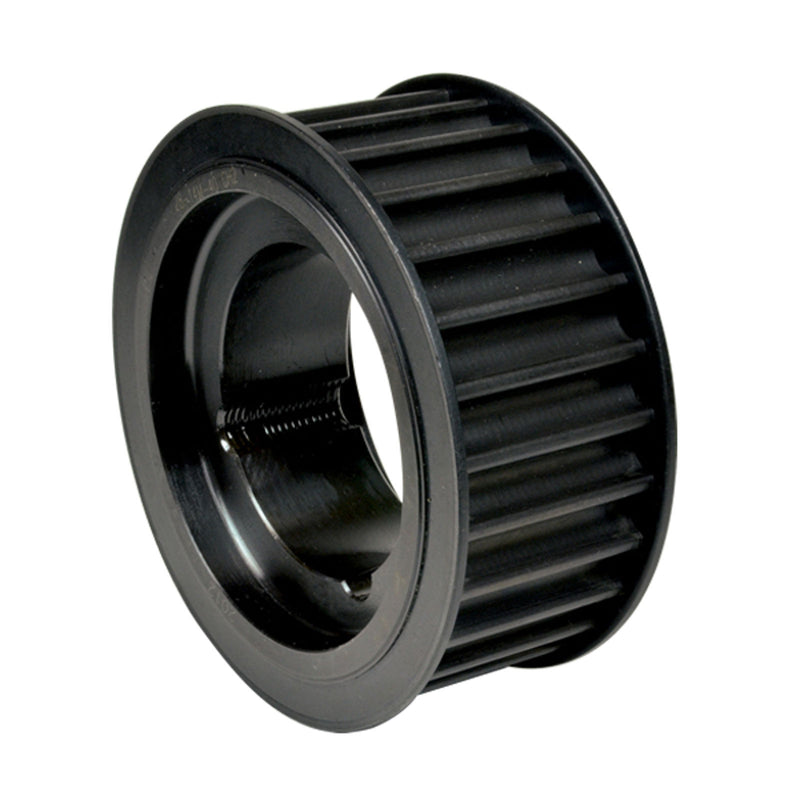

HTD® Taper-Lock® Timing Pulley 14M-115 (14 mm pitch, 115 mm belt)

Timing Pulleys

HTD® 14M-115 timing pulley (14 mm pitch, for 115 mm belt width) for Taper-Lock® bush mounting, teeth Z 28–264. Material per size: Steel or Cast iron — see the Material column.

The Taper bush column gives the bush size; Bore max is the largest bore that bush accepts. The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.Taper bushBore maxDpDeDf flangeDm hubDiFSPMaterial Weight CAD
41690028 28 3F 2517 60 mm 124.78 mm 122.12 mm 128 mm — 98 mm 133 mm 45 mm 44 mm Steel 3.8 kg
41690030 30 3F 2517 60 mm 133.69 mm 130.99 mm 138 mm — 100 mm 133 mm 45 mm 44 mm Steel 5.0 kg
41690032 32 3F 2517 60 mm 142.6 mm 139.88 mm 154 mm — 108 mm 133 mm 45 mm 44 mm Steel 6.8 kg
41690034 34 3F 2517 60 mm 151.52 mm 148.79 mm 160 mm — 110 mm 133 mm 45 mm 44 mm Steel 6.9 kg
41690036 36 3F 3020 75 mm 160.43 mm 157.68 mm 168 mm — 125 mm 133 mm 51 mm 41 mm Steel 7.0 kg
41690038 38 3F 3020 75 mm 169.34 mm 166.6 mm 183 mm — 130 mm 133 mm 51 mm 41 mm Steel 8.5 kg
41690040 40 3F 3020 75 mm 178.25 mm 175.49 mm 188 mm — 138 mm 133 mm 51 mm 41 mm Steel 9.1 kg
41690044 44 3F 3030 75 mm 196.08 mm 193.28 mm 211 mm — 155 mm 133 mm 76 mm 28.5 mm Steel 13.0 kg
41690048 48 3F 3030 75 mm 213.9 mm 211.11 mm 226 mm — 170 mm 133 mm 76 mm 28.5 mm Steel 16.0 kg
41690056 56 3F 3535 90 mm 249.55 mm 246.76 mm 256 mm — 210 mm 133 mm 89 mm 22 mm Steel 24.0 kg
41690064 64 10F 3535 90 mm 285.21 mm 282.41 mm 296 mm 190 mm 240 mm 133 mm 89 mm 22 mm Cast iron 32.0 kg
41690072 72 11 3535 90 mm 320.86 mm 318.06 mm — 190 mm 280 mm 133 mm 89 mm 22 mm Cast iron 31.0 kg
41690080 80 12 3535 90 mm 356.51 mm 353.71 mm — 190 mm 315 mm 133 mm 89 mm 22 mm Cast iron 32.0 kg
41690090 90 12 3535 90 mm 401.07 mm 398.28 mm — 190 mm 360 mm 133 mm 89 mm 22 mm Cast iron 37.0 kg
41690112 112 12 3535 90 mm 499.11 mm 496.32 mm — 190 mm 457 mm 133 mm 89 mm 22 mm Cast iron 45.0 kg
41690144 144 12 4040 100 mm 641.71 mm 638.92 mm — 230 mm 600 mm 133 mm 102 mm 15.5 mm Cast iron 63.0 kg
41690168 168 12 4040 100 mm 748.66 mm 745.87 mm — 230 mm 706 mm 133 mm 102 mm 15.5 mm Cast iron 77.5 kg
41690192 192 12 4040 100 mm 855.62 mm 852.82 mm — 230 mm 813 mm 133 mm 102 mm 15.5 mm Cast iron 95.0 kg
41690264 264 12 5050 125 mm 1176.47 mm 1173.66 mm — 270 mm 1133 mm 133 mm 127 mm 3 mm Cast iron 120.0 kg —
