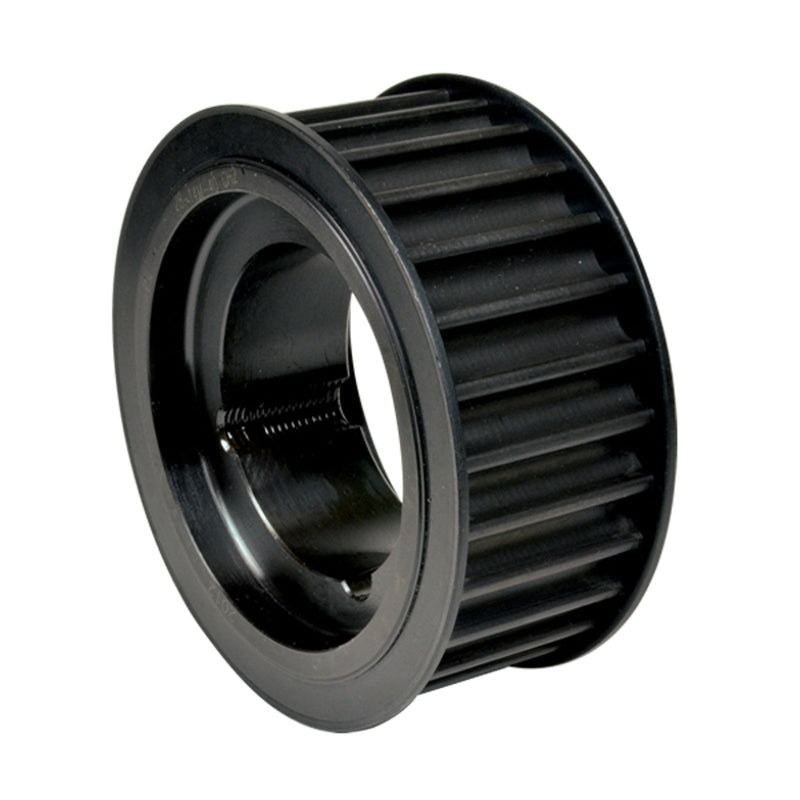

Chiaravalli HTD® Taper-Lock® Timing Pulley 14M-170 (14 mm pitch, 170 mm belt) — product photo
Chiaravalli

HTD® Taper-Lock® Timing Pulley 14M-170 (14 mm pitch, 170 mm belt)

Timing Pulleys

HTD® 14M-170 timing pulley (14 mm pitch, for 170 mm belt width) for Taper-Lock® bush mounting, teeth Z 38–168. Material per size: Steel or Cast iron — see the Material column.

The Taper bush column gives the bush size; Bore max is the largest bore that bush accepts. The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.Taper bushBore maxDpDeDf flangeDm hubDiFSPMaterial Weight CAD
41692038 38 3F 3030 75 mm 169.34 mm 166.6 mm 183 mm — 130 mm 187 mm 76 mm 55.5 mm Steel 11.7 kg
41692040 40 3F 3030 75 mm 178.25 mm 175.49 mm 188 mm — 138 mm 187 mm 76 mm 55.5 mm Steel 13.0 kg
41692044 44 3F 3535 90 mm 196.08 mm 193.28 mm 211 mm — 155 mm 187 mm 89 mm 49 mm Steel 15.0 kg
41692048 48 3F 3535 90 mm 213.9 mm 211.11 mm 226 mm — 175 mm 187 mm 89 mm 49 mm Steel 19.0 kg
41692056 56 3F 3535 90 mm 249.55 mm 246.76 mm 256 mm — 210 mm 187 mm 89 mm 49 mm Cast iron 28.5 kg
41692080 80 11 4040 100 mm 356.51 mm 353.71 mm — 230 mm 315 mm 187 mm 102 mm 42.5 mm Cast iron 48.0 kg
41692090 90 12 4040 100 mm 401.07 mm 398.28 mm — 230 mm 360 mm 187 mm 102 mm 42.5 mm Cast iron 52.5 kg
41692112 112 12 5050 125 mm 499.11 mm 496.32 mm — 265 mm 457 mm 187 mm 127 mm 30 mm Cast iron 74.5 kg
41692144 144 12 5050 125 mm 641.71 mm 638.92 mm — 265 mm 600 mm 187 mm 127 mm 30 mm Cast iron 91.0 kg
41692168 168 12 5050 125 mm 748.66 mm 745.87 mm — 265 mm 706 mm 187 mm 127 mm 30 mm Cast iron 116.0 kg

Product Information

Pitch
14.0 mm
