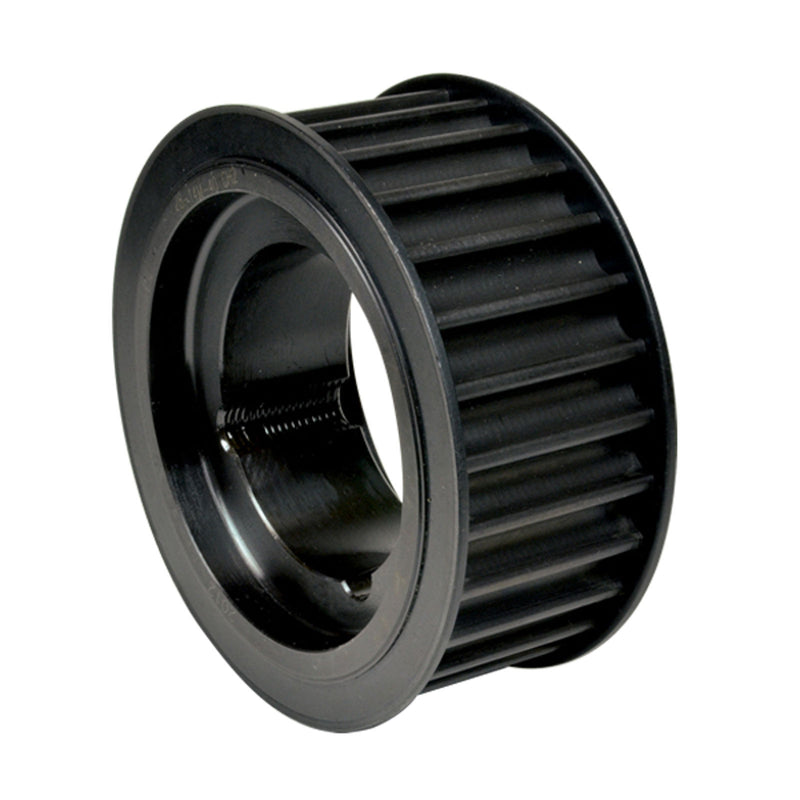

Chiaravalli HTD® Taper-Lock® Timing Pulley 14M-40 (14 mm pitch, 40 mm belt) — product photo
Chiaravalli

HTD® Taper-Lock® Timing Pulley 14M-40 (14 mm pitch, 40 mm belt)

Timing Pulleys

HTD® 14M-40 timing pulley (14 mm pitch, for 40 mm belt width) for Taper-Lock® bush mounting, teeth Z 28–264. Material per size: Steel or Cast iron — see the Material column.

The Taper bush column gives the bush size; Bore max is the largest bore that bush accepts. The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.Taper bushBore maxDpDeDf flangeDm hubDiFSPMaterial Weight CAD
41640028 28 3F 2012 50 mm 124.78 mm 122.12 mm 128 mm — 94 mm 54 mm 32 mm 11 mm Steel 2.1 kg
41640029 29 3F 2012 50 mm 129.23 mm 126.57 mm 138 mm — 96 mm 54 mm 32 mm 11 mm Steel 2.4 kg
41640030 30 3F 2012 50 mm 133.69 mm 130.99 mm 138 mm — 98 mm 54 mm 32 mm 11 mm Steel 2.7 kg
41640032 32 3F 2012 50 mm 142.6 mm 139.88 mm 154 mm — 108 mm 54 mm 32 mm 11 mm Steel 3.4 kg
41640034 34 3F 2517 60 mm 151.52 mm 148.79 mm 160 mm — 110 mm 54 mm 45 mm 4.5 mm Steel 3.9 kg
41640036 36 3F 2517 60 mm 160.43 mm 157.68 mm 168 mm — 120 mm 54 mm 45 mm 4.5 mm Steel 4.8 kg
41640038 38 3F 2517 60 mm 169.34 mm 166.6 mm 183 mm — 130 mm 54 mm 45 mm 4.5 mm Steel 5.4 kg
41640040 40 3F 2517 60 mm 178.25 mm 175.49 mm 188 mm — 138 mm 54 mm 45 mm 4.5 mm Steel 6.0 kg
41640042 42 3F 3020 75 mm 187.16 mm 184.37 mm 200 mm — 147 mm 54 mm 51 mm 1.5 mm Steel 7.5 kg
41640044 44 3F 3020 75 mm 196.08 mm 193.28 mm 211 mm — 155 mm 54 mm 51 mm 1.5 mm Steel 9.0 kg
41640048 48 3F 3020 75 mm 213.9 mm 211.11 mm 226 mm — 170 mm 54 mm 51 mm 1.5 mm Steel 10.1 kg
41640056 56 3F 3020 75 mm 249.55 mm 246.76 mm 256 mm — 208 mm 54 mm 51 mm 1.5 mm Steel 13.4 kg
41640072 72 11 3020 75 mm 320.86 mm 318.06 mm — 170 mm 280 mm 54 mm 51 mm 1.5 mm Cast iron 15.0 kg
41640080 80 12 3020 75 mm 356.51 mm 353.71 mm — 170 mm 315 mm 54 mm 51 mm 1.5 mm Cast iron 16.0 kg
41640090 90 12 3020 75 mm 401.07 mm 398.28 mm — 170 mm 360 mm 54 mm 51 mm 1.5 mm Cast iron 18.0 kg
41640112 112 12 3020 75 mm 499.11 mm 496.32 mm — 170 mm 457 mm 54 mm 51 mm 1.5 mm Cast iron 25.5 kg
41640144 144 12 3020 75 mm 641.71 mm 638.92 mm — 170 mm 600 mm 54 mm 51 mm 1.5 mm Cast iron 32.0 kg
41640168 168 12 3020 75 mm 748.66 mm 745.87 mm — 170 mm 706 mm 54 mm 51 mm 1.5 mm Cast iron 53.6 kg
41640192 192 12 3020 75 mm 855.62 mm 852.82 mm — 170 mm 813 mm 54 mm 51 mm 1.5 mm Cast iron 65.4 kg
41640216 216 12 3020 75 mm 962.57 mm 959.76 mm — 170 mm 920 mm 54 mm 51 mm 1.5 mm Cast iron 87.3 kg
41640264 264 13 4040 100 mm 1176.47 mm 1173.66 mm — 230 mm 1133 mm 54 mm 102 mm 24 mm Cast iron 131.0 kg

Product Information

Pitch
14.0 mm
