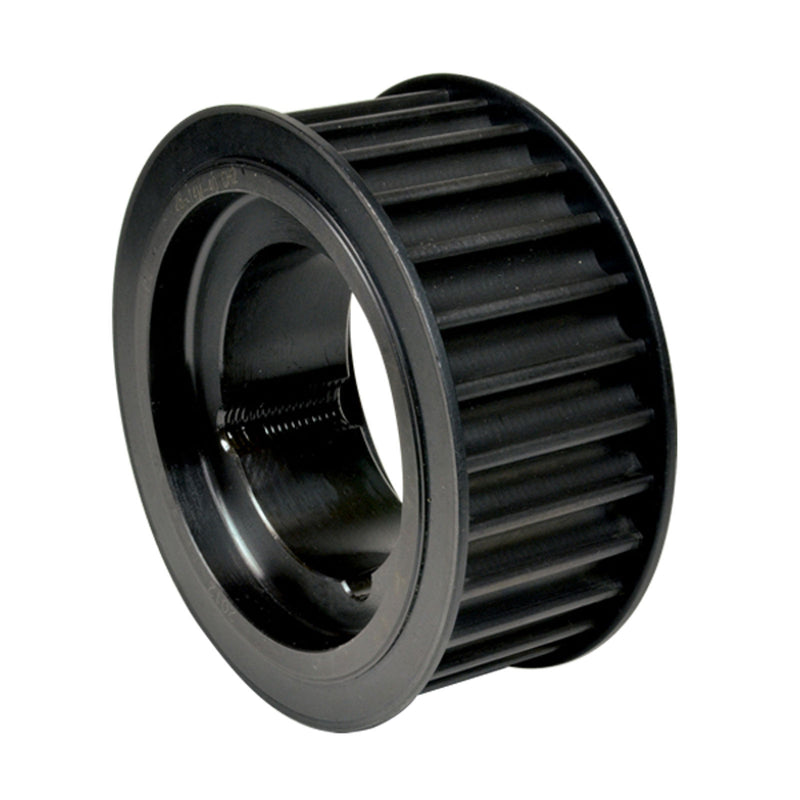

HTD® Taper-Lock® Timing Pulley 14M-85 (14 mm pitch, 85 mm belt)

Timing Pulleys

HTD® 14M-85 timing pulley (14 mm pitch, for 85 mm belt width) for Taper-Lock® bush mounting, teeth Z 28–264. Material per size: Steel or Cast iron — see the Material column.

The Taper bush column gives the bush size; Bore max is the largest bore that bush accepts. The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.Taper bushBore maxDpDeDf flangeDm hubDiFSPMaterial Weight CAD
41685028 28 3F 2517 60 mm 124.78 mm 122.12 mm 128 mm — 98 mm 102 mm 45 mm 28.5 mm Steel 2.7 kg
41685029 29 3F 2517 60 mm 129.23 mm 126.57 mm 138 mm — 100 mm 102 mm 45 mm 28.5 mm Steel 3.5 kg
41685030 30 3F 2517 60 mm 133.69 mm 130.99 mm 138 mm — 100 mm 102 mm 45 mm 28.5 mm Steel 3.8 kg
41685032 32 3F 2517 60 mm 142.6 mm 139.88 mm 154 mm — 108 mm 102 mm 45 mm 28.5 mm Steel 4.7 kg
41685034 34 3F 2517 60 mm 151.52 mm 148.79 mm 160 mm — 110 mm 102 mm 45 mm 28.5 mm Steel 6.0 kg
41685036 36 3F 3020 75 mm 160.43 mm 157.68 mm 168 mm — 125 mm 102 mm 51 mm 25.5 mm Steel 5.7 kg
41685038 38 3F 3020 75 mm 169.34 mm 166.6 mm 183 mm — 130 mm 102 mm 51 mm 25.5 mm Steel 6.8 kg
41685040 40 3F 3020 75 mm 178.25 mm 175.49 mm 188 mm — 138 mm 102 mm 51 mm 25.5 mm Steel 8.0 kg
41685044 44 3F 3020 75 mm 196.08 mm 193.28 mm 211 mm — 153 mm 102 mm 51 mm 25.5 mm Steel 11.7 kg
41685048 48 3F 3020 75 mm 213.9 mm 211.11 mm 226 mm — 171 mm 102 mm 51 mm 25.5 mm Steel 15.0 kg
41685056 56 3F 3525 90 mm 249.55 mm 246.76 mm 256 mm — 210 mm 102 mm 65 mm 18.5 mm Steel 19.0 kg
41685064 64 10F 3525 90 mm 285.21 mm 282.41 mm 296 mm 190 mm 240 mm 102 mm 65 mm 18.5 mm Cast iron 24.0 kg
41685072 72 11 3525 90 mm 320.86 mm 318.06 mm — 190 mm 280 mm 102 mm 65 mm 18.5 mm Cast iron 25.0 kg
41685080 80 12 3525 90 mm 356.51 mm 353.71 mm — 190 mm 315 mm 102 mm 65 mm 18.5 mm Cast iron 26.0 kg
41685090 90 12 3525 90 mm 401.07 mm 398.28 mm — 190 mm 360 mm 102 mm 65 mm 18.5 mm Cast iron 28.0 kg
41685112 112 12 3525 90 mm 499.11 mm 496.32 mm — 190 mm 457 mm 102 mm 65 mm 18.5 mm Cast iron 36.0 kg
41685144 144 12 3525 90 mm 641.71 mm 638.92 mm — 190 mm 600 mm 102 mm 65 mm 18.5 mm Cast iron 48.0 kg
41685168 168 12 3525 90 mm 748.66 mm 745.87 mm — 190 mm 706 mm 102 mm 65 mm 18.5 mm Cast iron 60.0 kg
41685192 192 9 4040 100 mm 855.62 mm 852.82 mm — 230 mm 813 mm 102 mm 102 mm — Cast iron 85.0 kg
41685216 216 9 4040 100 mm 962.57 mm 959.76 mm — 230 mm 920 mm 102 mm 102 mm — Cast iron 101.5 kg
41685264 264 9 4040 100 mm 1176.47 mm 1173.66 mm — 230 mm 1133 mm 102 mm 102 mm — Cast iron 138.0 kg
