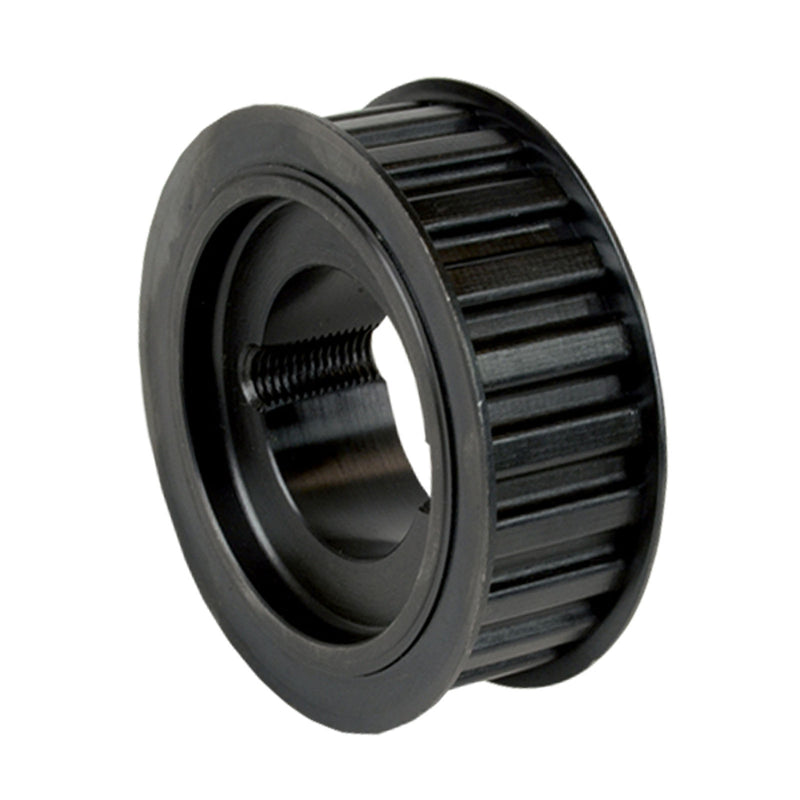

HTD® Taper-Lock® Timing Pulley 5M-15 (5 mm pitch, 15 mm belt)

Timing Pulleys

HTD® 5M-15 timing pulley (5 mm pitch, for 15 mm belt width) for Taper-Lock® bush mounting, teeth Z 34–136. Material: Steel.

The Taper bush column gives the bush size; Bore max is the largest bore that bush accepts. The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.Taper bushBore maxDpDeDf flangeDm hubDiFSP Weight CAD
41215034 34 1F 1008 25 mm 54.11 mm 52.97 mm 57 mm — — 22 mm 22 mm — 0.2 kg
41215036 36 1F 1108 25 mm 57.3 mm 56.15 mm 60 mm — — 22 mm 22 mm — 0.25 kg
41215038 38 1F 1108 25 mm 60.48 mm 59.34 mm 66.5 mm — — 22 mm 22 mm — 0.3 kg
41215040 40 1F 1108 25 mm 63.66 mm 62.52 mm 71 mm — — 22 mm 22 mm — 0.35 kg
41215044 44 1F 1108 25 mm 70.03 mm 68.89 mm 75 mm — — 22 mm 22 mm — 0.4 kg
41215048 48 5F 1210 32 mm 76.39 mm 75.25 mm 83 mm 59 mm — 22 mm 25 mm 3 mm 0.46 kg
41215056 56 5F 1210 32 mm 89.13 mm 87.98 mm 93 mm 70 mm — 22 mm 25 mm 3 mm 0.6 kg
41215064 64 5F 1210 32 mm 101.86 mm 100.72 mm 106 mm 80 mm — 22 mm 25 mm 3 mm 0.8 kg
41215072 72 5 1610 42 mm 114.59 mm 113.45 mm — 92 mm — 22 mm 25 mm 3 mm 1.2 kg
41215080 80 5 1610 42 mm 127.32 mm 126.18 mm — 92 mm — 22 mm 25 mm 3 mm 1.76 kg
41215090 90 5 1610 42 mm 143.24 mm 142.1 mm — 92 mm — 22 mm 25 mm 3 mm 2.32 kg
41215112 112 5 2012 50 mm 178.25 mm 177.11 mm — 110 mm — 20 mm 32 mm 12 mm 3.72 kg
41215136 136 13 2012 50 mm 216.45 mm 215.31 mm — 110 mm 199 mm 20 mm 32 mm 6 mm 3.82 kg

Product Information

Material
Steel
Pitch
5.0 mm

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.

Contact Us
