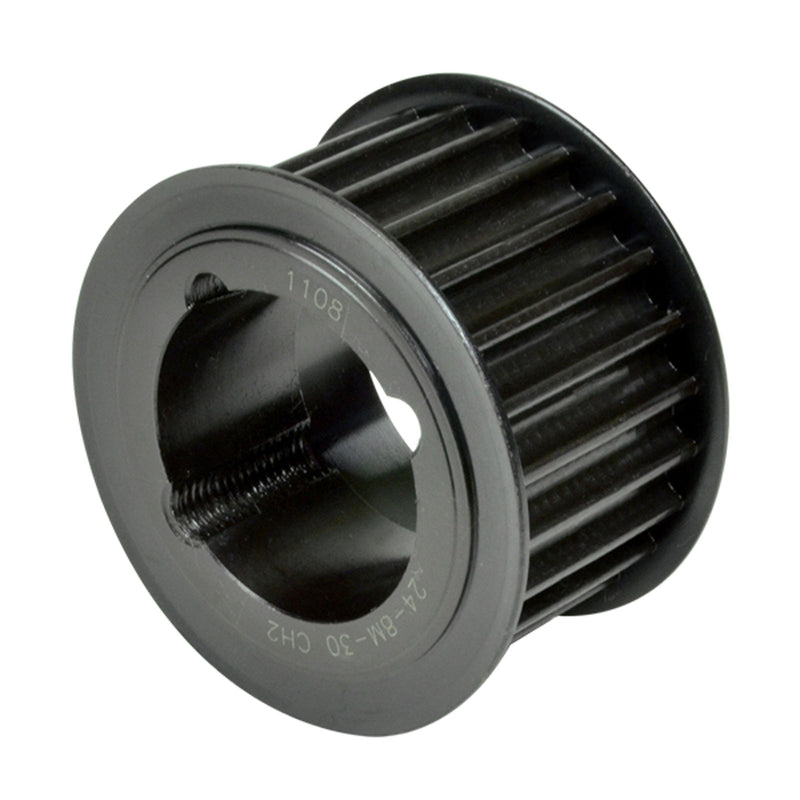

HTD® Taper-Lock® Timing Pulley 8M-20 (8 mm pitch, 20 mm belt)

Timing Pulleys

HTD® 8M-20 timing pulley (8 mm pitch, for 20 mm belt width) for Taper-Lock® bush mounting, teeth Z 22–144. Material per size: Steel or Cast iron — see the Material column.

The Taper bush column gives the bush size; Bore max is the largest bore that bush accepts. The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.Taper bushBore maxDpDeDf flangeDm hubDiFSPMaterial Weight CAD
41420022 22 2F 1008 25 mm 56.02 mm 54.65 mm 60 mm — 37 mm 28 mm 22 mm 6 mm Steel 0.25 kg
41420024 24 2F 1108 28 mm 61.12 mm 59.75 mm 66 mm — 44 mm 28 mm 22 mm 6 mm Steel 0.3 kg
41420026 26 2F 1108 28 mm 66.21 mm 64.85 mm 70 mm — 45 mm 28 mm 22 mm 6 mm Steel 0.36 kg
41420028 28 2F 1108 28 mm 71.3 mm 70.08 mm 75 mm — 50 mm 28 mm 22 mm 6 mm Steel 0.45 kg
41420030 30 2F 1108 28 mm 76.39 mm 75.13 mm 82.5 mm — 58 mm 28 mm 22 mm 6 mm Steel 0.55 kg
41420032 32 2F 1610 42 mm 81.49 mm 80.16 mm 87 mm — 63 mm 28 mm 25 mm 3 mm Steel 0.43 kg
41420034 34 2F 1610 42 mm 86.58 mm 85.22 mm 91 mm — 64 mm 28 mm 25 mm 3 mm Steel 0.57 kg
41420036 36 2F 1610 42 mm 91.67 mm 90.3 mm 97 mm — 68 mm 28 mm 25 mm 3 mm Steel 0.7 kg
41420038 38 2F 1610 42 mm 96.77 mm 95.39 mm 102 mm — 72 mm 28 mm 25 mm 3 mm Steel 0.82 kg
41420040 40 2F 1610 42 mm 101.86 mm 100.49 mm 106 mm — 76 mm 28 mm 25 mm 3 mm Steel 1.1 kg
41420044 44 5F 2012 50 mm 112.05 mm 110.67 mm 120 mm 92 mm — 28 mm 32 mm 4 mm Steel 1.2 kg
41420048 48 5F 2012 50 mm 122.23 mm 120.86 mm 128 mm 96 mm — 28 mm 32 mm 4 mm Steel 1.65 kg
41420056 56 5F 2012 50 mm 142.6 mm 141.23 mm 150 mm 110 mm — 28 mm 32 mm 4 mm Steel 2.5 kg
41420064 64 6F 2012 50 mm 162.97 mm 161.6 mm 168 mm 110 mm 137 mm 28 mm 32 mm 4 mm Steel 2.6 kg
41420072 72 6F 2012 50 mm 183.35 mm 181.97 mm 192 mm 110 mm 158 mm 28 mm 32 mm 4 mm Steel 3.4 kg
41420080 80 7 2012 50 mm 203.72 mm 202.35 mm — 110 mm 180 mm 28 mm 32 mm 4 mm Cast iron 3.6 kg
41420090 90 7 2012 50 mm 229.18 mm 227.81 mm — 110 mm 204 mm 28 mm 32 mm 4 mm Cast iron 4.1 kg
41420112 112 7 2517 60 mm 285.21 mm 283.83 mm — 125 mm 254 mm 28 mm 45 mm 17 mm Cast iron 4.57 kg
41420144 144 13 2517 60 mm 366.69 mm 365.32 mm — 125 mm 336 mm 28 mm 45 mm 12 mm Cast iron 5.0 kg

Product Information

Pitch
8.0 mm

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
