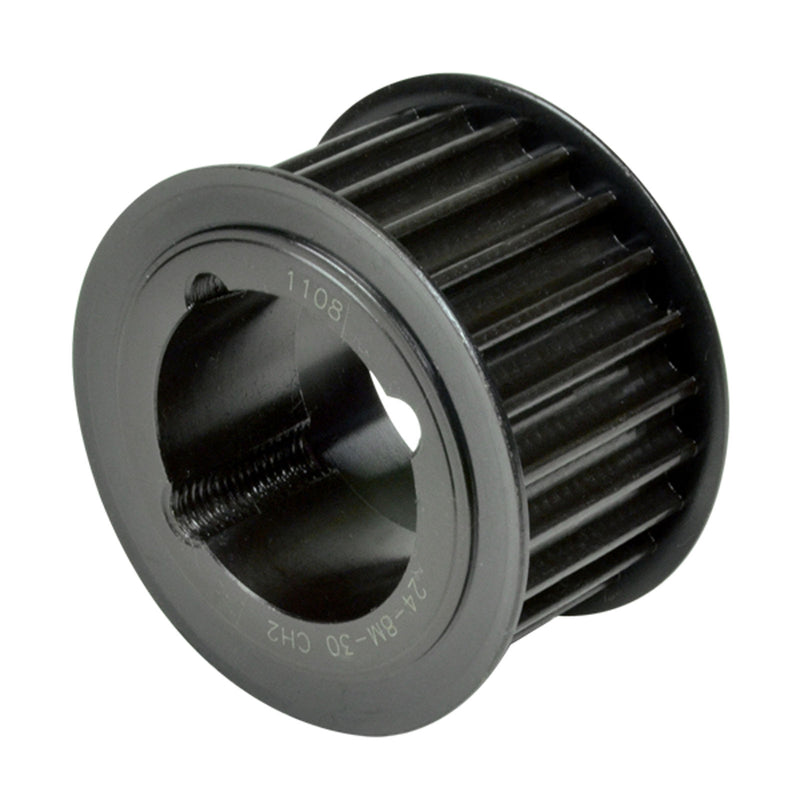

Chiaravalli HTD® Taper-Lock® Timing Pulley 8M-30 (8 mm pitch, 30 mm belt) — product photo
Chiaravalli

HTD® Taper-Lock® Timing Pulley 8M-30 (8 mm pitch, 30 mm belt)

Timing Pulleys

HTD® 8M-30 timing pulley (8 mm pitch, for 30 mm belt width) for Taper-Lock® bush mounting, teeth Z 22–192. Material per size: Steel or Cast iron — see the Material column.

The Taper bush column gives the bush size; Bore max is the largest bore that bush accepts. The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.Taper bushBore maxDpDeDf flangeDm hubDiFSPMaterial Weight CAD
41430022 22 2F 1008 25 mm 56.02 mm 54.65 mm 60 mm — 37 mm 38 mm 22 mm 16 mm Steel 0.33 kg
41430024 24 2F 1108 28 mm 61.12 mm 59.75 mm 66 mm — 44 mm 38 mm 22 mm 16 mm Steel 0.4 kg
41430026 26 2F 1108 28 mm 66.21 mm 64.85 mm 70 mm — 44 mm 38 mm 22 mm 16 mm Steel 0.45 kg
41430028 28 2F 1210 32 mm 71.3 mm 70.08 mm 75 mm — 50 mm 38 mm 25 mm 13 mm Steel 0.5 kg
41430030 30 1F 1615 42 mm 76.39 mm 75.13 mm 82.5 mm — — 38 mm 38 mm — Steel 0.55 kg
41430032 32 1F 1615 42 mm 81.49 mm 80.16 mm 87 mm — — 38 mm 38 mm — Steel 0.6 kg
41430034 34 1F 1615 42 mm 86.58 mm 85.22 mm 91 mm — — 38 mm 38 mm — Steel 0.8 kg
41430036 36 1F 1615 42 mm 91.57 mm 90.3 mm 97 mm — — 38 mm 38 mm — Steel 1.0 kg
41430038 38 1F 1615 42 mm 96.77 mm 95.39 mm 102 mm — — 38 mm 38 mm — Steel 1.1 kg
41430040 40 1F 1615 42 mm 101.86 mm 100.49 mm 106 mm — — 38 mm 38 mm — Steel 1.34 kg
41430044 44 2F 2012 50 mm 112.05 mm 110.67 mm 120 mm — 86 mm 38 mm 32 mm 6 mm Steel 1.3 kg
41430048 48 2F 2012 50 mm 122.23 mm 120.86 mm 128 mm — 90 mm 38 mm 32 mm 6 mm Steel 1.8 kg
41430056 56 2F 2012 50 mm 142.6 mm 141.23 mm 150 mm — 110 mm 38 mm 32 mm 6 mm Steel 3.8 kg
41430064 64 5F 2517 60 mm 162.97 mm 161.6 mm 168 mm 125 mm — 38 mm 45 mm 7 mm Steel 4.3 kg
41430072 72 6F 2517 60 mm 183.35 mm 181.97 mm 192 mm 125 mm 158 mm 38 mm 45 mm 7 mm Steel 4.4 kg
41430080 80 7 2517 60 mm 203.72 mm 202.35 mm — 125 mm 180 mm 38 mm 45 mm 7 mm Cast iron 4.65 kg
41430090 90 7 2517 60 mm 229.18 mm 227.81 mm — 125 mm 204 mm 38 mm 45 mm 7 mm Cast iron 5.8 kg
41430112 112 7 2517 60 mm 285.21 mm 283.83 mm — 125 mm 254 mm 38 mm 45 mm 7 mm Cast iron 6.2 kg
41430144 144 8 2517 60 mm 366.69 mm 365.32 mm — 125 mm 336 mm 38 mm 45 mm 7 mm Cast iron 9.0 kg
41430168 168 8 2517 60 mm 427.81 mm 426.44 mm — 125 mm 395 mm 38 mm 45 mm 7 mm Cast iron 11.8 kg
41430192 192 13 3525 60 mm 488.92 mm 487.55 mm — 198 mm 455 mm 38 mm 65 mm 13.5 mm Cast iron 14.0 kg
