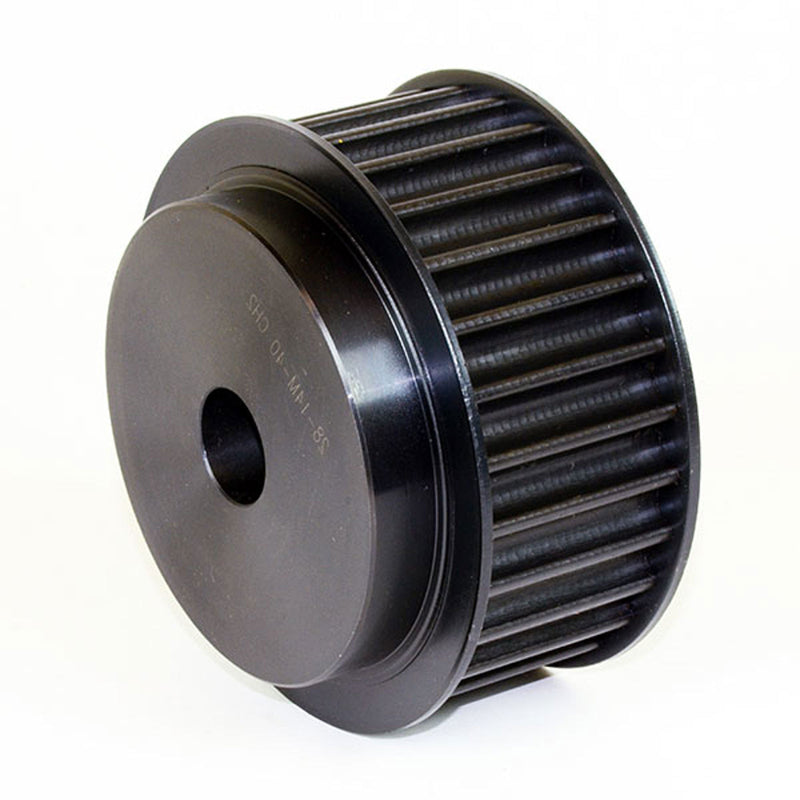

Chiaravalli HTD® Timing Pulley 14M-115 — Pilot Bore (14 mm pitch, 115 mm belt) — product photo
Chiaravalli

HTD® Timing Pulley 14M-115 — Pilot Bore (14 mm pitch, 115 mm belt)

Timing Pulleys

HTD® 14M-115 timing pulley (14 mm pitch, for 115 mm belt width) with pilot bore, teeth Z 28–192. Material per size: Steel, phosphated or Cast iron — see the Material column.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.DpDeDf flangeDm hubFLØ bore dMaterial Weight CAD
40690028 28 1F 124.78 mm 122.12 mm 128 mm 100 mm 133 mm 148 mm — Steel, phosphated 11.0 kg
40690030 30 1F 133.69 mm 130.99 mm 138 mm 100 mm 133 mm 148 mm — Steel, phosphated 12.52 kg
40690032 32 1F 142.6 mm 139.88 mm 154 mm 100 mm 133 mm 148 mm — Steel, phosphated 14.48 kg
40690034 34 1F 151.52 mm 148.79 mm 160 mm 100 mm 133 mm 148 mm — Steel, phosphated 16.45 kg
40690036 36 1F 160.43 mm 157.68 mm 168 mm 120 mm 133 mm 148 mm — Steel, phosphated 18.99 kg
40690038 38 1F 169.34 mm 166.6 mm 183 mm 120 mm 133 mm 148 mm — Steel, phosphated 21.31 kg
40690040 40 1F 178.25 mm 175.49 mm 188 mm 135 mm 133 mm 148 mm — Steel, phosphated 24.04 kg
40690044 44 1F 196.08 mm 193.28 mm 211 mm 140 mm 133 mm 148 mm — Steel, phosphated 29.0 kg
40690048 48 1F 213.9 mm 211.11 mm 226 mm 150 mm 133 mm 148 mm — Cast iron 35.0 kg
40690056 56 1F 249.55 mm 246.76 mm 256 mm 150 mm 133 mm 148 mm — Cast iron 48.0 kg
40690064 64 6F 285.21 mm 282.41 mm 296 mm 150 mm 133 mm 133 mm 32 mm Cast iron 36.0 kg
40690072 72 5 320.86 mm 318.06 mm — 150 mm 133 mm 133 mm 32 mm Cast iron 36.0 kg
40690080 80 5 356.51 mm 353.71 mm — 150 mm 133 mm 133 mm 32 mm Cast iron 40.0 kg
40690090 90 5 401.07 mm 398.28 mm — 150 mm 133 mm 133 mm 32 mm Cast iron 45.0 kg
40690112 112 5 499.11 mm 496.32 mm — 150 mm 133 mm 133 mm 32 mm Cast iron 55.5 kg
40690144 144 5 641.71 mm 638.92 mm — 165 mm 133 mm 133 mm 32 mm Cast iron 71.0 kg
40690168 168 5 748.66 mm 745.87 mm — 165 mm 133 mm 133 mm 32 mm Cast iron 83.0 kg
40690192 192 5 855.62 mm 852.82 mm — 165 mm 133 mm 133 mm 32 mm Cast iron 96.0 kg
