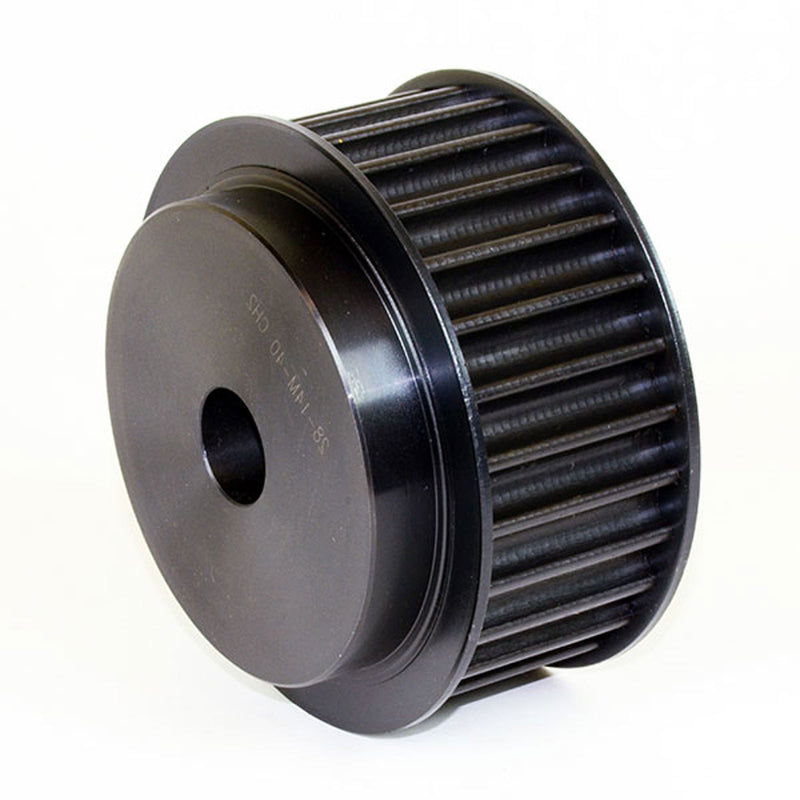

HTD® Timing Pulley 14M-170 — Pilot Bore (14 mm pitch, 170 mm belt)

Timing Pulleys

HTD® 14M-170 timing pulley (14 mm pitch, for 170 mm belt width) with pilot bore, teeth Z 28–168. Material per size: Steel, phosphated or Cast iron — see the Material column.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.DpDeDf flangeDm hubFLØ bore dMaterial Weight CAD
40692028 28 1F 124.78 mm 122.12 mm 128 mm 100 mm 187 mm 202 mm — Steel, phosphated 14.79 kg
40692030 30 1F 133.69 mm 130.99 mm 138 mm 100 mm 187 mm 202 mm — Steel, phosphated 17.24 kg
40692032 32 1F 142.6 mm 139.88 mm 154 mm 100 mm 187 mm 202 mm — Steel, phosphated 19.92 kg
40692034 34 1F 151.52 mm 148.79 mm 160 mm 100 mm 187 mm 202 mm — Steel, phosphated 22.72 kg
40692036 36 1F 160.43 mm 157.68 mm 168 mm 120 mm 187 mm 202 mm — Steel, phosphated 26.07 kg
40692038 38 1F 169.34 mm 166.6 mm 183 mm 135 mm 187 mm 202 mm — Steel, phosphated 29.71 kg
40692040 40 1F 178.25 mm 175.49 mm 188 mm 140 mm 187 mm 202 mm — Steel, phosphated 33.5 kg
40692080 80 7 356.51 mm 353.71 mm — 180 mm 187 mm 187 mm 32 mm Cast iron 71.0 kg
40692090 90 5 401.07 mm 398.28 mm — 180 mm 187 mm 187 mm 38 mm Cast iron 73.0 kg
40692112 112 5 499.11 mm 496.32 mm — 200 mm 187 mm 187 mm 38 mm Cast iron 95.0 kg
40692144 144 5 641.71 mm 638.92 mm — 220 mm 187 mm 187 mm 38 mm Cast iron 114.0 kg
40692168 168 5 748.66 mm 745.87 mm — 220 mm 187 mm 187 mm 38 mm Cast iron 142.0 kg

Product Information

Pitch
14.0 mm

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
