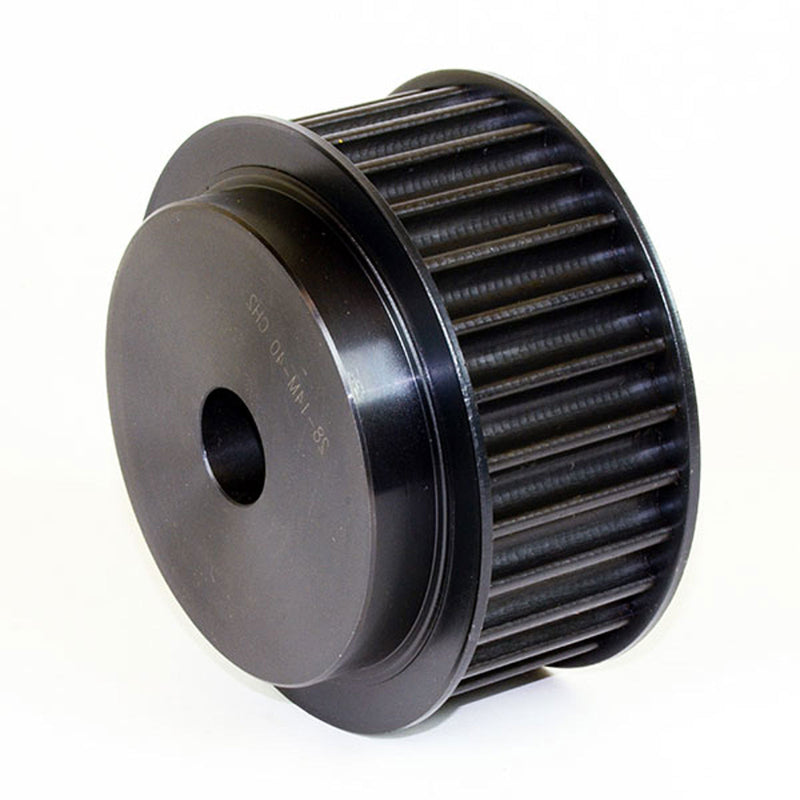

Chiaravalli HTD® Timing Pulley 14M-40 — Pilot Bore (14 mm pitch, 40 mm belt) — product photo
Chiaravalli

HTD® Timing Pulley 14M-40 — Pilot Bore (14 mm pitch, 40 mm belt)

Timing Pulleys

HTD® 14M-40 timing pulley (14 mm pitch, for 40 mm belt width) with pilot bore, teeth Z 28–112. Material per size: Steel, phosphated or Cast iron — see the Material column.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.DpDeDf flangeDm hubFLØ bore dMaterial Weight CAD
40640028 28 1F 124.78 mm 122.12 mm 128 mm 100 mm 54 mm 69 mm 24 mm Steel, phosphated 4.8 kg
40640029 29 1F 129.23 mm 126.57 mm 138 mm 100 mm 54 mm 69 mm 24 mm Steel, phosphated 5.2 kg
40640030 30 1F 133.69 mm 130.99 mm 138 mm 100 mm 54 mm 69 mm 24 mm Steel, phosphated 5.6 kg
40640032 32 1F 142.6 mm 139.88 mm 154 mm 100 mm 54 mm 69 mm 24 mm Steel, phosphated 6.2 kg
40640034 34 1F 151.52 mm 148.79 mm 160 mm 100 mm 54 mm 69 mm 24 mm Steel, phosphated 6.9 kg
40640036 36 1F 160.43 mm 157.68 mm 168 mm 100 mm 54 mm 69 mm 24 mm Steel, phosphated 7.7 kg
40640038 38 1F 169.34 mm 166.6 mm 183 mm 120 mm 54 mm 69 mm 24 mm Steel, phosphated 8.9 kg
40640040 40 1F 178.25 mm 175.49 mm 188 mm 120 mm 54 mm 69 mm 24 mm Steel, phosphated 9.8 kg
40640044 44 1F 196.08 mm 193.28 mm 211 mm 120 mm 54 mm 69 mm 24 mm Steel, phosphated 12.0 kg
40640048 48 2F 213.9 mm 211.11 mm 226 mm 135 mm 54 mm 69 mm 24 mm Cast iron 11.98 kg
40640056 56 2F 249.55 mm 246.76 mm 256 mm 135 mm 54 mm 69 mm 28 mm Cast iron 14.01 kg
40640064 64 2F 285.21 mm 282.41 mm 296 mm 135 mm 54 mm 69 mm 28 mm Cast iron 16.65 kg
40640072 72 4 320.86 mm 318.06 mm — 135 mm 54 mm 69 mm 28 mm Cast iron 15.52 kg
40640080 80 4 356.51 mm 353.71 mm — 135 mm 54 mm 69 mm 28 mm Cast iron 17.23 kg
40640090 90 4 401.07 mm 398.28 mm — 135 mm 54 mm 69 mm 28 mm Cast iron 19.4 kg
40640112 112 4 499.11 mm 496.32 mm — 135 mm 54 mm 69 mm 28 mm Cast iron 24.14 kg

Product Information

Pitch
14.0 mm

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.

Contact Us
