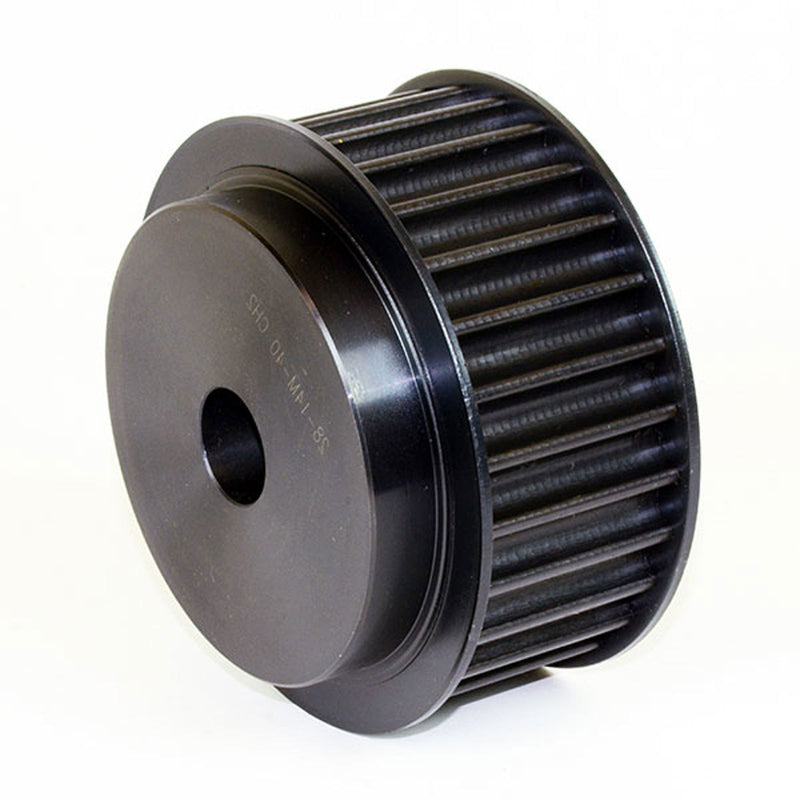

HTD® Timing Pulley 14M-55 — Pilot Bore (14 mm pitch, 55 mm belt)

Timing Pulleys

HTD® 14M-55 timing pulley (14 mm pitch, for 55 mm belt width) with pilot bore, teeth Z 28–192. Material per size: Steel, phosphated or Cast iron — see the Material column.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.DpDeDf flangeDm hubFLØ bore dMaterial Weight CAD
40655028 28 1F 124.78 mm 122.12 mm 128 mm 100 mm 70 mm 85 mm 24 mm Steel, phosphated 5.7 kg
40655029 29 1F 129.23 mm 126.57 mm 138 mm 100 mm 70 mm 85 mm 24 mm Steel, phosphated 6.4 kg
40655030 30 1F 133.69 mm 130.99 mm 138 mm 100 mm 70 mm 85 mm 24 mm Steel, phosphated 7.1 kg
40655032 32 1F 142.6 mm 139.88 mm 154 mm 100 mm 70 mm 85 mm 24 mm Steel, phosphated 7.9 kg
40655034 34 1F 151.52 mm 148.79 mm 160 mm 100 mm 70 mm 85 mm 24 mm Steel, phosphated 9.33 kg
40655036 36 1F 160.43 mm 157.68 mm 168 mm 100 mm 70 mm 85 mm 24 mm Steel, phosphated 10.49 kg
40655038 38 1F 169.34 mm 166.6 mm 183 mm 120 mm 70 mm 85 mm 24 mm Steel, phosphated 12.11 kg
40655040 40 1F 178.25 mm 175.49 mm 188 mm 120 mm 70 mm 85 mm 24 mm Steel, phosphated 13.0 kg
40655044 44 1F 196.08 mm 193.28 mm 211 mm 120 mm 70 mm 85 mm 24 mm Steel, phosphated 16.12 kg
40655048 48 6F 213.9 mm 211.11 mm 226 mm 135 mm 70 mm 70 mm 24 mm Cast iron 13.5 kg
40655056 56 6F 249.55 mm 246.76 mm 256 mm 135 mm 70 mm 70 mm 28 mm Cast iron 15.78 kg
40655064 64 6F 285.21 mm 282.41 mm 296 mm 135 mm 70 mm 70 mm 28 mm Cast iron 19.04 kg
40655072 72 5 320.86 mm 318.06 mm — 135 mm 70 mm 70 mm 28 mm Cast iron 18.41 kg
40655080 80 5 356.51 mm 353.71 mm — 135 mm 70 mm 70 mm 28 mm Cast iron 20.27 kg
40655090 90 5 401.07 mm 398.28 mm — 135 mm 70 mm 70 mm 28 mm Cast iron 22.98 kg
40655112 112 5 499.11 mm 496.32 mm — 135 mm 70 mm 70 mm 28 mm Cast iron 29.29 kg
40655144 144 5 641.71 mm 638.92 mm — 135 mm 70 mm 70 mm 28 mm Cast iron 36.0 kg
40655168 168 5 748.66 mm 745.87 mm — 135 mm 70 mm 70 mm 28 mm Cast iron 40.0 kg
40655192 192 5 855.62 mm 852.82 mm — 135 mm 70 mm 70 mm 28 mm Cast iron 47.5 kg

Product Information

Pitch
14.0 mm

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
