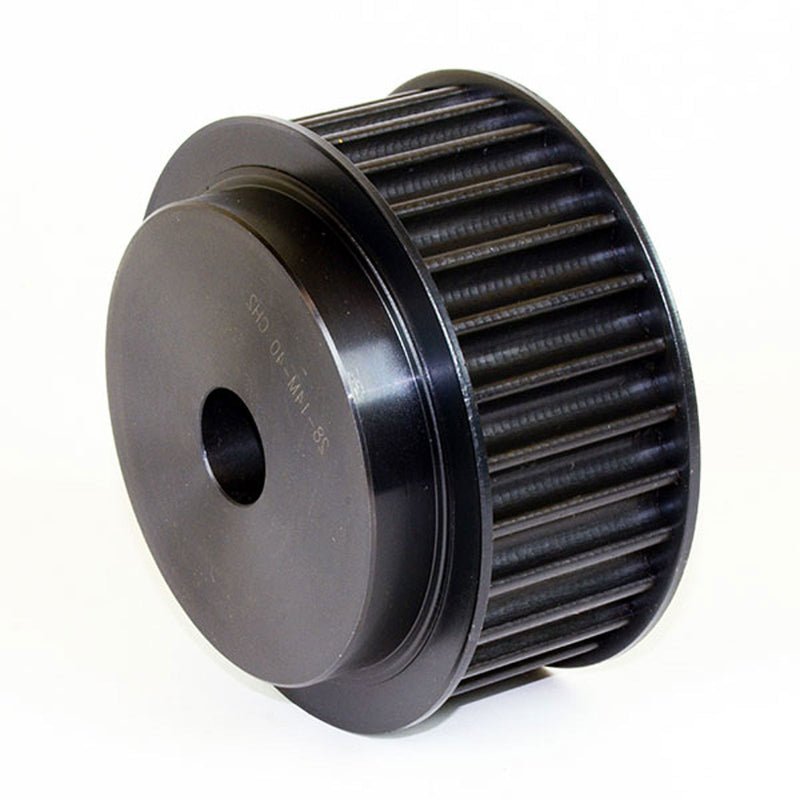

Chiaravalli HTD® Timing Pulley 14M-85 — Pilot Bore (14 mm pitch, 85 mm belt) — product photo
Chiaravalli

HTD® Timing Pulley 14M-85 — Pilot Bore (14 mm pitch, 85 mm belt)

Timing Pulleys

HTD® 14M-85 timing pulley (14 mm pitch, for 85 mm belt width) with pilot bore, teeth Z 28–192. Material per size: Steel, phosphated or Cast iron — see the Material column.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.DpDeDf flangeDm hubFLØ bore dMaterial Weight CAD
40685028 28 1F 124.78 mm 122.12 mm 128 mm 100 mm 102 mm 117 mm — Steel, phosphated 8.77 kg
40685030 30 1F 133.69 mm 130.99 mm 138 mm 100 mm 102 mm 117 mm — Steel, phosphated 9.45 kg
40685032 32 1F 142.6 mm 139.88 mm 154 mm 100 mm 102 mm 117 mm — Steel, phosphated 10.13 kg
40685034 34 1F 151.52 mm 148.79 mm 160 mm 100 mm 102 mm 117 mm — Steel, phosphated 11.65 kg
40685036 36 1F 160.43 mm 157.68 mm 168 mm 100 mm 102 mm 117 mm — Steel, phosphated 14.48 kg
40685038 38 1F 169.34 mm 166.6 mm 183 mm 120 mm 102 mm 117 mm — Steel, phosphated 16.62 kg
40685040 40 1F 178.25 mm 175.49 mm 188 mm 135 mm 102 mm 117 mm — Steel, phosphated 18.84 kg
40685044 44 1F 196.08 mm 193.28 mm 211 mm 135 mm 102 mm 117 mm — Steel, phosphated 23.0 kg
40685048 48 1F 213.9 mm 211.11 mm 226 mm 150 mm 102 mm 117 mm — Cast iron 27.58 kg
40685056 56 6F 249.55 mm 246.76 mm 256 mm 150 mm 102 mm 102 mm 32 mm Cast iron 24.19 kg
40685064 64 6F 285.21 mm 282.41 mm 296 mm 150 mm 102 mm 102 mm 32 mm Cast iron 28.57 kg
40685072 72 5 320.86 mm 318.06 mm — 150 mm 102 mm 102 mm 32 mm Cast iron 28.26 kg
40685080 80 5 356.51 mm 353.71 mm — 150 mm 102 mm 102 mm 32 mm Cast iron 31.0 kg
40685090 90 5 401.07 mm 398.28 mm — 150 mm 102 mm 102 mm 32 mm Cast iron 35.0 kg
40685112 112 5 499.11 mm 496.32 mm — 150 mm 102 mm 102 mm 32 mm Cast iron 43.5 kg
40685144 144 5 641.71 mm 638.92 mm — 150 mm 102 mm 102 mm 32 mm Cast iron 50.0 kg
40685168 168 5 748.66 mm 745.87 mm — 150 mm 102 mm 102 mm 32 mm Cast iron 63.0 kg
40685192 192 5 855.62 mm 852.82 mm — 165 mm 102 mm 102 mm 32 mm Cast iron 76.0 kg
