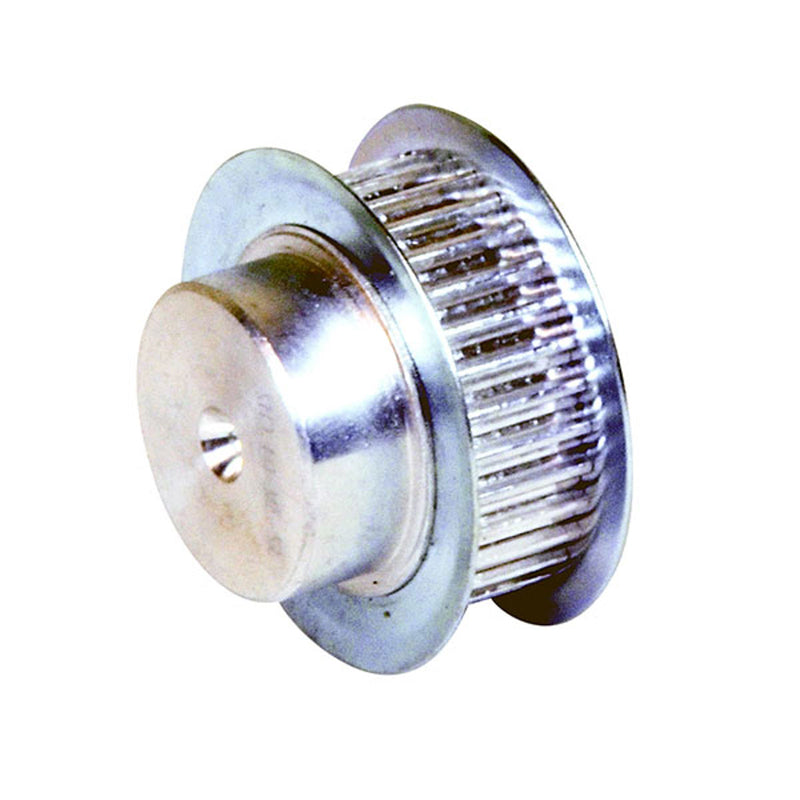

Chiaravalli HTD® Timing Pulley 3M-09 — Pilot Bore (3 mm pitch, 9 mm belt) — product photo
Chiaravalli

HTD® Timing Pulley 3M-09 — Pilot Bore (3 mm pitch, 9 mm belt)

Timing Pulleys

HTD® 3M-09 timing pulley (3 mm pitch, for 9 mm belt width) with pilot bore, teeth Z 10–72. Material: Aluminium.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.DpDeDf flangeDm hubFLØ bore d Weight CAD
40109010 10 0F 9.55 mm 8.79 mm 13 mm 13 mm 10.2 mm 17.5 mm — 0.01 kg
40109012 12 0F 11.46 mm 10.7 mm 15 mm 15 mm 10.2 mm 17.5 mm — 0.01 kg
40109014 14 0F 13.37 mm 12.61 mm 16 mm 16 mm 10.2 mm 17.5 mm — 0.01 kg
40109015 15 0F 14.32 mm 13.56 mm 17.5 mm 17.5 mm 10.2 mm 17.5 mm — 0.01 kg
40109016 16 1F 15.28 mm 14.52 mm 17.5 mm 10 mm 12.8 mm 20.6 mm 4 mm 0.01 kg
40109018 18 1F 17.19 mm 16.43 mm 20 mm 11 mm 12.8 mm 20.6 mm 6 mm 0.01 kg
40109020 20 1F 19.1 mm 18.34 mm 23 mm 13 mm 12.8 mm 20.6 mm 6 mm 0.01 kg
40109021 21 1F 20.05 mm 19.29 mm 25 mm 13 mm 12.8 mm 20.6 mm 6 mm 0.01 kg
40109022 22 1F 21.01 mm 20.25 mm 25 mm 13 mm 12.8 mm 20.6 mm 6 mm 0.01 kg
40109024 24 1F 22.92 mm 22.16 mm 25 mm 13 mm 12.8 mm 20.6 mm 6 mm 0.02 kg
40109026 26 1F 24.83 mm 24.07 mm 28 mm 16 mm 12.8 mm 20.6 mm 6 mm 0.02 kg
40109028 28 1F 26.74 mm 25.98 mm 32 mm 18 mm 12.8 mm 20.6 mm 6 mm 0.02 kg
40109030 30 1F 28.65 mm 27.89 mm 32 mm 20 mm 12.8 mm 20.6 mm 6 mm 0.3 kg
40109032 32 1F 30.56 mm 29.8 mm 36 mm 22 mm 12.8 mm 20.6 mm 6 mm 0.3 kg
40109036 36 1F 34.38 mm 33.62 mm 39 mm 26 mm 13.4 mm 22.2 mm 6 mm 0.05 kg
40109040 40 1F 38.2 mm 37.44 mm 42 mm 28 mm 13.4 mm 22.2 mm 6 mm 0.06 kg
40109044 44 1F 42.02 mm 41.26 mm 48 mm 33 mm 13.4 mm 22.2 mm 6 mm 0.07 kg
40109048 48 8 45.84 mm 45.08 mm — 33 mm 13.4 mm 22.2 mm 8 mm 0.11 kg
40109060 60 8 57.3 mm 56.54 mm — 33 mm 13.4 mm 22.2 mm 8 mm 0.11 kg
40109072 72 8 68.75 mm 67.99 mm — 33 mm 13.4 mm 22.2 mm 8 mm 0.15 kg

Product Information

Material
Aluminium
Pitch
3.0 mm
