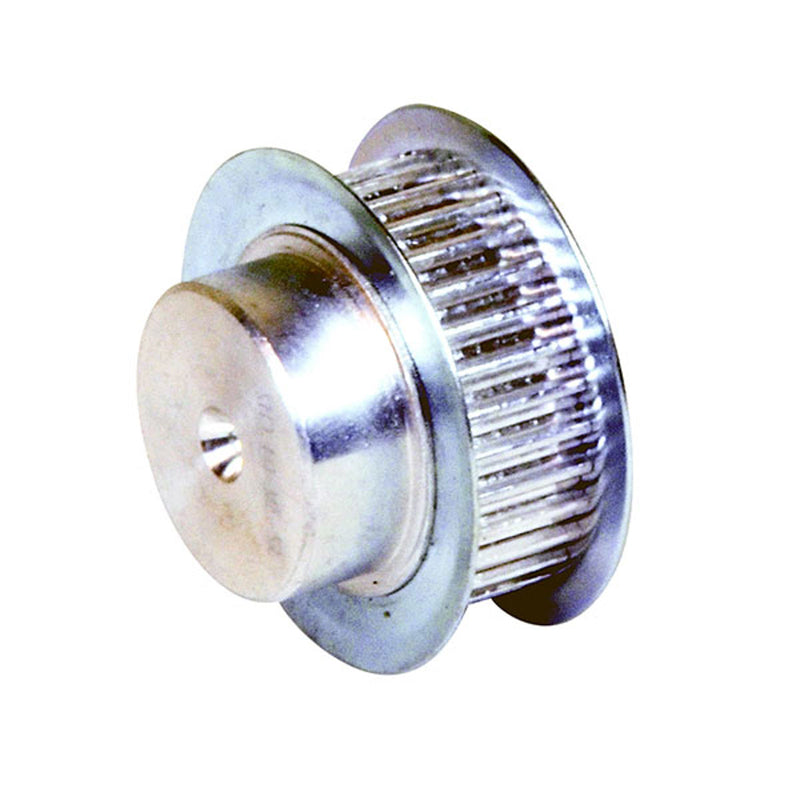

Chiaravalli HTD® Timing Pulley 3M-15 — Pilot Bore (3 mm pitch, 15 mm belt) — product photo
Chiaravalli

HTD® Timing Pulley 3M-15 — Pilot Bore (3 mm pitch, 15 mm belt)

Timing Pulleys

HTD® 3M-15 timing pulley (3 mm pitch, for 15 mm belt width) with pilot bore, teeth Z 10–72. Material: Aluminium.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.DpDeDf flangeDm hubFLØ bore d Weight CAD
40115010 10 0F 9.55 mm 8.79 mm 13 mm 13 mm 17 mm 26 mm — 0.01 kg
40115012 12 0F 11.46 mm 10.7 mm 15 mm 15 mm 17 mm 26 mm — 0.01 kg
40115014 14 0F 13.37 mm 12.61 mm 16 mm 16 mm 17 mm 26 mm — 0.01 kg
40115015 15 0F 14.32 mm 13.56 mm 17.5 mm 17.5 mm 17 mm 26 mm — 0.01 kg
40115016 16 1F 15.28 mm 14.52 mm 17.5 mm 10 mm 19.5 mm 26 mm 4 mm 0.01 kg
40115018 18 1F 17.19 mm 16.43 mm 20 mm 11 mm 19.5 mm 26 mm 6 mm 0.01 kg
40115020 20 1F 19.1 mm 18.34 mm 23 mm 13 mm 19.5 mm 26 mm 6 mm 0.01 kg
40115021 21 1F 20.05 mm 19.29 mm 25 mm 13 mm 19.5 mm 26 mm 6 mm 0.02 kg
40115022 22 1F 21.01 mm 20.25 mm 25 mm 13 mm 19.5 mm 26 mm 6 mm 0.02 kg
40115024 24 1F 22.92 mm 22.16 mm 25 mm 13 mm 19.5 mm 26 mm 6 mm 0.02 kg
40115026 26 1F 24.83 mm 24.07 mm 28 mm 16 mm 19.5 mm 26 mm 6 mm 0.03 kg
40115028 28 1F 26.74 mm 25.98 mm 32 mm 18 mm 19.5 mm 26 mm 6 mm 0.03 kg
40115030 30 1F 28.65 mm 27.89 mm 32 mm 20 mm 19.5 mm 26 mm 6 mm 0.04 kg
40115032 32 1F 30.56 mm 29.8 mm 36 mm 22 mm 19.5 mm 26 mm 6 mm 0.04 kg
40115036 36 1F 34.38 mm 33.62 mm 39 mm 26 mm 20 mm 30 mm 6 mm 0.06 kg
40115040 40 1F 38.2 mm 37.44 mm 42 mm 28 mm 20 mm 30 mm 6 mm 0.08 kg
40115044 44 1F 42.02 mm 41.26 mm 48 mm 33 mm 20 mm 30 mm 6 mm 0.1 kg
40115048 48 8 45.84 mm 45.08 mm — 33 mm 20 mm 30 mm 8 mm 0.1 kg
40115060 60 8 57.3 mm 56.54 mm — 33 mm 20 mm 30 mm 8 mm 0.15 kg
40115072 72 8 68.75 mm 67.99 mm — 33 mm 20 mm 30 mm 8 mm 0.21 kg

Product Information

Material
Aluminium
Pitch
3.0 mm

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
