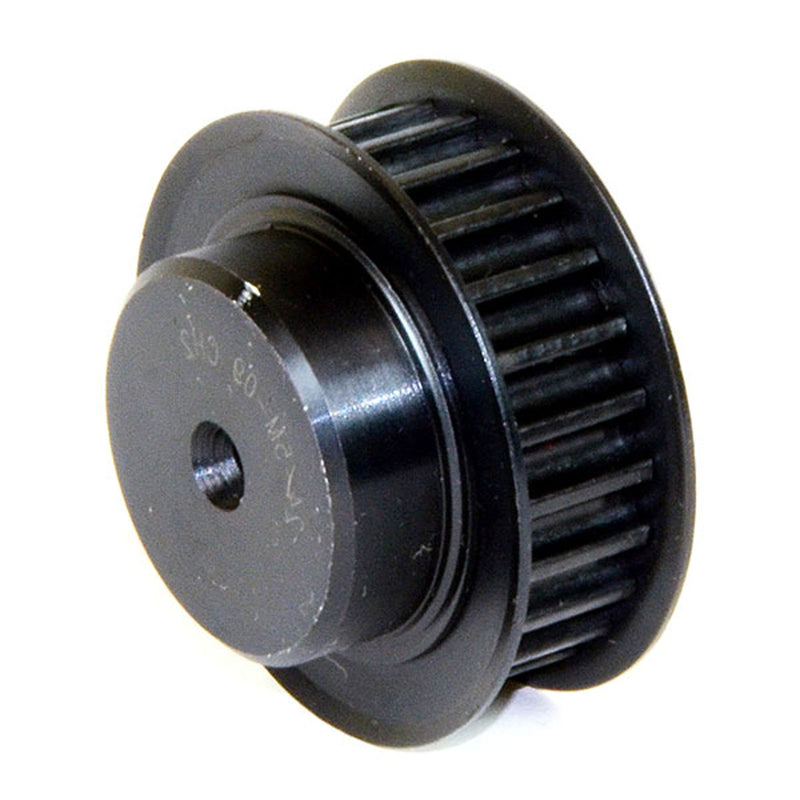

Chiaravalli HTD® Timing Pulley 5M-25 — Pilot Bore (5 mm pitch, 25 mm belt) — product photo
Chiaravalli

HTD® Timing Pulley 5M-25 — Pilot Bore (5 mm pitch, 25 mm belt)

Timing Pulleys

HTD® 5M-25 timing pulley (5 mm pitch, for 25 mm belt width) with pilot bore, teeth Z 12–72. Material per size: Steel, phosphated or Aluminium — see the Material column. Aluminium pulleys are not phosphated.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.DpDeDf flangeDm hubFLØ bore dMaterial Weight CAD
40225012 12 1F 19.1 mm 17.96 mm 23 mm 12 mm 30.5 mm 36 mm — Steel, phosphated 0.05 kg
40225014 14 1F 22.28 mm 21.14 mm 25 mm 13 mm 30.5 mm 36 mm 6 mm Steel, phosphated 0.08 kg
40225015 15 1F 23.87 mm 22.73 mm 28 mm 16 mm 30.5 mm 36 mm 6 mm Steel, phosphated 0.09 kg
40225016 16 1F 25.46 mm 24.32 mm 28 mm 16.5 mm 30.5 mm 36 mm 6 mm Steel, phosphated 0.11 kg
40225018 18 1F 28.65 mm 27.51 mm 32 mm 20 mm 30.5 mm 36 mm 6 mm Steel, phosphated 0.13 kg
40225020 20 1F 31.83 mm 30.69 mm 36 mm 23 mm 30.5 mm 36 mm 6 mm Steel, phosphated 0.17 kg
40225021 21 1F 33.42 mm 32.28 mm 38 mm 24 mm 30.5 mm 38 mm 6 mm Steel, phosphated 0.2 kg
40225022 22 1F 35.01 mm 33.87 mm 39 mm 25.5 mm 30.5 mm 38 mm 6 mm Steel, phosphated 0.22 kg
40225024 24 1F 38.2 mm 37.06 mm 42 mm 27 mm 30.5 mm 38 mm 6 mm Steel, phosphated 0.26 kg
40225026 26 1F 41.38 mm 40.24 mm 44 mm 30 mm 30.5 mm 38 mm 6 mm Steel, phosphated 0.32 kg
40225028 28 1F 44.56 mm 43.42 mm 48 mm 30.5 mm 30.5 mm 38 mm 6 mm Steel, phosphated 0.37 kg
40225030 30 1F 47.75 mm 46.6 mm 51 mm 35 mm 30.5 mm 38 mm 6 mm Steel, phosphated 0.42 kg
40225032 32 1F 50.93 mm 49.79 mm 54 mm 38 mm 30.5 mm 38 mm 8 mm Steel, phosphated 0.48 kg
40225036 36 1F 57.3 mm 56.16 mm 60 mm 38 mm 30.5 mm 38 mm 8 mm Steel, phosphated 0.59 kg
40225040 40 1F 63.66 mm 62.52 mm 71 mm 38 mm 30.5 mm 38 mm 8 mm Steel, phosphated 0.75 kg
40225044 44 8 70.03 mm 68.89 mm — 38 mm 30.5 mm 40 mm 8 mm Aluminium 0.32 kg
40225048 48 3 76.39 mm 75.25 mm — 38 mm 30.5 mm 40 mm 8 mm Aluminium 0.28 kg
40225060 60 3 95.49 mm 94.35 mm — 50 mm 30.5 mm 40 mm 8 mm Aluminium 0.44 kg
40225072 72 3 114.59 mm 113.45 mm — 50 mm 30.5 mm 40 mm 8 mm Aluminium 0.85 kg

Product Information

Pitch
5.0 mm
