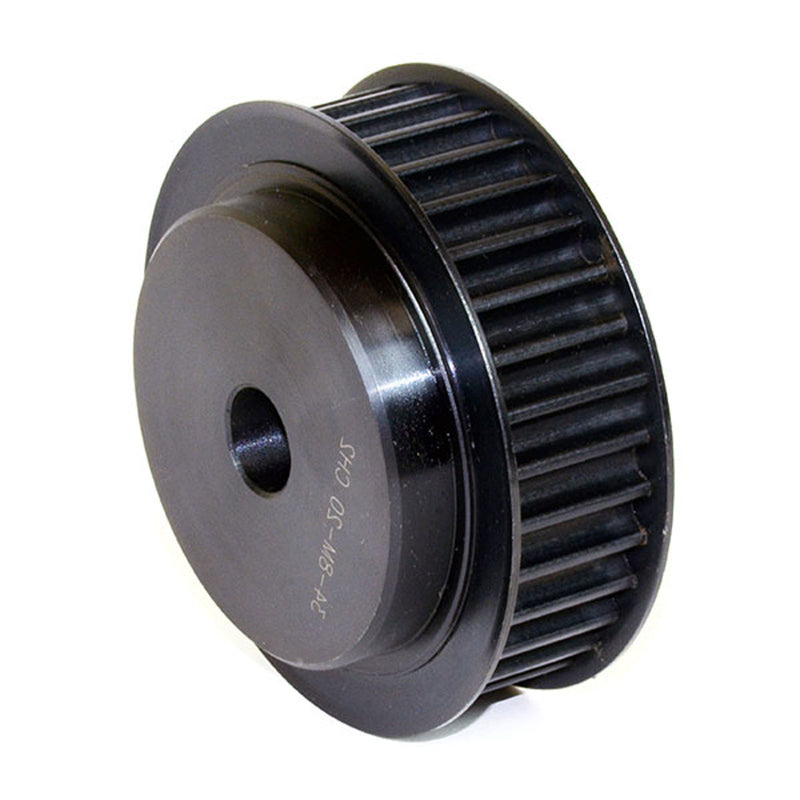

Chiaravalli HTD® Timing Pulley 8M-20 — Pilot Bore (8 mm pitch, 20 mm belt) — product photo
Chiaravalli

HTD® Timing Pulley 8M-20 — Pilot Bore (8 mm pitch, 20 mm belt)

Timing Pulleys

HTD® 8M-20 timing pulley (8 mm pitch, for 20 mm belt width) with pilot bore, teeth Z 22–144. Material per size: Steel, phosphated or Cast iron — see the Material column.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.DpDeDf flangeDm hubFLØ bore dMaterial Weight CAD
40420022 22 1F 56.02 mm 54.65 mm 60 mm 43 mm 28 mm 38 mm 12 mm Steel, phosphated 0.54 kg
40420024 24 1F 61.12 mm 59.75 mm 66 mm 45 mm 28 mm 38 mm 12 mm Steel, phosphated 0.65 kg
40420026 26 1F 66.21 mm 64.85 mm 70 mm 48 mm 28 mm 38 mm 12 mm Steel, phosphated 0.8 kg
40420028 28 1F 71.3 mm 70.08 mm 75 mm 50 mm 28 mm 38 mm 15 mm Steel, phosphated 0.88 kg
40420030 30 1F 76.39 mm 75.13 mm 82.5 mm 55 mm 28 mm 38 mm 15 mm Steel, phosphated 1.0 kg
40420032 32 1F 81.49 mm 80.16 mm 87 mm 60 mm 28 mm 38 mm 15 mm Steel, phosphated 1.2 kg
40420034 34 1F 86.58 mm 85.22 mm 91 mm 66 mm 28 mm 38 mm 15 mm Steel, phosphated 1.4 kg
40420036 36 1F 91.67 mm 90.3 mm 97 mm 70 mm 28 mm 38 mm 15 mm Steel, phosphated 1.6 kg
40420038 38 1F 96.77 mm 95.39 mm 102 mm 75 mm 28 mm 38 mm 15 mm Steel, phosphated 1.7 kg
40420040 40 1F 101.86 mm 100.49 mm 106 mm 75 mm 28 mm 38 mm 15 mm Steel, phosphated 1.85 kg
40420044 44 1F 112.05 mm 110.67 mm 120 mm 75 mm 28 mm 38 mm 15 mm Steel, phosphated 2.1 kg
40420048 48 1F 122.23 mm 120.86 mm 128 mm 75 mm 28 mm 38 mm 15 mm Steel, phosphated 2.5 kg
40420056 56 2F 142.6 mm 141.23 mm 150 mm 80 mm 28 mm 38 mm 15 mm Steel, phosphated 2.82 kg
40420064 64 2F 162.97 mm 161.6 mm 168 mm 80 mm 28 mm 38 mm 15 mm Steel, phosphated 3.22 kg
40420072 72 2F 183.35 mm 181.97 mm 192 mm 80 mm 28 mm 38 mm 15 mm Steel, phosphated 3.74 kg
40420080 80 3 203.72 mm 202.35 mm — 90 mm 28 mm 38 mm 15 mm Cast iron 3.78 kg
40420090 90 3 229.18 mm 227.81 mm — 90 mm 28 mm 38 mm 15 mm Cast iron 4.57 kg
40420144 144 4 366.69 mm 365.32 mm — 90 mm 28 mm 38 mm 20 mm Cast iron 5.2 kg

Product Information

Pitch
8.0 mm
