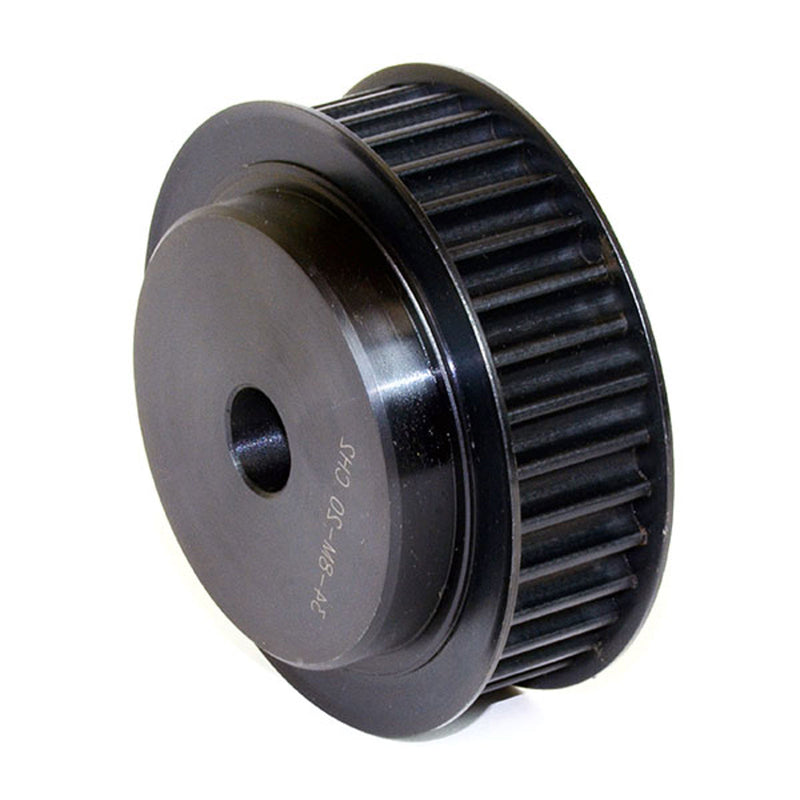

Chiaravalli HTD® Timing Pulley 8M-30 — Pilot Bore (8 mm pitch, 30 mm belt) — product photo
Chiaravalli

HTD® Timing Pulley 8M-30 — Pilot Bore (8 mm pitch, 30 mm belt)

Timing Pulleys

HTD® 8M-30 timing pulley (8 mm pitch, for 30 mm belt width) with pilot bore, teeth Z 22–192. Material per size: Steel, phosphated or Cast iron — see the Material column.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.DpDeDf flangeDm hubFLØ bore dMaterial Weight CAD
40430022 22 1F 56.02 mm 54.65 mm 60 mm 43 mm 38 mm 48 mm 12 mm Steel, phosphated 0.75 kg
40430024 24 1F 61.12 mm 59.75 mm 66 mm 45 mm 38 mm 48 mm 12 mm Steel, phosphated 0.9 kg
40430026 26 1F 66.21 mm 64.85 mm 70 mm 48 mm 38 mm 48 mm 12 mm Steel, phosphated 1.1 kg
40430028 28 1F 71.3 mm 70.08 mm 75 mm 50 mm 38 mm 48 mm 15 mm Steel, phosphated 1.2 kg
40430030 30 1F 76.39 mm 75.13 mm 82.5 mm 55 mm 38 mm 48 mm 15 mm Steel, phosphated 1.32 kg
40430032 32 1F 81.49 mm 80.16 mm 87 mm 60 mm 38 mm 48 mm 15 mm Steel, phosphated 1.55 kg
40430034 34 1F 86.58 mm 85.22 mm 91 mm 66 mm 38 mm 48 mm 15 mm Steel, phosphated 1.8 kg
40430036 36 1F 91.67 mm 90.3 mm 97 mm 70 mm 38 mm 48 mm 15 mm Steel, phosphated 2.1 kg
40430038 38 1F 96.77 mm 95.39 mm 102 mm 75 mm 38 mm 48 mm 15 mm Steel, phosphated 2.3 kg
40430040 40 1F 101.86 mm 100.49 mm 106 mm 75 mm 38 mm 48 mm 15 mm Steel, phosphated 2.47 kg
40430044 44 1F 112.05 mm 110.67 mm 120 mm 75 mm 38 mm 48 mm 15 mm Steel, phosphated 2.95 kg
40430048 48 1F 122.23 mm 120.86 mm 128 mm 75 mm 38 mm 48 mm 15 mm Steel, phosphated 3.3 kg
40430056 56 2F 142.6 mm 141.23 mm 150 mm 90 mm 38 mm 48 mm 15 mm Steel, phosphated 4.02 kg
40430064 64 2F 162.97 mm 161.6 mm 168 mm 90 mm 38 mm 48 mm 15 mm Steel, phosphated 4.6 kg
40430072 72 2F 183.35 mm 181.97 mm 192 mm 95 mm 38 mm 48 mm 15 mm Steel, phosphated 5.41 kg
40430080 80 3 203.72 mm 202.35 mm — 100 mm 38 mm 48 mm 15 mm Cast iron 5.23 kg
40430090 90 3 229.18 mm 227.81 mm — 100 mm 38 mm 48 mm 15 mm Cast iron 6.42 kg
40430112 112 4 285.21 mm 283.83 mm — 100 mm 38 mm 48 mm 18 mm Cast iron 8.12 kg
40430144 144 4 366.69 mm 365.32 mm — 100 mm 38 mm 48 mm 20 mm Cast iron 10.36 kg
40430168 168 4 427.81 mm 426.44 mm — 100 mm 38 mm 48 mm 20 mm Cast iron 12.37 kg
40430192 192 4 488.92 mm 487.55 mm — 100 mm 38 mm 48 mm 20 mm Cast iron 14.31 kg

Product Information

Pitch
8.0 mm

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
