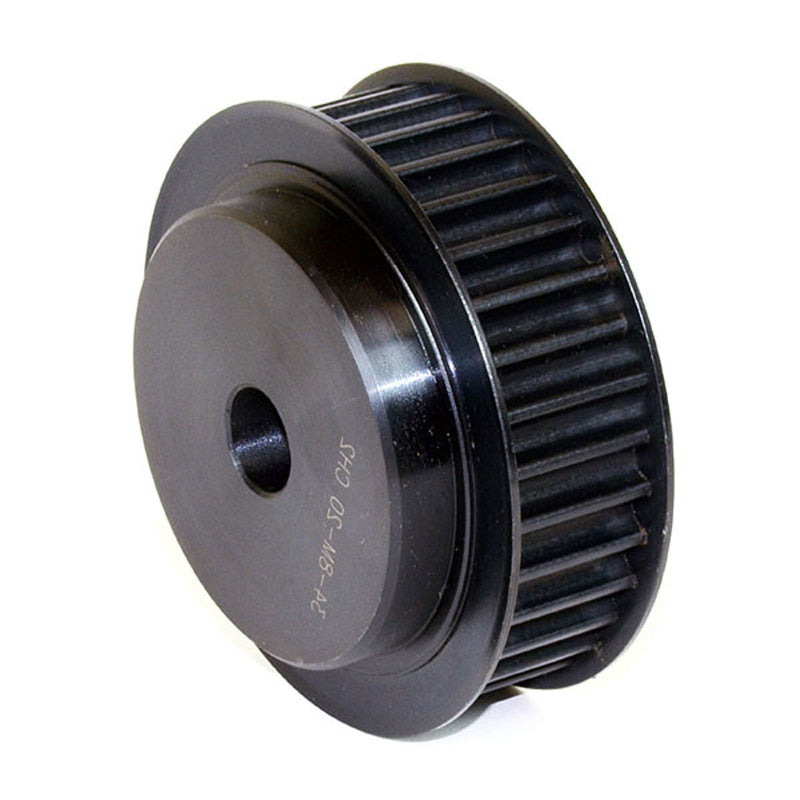

HTD® Timing Pulley 8M-50 — Pilot Bore (8 mm pitch, 50 mm belt)

Timing Pulleys

HTD® 8M-50 timing pulley (8 mm pitch, for 50 mm belt width) with pilot bore, teeth Z 22–192. Material per size: Steel, phosphated or Cast iron — see the Material column.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.DpDeDf flangeDm hubFLØ bore dMaterial Weight CAD
40450022 22 1F 56.02 mm 54.65 mm 60 mm 43 mm 60 mm 70 mm — Steel, phosphated 1.1 kg
40450024 24 1F 61.12 mm 59.75 mm 66 mm 45 mm 60 mm 70 mm — Steel, phosphated 1.2 kg
40450026 26 1F 66.21 mm 64.85 mm 70 mm 48 mm 60 mm 70 mm — Steel, phosphated 1.6 kg
40450028 28 1F 71.3 mm 70.08 mm 75 mm 50 mm 60 mm 70 mm — Steel, phosphated 1.7 kg
40450030 30 1F 76.39 mm 75.13 mm 82.5 mm 55 mm 60 mm 70 mm — Steel, phosphated 2.0 kg
40450032 32 1F 81.49 mm 80.16 mm 87 mm 60 mm 60 mm 70 mm — Steel, phosphated 2.35 kg
40450034 34 1F 86.58 mm 85.22 mm 91 mm 66 mm 60 mm 70 mm — Steel, phosphated 2.8 kg
40450036 36 1F 91.67 mm 90.3 mm 97 mm 70 mm 60 mm 70 mm — Steel, phosphated 3.1 kg
40450038 38 1F 96.77 mm 95.39 mm 102 mm 75 mm 60 mm 70 mm — Steel, phosphated 3.3 kg
40450040 40 1F 101.86 mm 100.49 mm 106 mm 75 mm 60 mm 70 mm — Steel, phosphated 3.6 kg
40450044 44 1F 112.05 mm 110.67 mm 120 mm 75 mm 60 mm 70 mm — Steel, phosphated 4.4 kg
40450048 48 1F 122.23 mm 120.86 mm 128 mm 80 mm 60 mm 70 mm — Steel, phosphated 5.0 kg
40450056 56 6F 142.6 mm 141.23 mm 150 mm 90 mm 60 mm 60 mm 18 mm Steel, phosphated 5.68 kg
40450064 64 6F 162.97 mm 161.6 mm 168 mm 100 mm 60 mm 60 mm 18 mm Steel, phosphated 6.93 kg
40450072 72 6F 183.35 mm 181.97 mm 192 mm 100 mm 60 mm 60 mm 18 mm Steel, phosphated 7.95 kg
40450080 80 7 203.72 mm 202.35 mm — 110 mm 60 mm 60 mm 18 mm Cast iron 7.96 kg
40450090 90 7 229.18 mm 227.81 mm — 110 mm 60 mm 60 mm 18 mm Cast iron 9.2 kg
40450112 112 5 285.21 mm 283.83 mm — 110 mm 60 mm 60 mm 18 mm Cast iron 12.16 kg
40450144 144 5 366.69 mm 365.32 mm — 110 mm 60 mm 60 mm 20 mm Cast iron 15.68 kg
40450168 168 5 427.81 mm 426.44 mm — 120 mm 60 mm 60 mm 20 mm Cast iron 18.99 kg
40450192 192 5 488.92 mm 487.55 mm — 130 mm 60 mm 60 mm 20 mm Cast iron 21.09 kg

Product Information

Pitch
8.0 mm

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.

Contact Us
