Chiaravalli Idler Sprocket with Economic Bearing
Chiaravalli

Idler Sprocket with Economic Bearing

Chain Sprockets

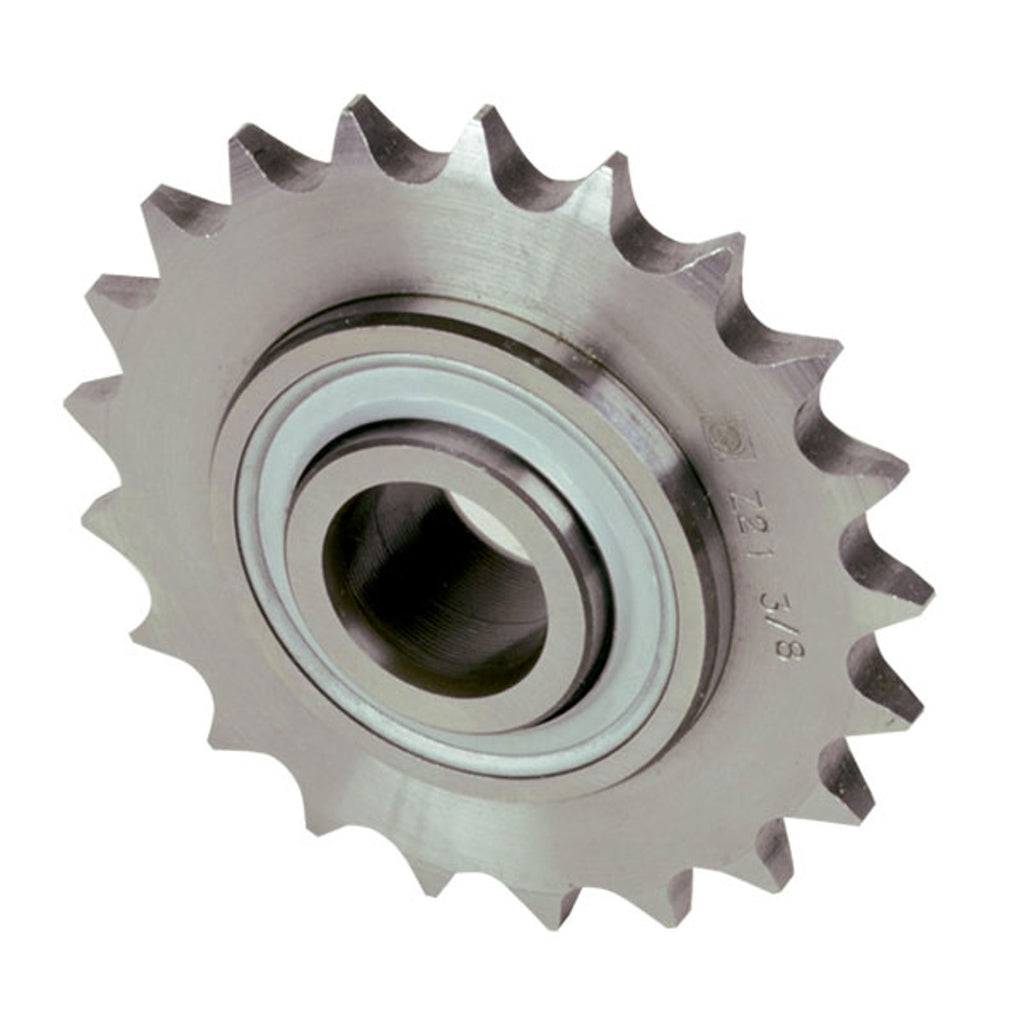

Chain tensioning idler sprocket supplied complete with economic bearing, ready for assembly in special tension or transmission points. The accurate machining and stable assembly on a dual protective shield ball bearing ensure greater resistance to loads and wear. The central elongated ring of the bearing facilitates assembly on special machines of every type.

Product Configuration

Select a row to add it to your quote

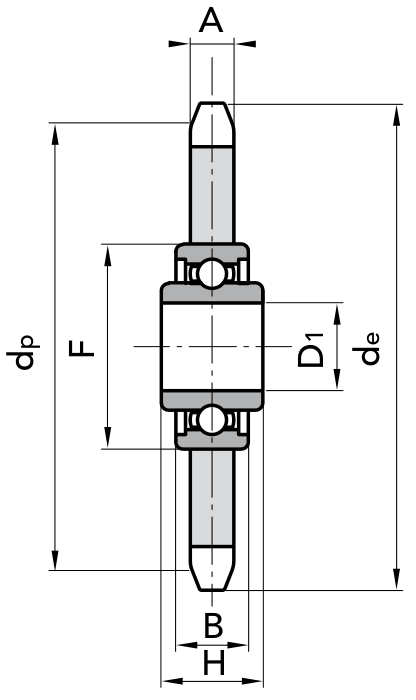

Code ZPitchdedpAD1FBH Weight CAD
30008023 23 8 x 3 62.15 mm 58.75 mm 2.8 mm 16 mm 40 mm 12 mm 18.3 mm 0.13 kg
30009021 21 3/8″ x 7/32” 68 mm 63.9 mm 5.3 mm 16 mm 40 mm 12 mm 18.3 mm 0.15 kg
30009022 22 3/8″ x 7/32” 71 mm 66.93 mm 5.3 mm 16 mm 40 mm 12 mm 18.3 mm 0.16 kg
30010018 18 1/2″ x 1/8” 78.9 mm 73.14 mm 3 mm 16 mm 40 mm 12 mm 18.3 mm 0.18 kg
30011015 15 1/2″ x 3/16” 66.8 mm 61.09 mm 4.5 mm 16 mm 40 mm 12 mm 18.3 mm 0.16 kg
30011016 16 1/2″ x 3/16” 70.9 mm 65.1 mm 4.5 mm 16 mm 40 mm 12 mm 18.3 mm 0.17 kg
30011018 18 1/2″ x 3/16” 78.9 mm 73.13 mm 4.5 mm 16 mm 40 mm 12 mm 18.3 mm 0.2 kg
30012014 14 1/2″ x 5/16” 61.8 mm 57.07 mm 7.2 mm 16 mm 40 mm 12 mm 18.3 mm 0.13 kg
30012016 16 1/2″ x 5/16” 69.5 mm 65.1 mm 7.2 mm 16 mm 40 mm 12 mm 18.3 mm 0.17 kg
30012018 18 1/2″ x 5/16” 77.8 mm 73.14 mm 7.2 mm 16 mm 40 mm 12 mm 18.3 mm 0.22 kg
30015014 14 5/8″ x 3/8” 78 mm 71.34 mm 9.1 mm 16 mm 40 mm 12 mm 18.3 mm 0.23 kg
30015015 15 5/8″ x 3/8” 83 mm 76.36 mm 9.1 mm 16 mm 40 mm 12 mm 18.3 mm 0.27 kg
30015017 17 5/8″ x 3/8” 93 mm 86.39 mm 9.1 mm 16 mm 40 mm 12 mm 18.3 mm 0.36 kg
30019013 13 3/4″ x 7/16” 87.5 mm 79.59 mm 11.1 mm 16 mm 40 mm 12 mm 18.3 mm 0.34 kg
30019015 15 3/4″ x 7/16” 99.8 mm 91.63 mm 11.1 mm 16 mm 40 mm 12 mm 18.3 mm 0.47 kg
30025012 12 1″ x 17.02 109 mm 98.14 mm 16.2 mm 20 mm 47 mm 14 mm 17.7 mm 0.72 kg
30031013 13 1”1/4 x 3/4” 147.8 mm 132.65 mm 18.5 mm 25 mm 52 mm 15 mm 21 mm 1.64 kg
View supplier page (CAD)
