Chiaravalli Idler Sprocket with INA KRR-AH02-C5 Bearing
Chiaravalli

Idler Sprocket with INA KRR-AH02-C5 Bearing

Chain Sprockets

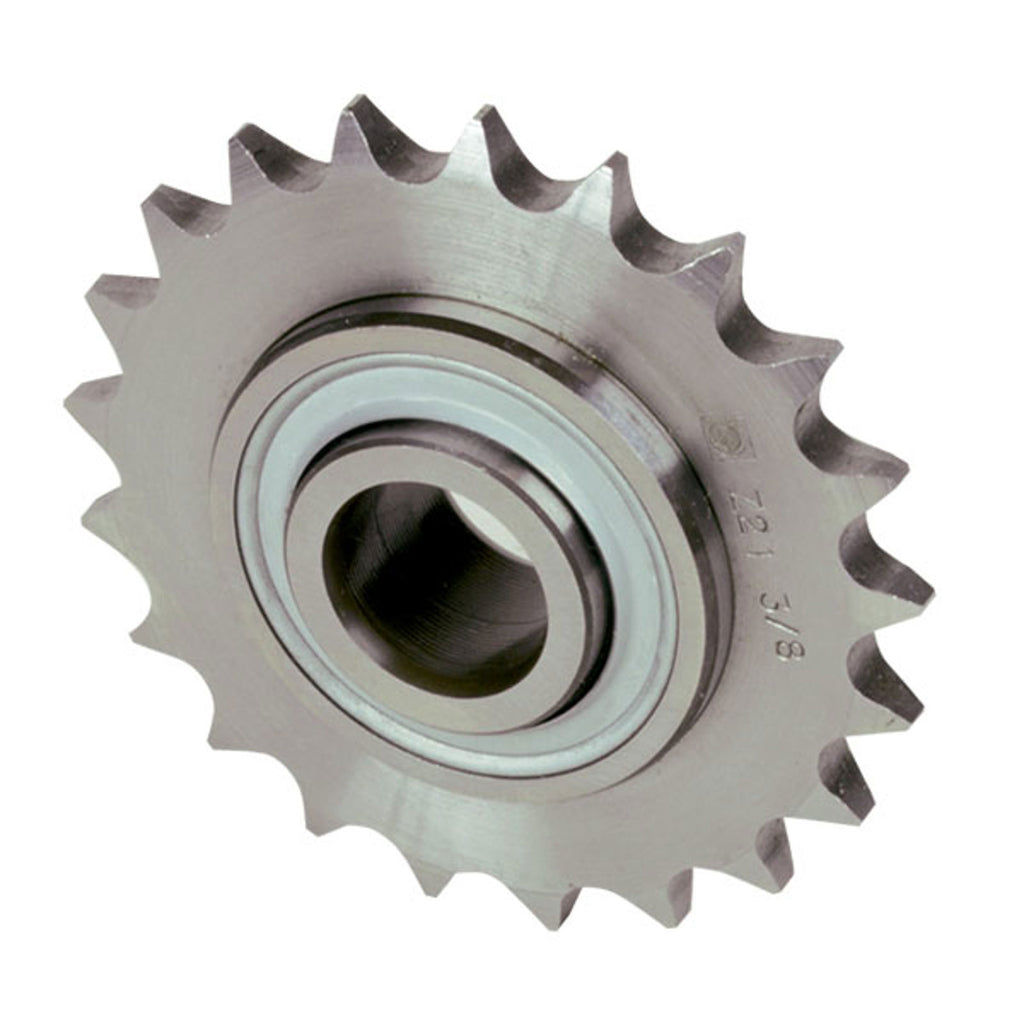

Chain tensioning idler sprocket supplied complete with INA KRR-AH02-C5 bearing, ready for assembly in special tension or transmission points. The accurate machining and stable assembly on a dual protective shield ball bearing ensure greater resistance to loads and wear. The central elongated ring of the bearing facilitates assembly on special machines of every type.

Product Configuration

Select a row to add it to your quote

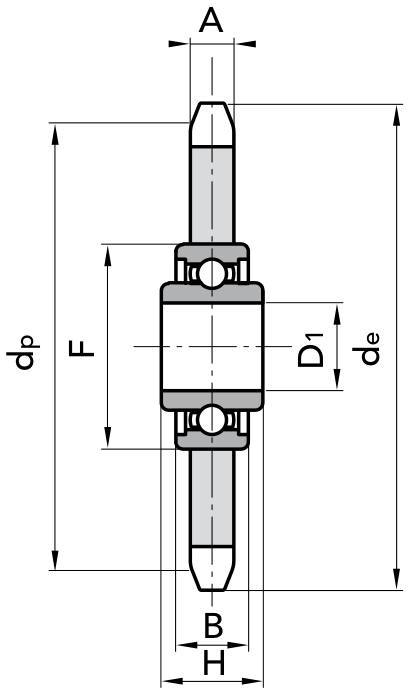

Code ZPitchdedpAD1FBH Weight CAD
30008123 23 8 x 3 62.15 mm 58.75 mm 2.8 mm 16 mm 40 mm 12 mm 18.3 mm 0.13 kg
30009121 21 3/8″ x 7/32” 68 mm 63.9 mm 5.3 mm 16 mm 40 mm 12 mm 18.3 mm 0.15 kg
30010118 18 1/2″ x 1/8” 78.9 mm 73.14 mm 3 mm 16 mm 40 mm 12 mm 18.3 mm 0.18 kg
30011118 18 SPROCKET 1/2″ x 3/16” 78.9 mm 73.13 mm 4.5 mm 16 mm 40 mm 12 mm 18.3 mm 0.2 kg
30012116 16 1/2″ x 5/16” 69.5 mm 65.1 mm 7.2 mm 16 mm 40 mm 12 mm 18.3 mm 0.17 kg
30012118 18 1/2″ x 5/16” 77.8 mm 73.14 mm 7.2 mm 16 mm 40 mm 12 mm 18.3 mm 0.22 kg
30015114 14 5/8″ x 3/8” 78 mm 71.34 mm 9.1 mm 16 mm 40 mm 12 mm 18.3 mm 0.23 kg
30015115 15 IDLER 5/8″ x 3/8” 83 mm 76.36 mm 9.1 mm 16 mm 40 mm 12 mm 18.3 mm 0.27 kg
30015117 17 5/8″ x 3/8” 93 mm 86.39 mm 9.1 mm 16 mm 40 mm 12 mm 18.3 mm 0.36 kg
30019113 13 3/4″ x 7/16” 87.5 mm 79.59 mm 11.1 mm 16 mm 40 mm 12 mm 18.3 mm 0.34 kg
30019115 15 3/4″ x 7/16” 99.8 mm 91.63 mm 11.1 mm 16 mm 40 mm 12 mm 18.3 mm 0.47 kg
30025112 12 1″ x 17.02 109 mm 98.14 mm 16.2 mm 20 mm 47 mm 14 mm 17.7 mm 0.72 kg
30031113 13 1”1/4 x 3/4” 147.8 mm 132.65 mm 18.5 mm 25 mm 52 mm 15 mm 21 mm 1.64 kg
