Chiaravalli Locking Element RCK 11 (Self Centring)
Chiaravalli

Locking Element RCK 11 (Self Centring)

Locking Elements · RCK 11

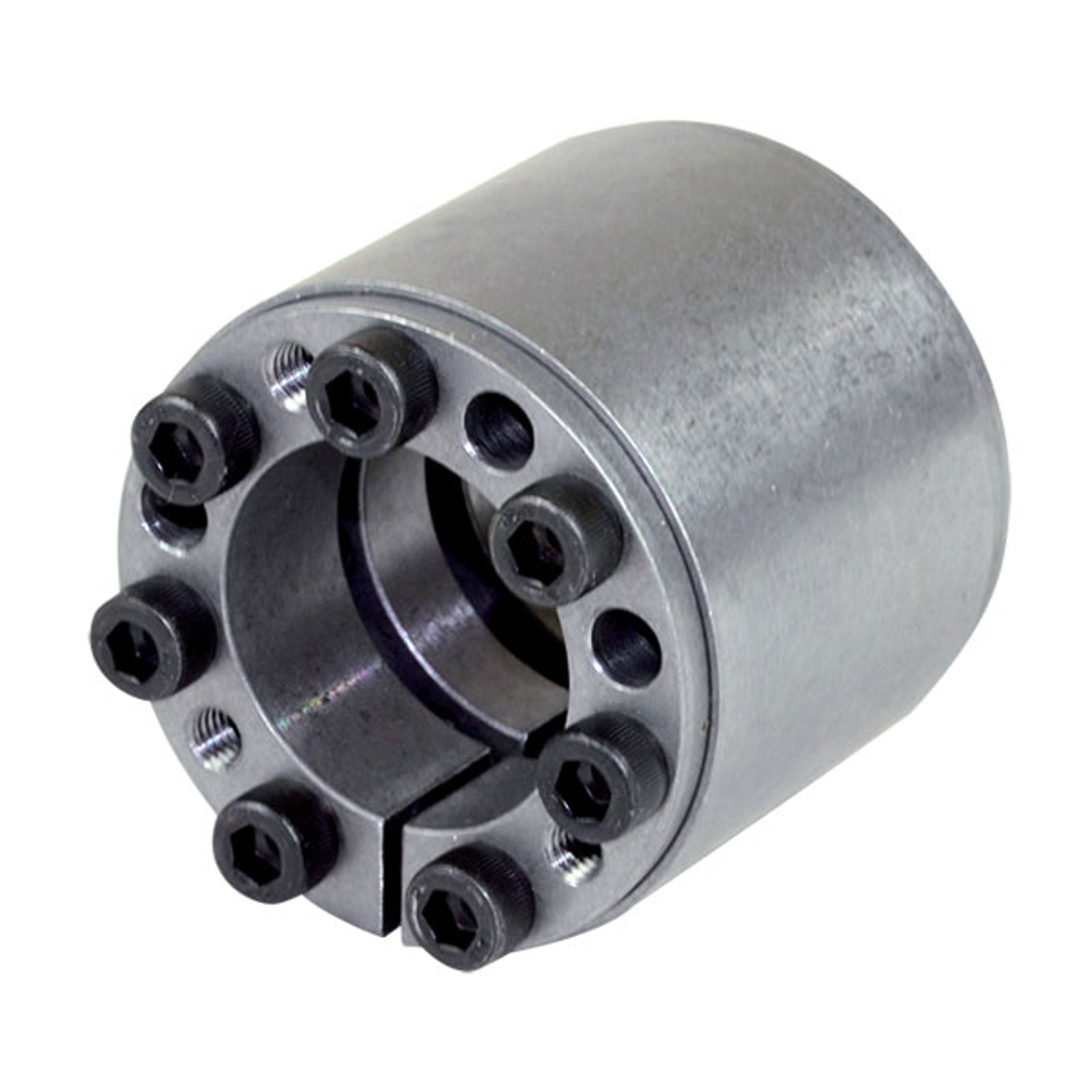

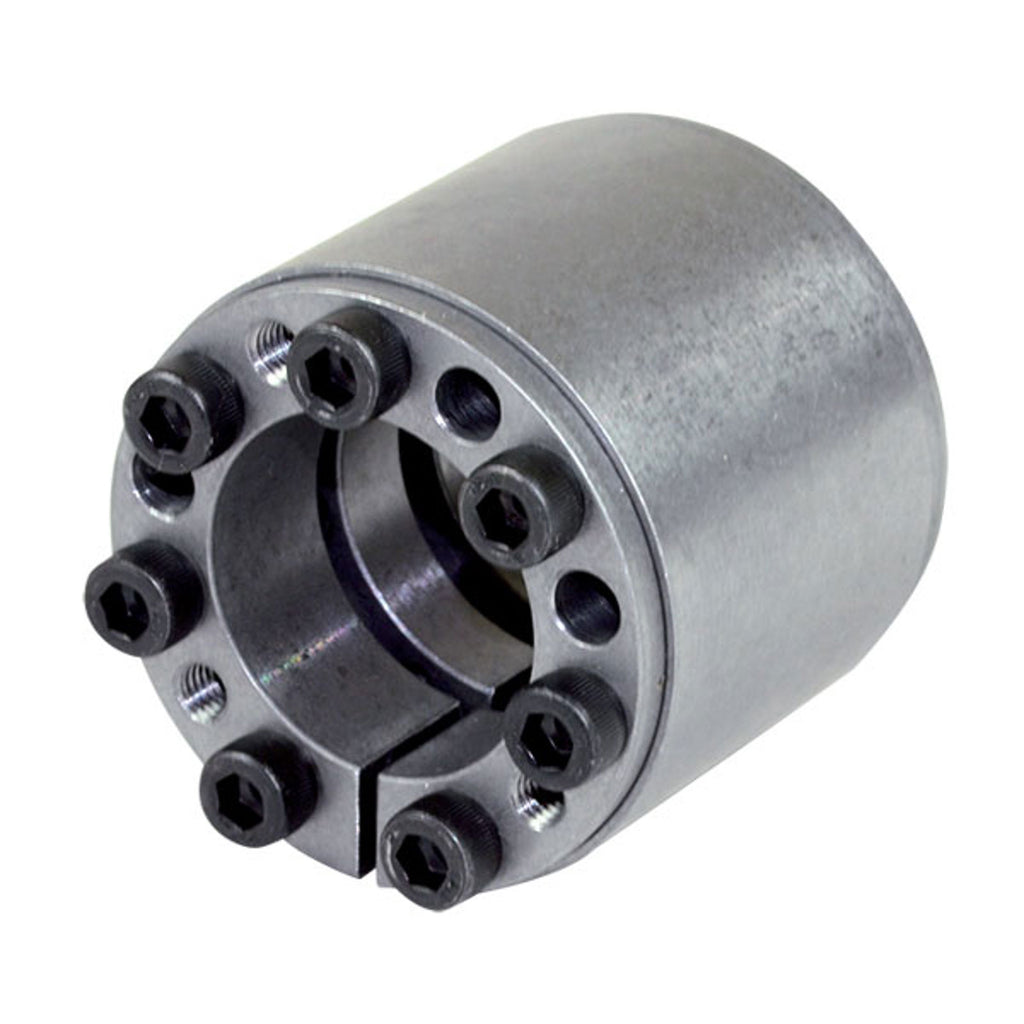

RCK 11 locking element (shaft clamping element), self centring type — keyless friction connection between shaft and hub.

Suitable for assemblies where special, even heavy-duty conditions are required, achieving maximum friction clamping results. It incorporates the best features of all the models which have been presented. It operates with very high torque values.

Recommended machining tolerances for the pressure surfaces: Ø h8 for shaft, Ø H8 for hub.

Product Configuration

Select a row to add it to your quote

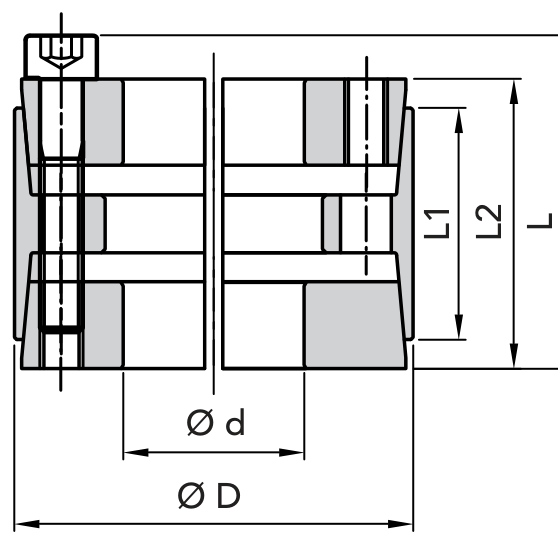

Code Size Ød × ØD (mm)L1L2L Weight CAD
06110025 25 × 55 32 mm 40 mm 46 mm 0.5 kg
06110028 28 × 55 32 mm 40 mm 46 mm 0.6 kg
06110030 30 × 55 32 mm 40 mm 46 mm 0.6 kg
06110035 35 × 60 44 mm 54 mm 60 mm 0.7 kg
06110038 38 × 75 44 mm 54 mm 62 mm 0.7 kg
06110040 40 × 75 44 mm 54 mm 62 mm 0.7 kg
06110042 42 × 75 44 mm 54 mm 62 mm 1.0 kg
06110045 45 × 75 44 mm 54 mm 62 mm 0.9 kg
06110048 48 × 80 56 mm 64 mm 72 mm 1.4 kg
06110050 50 × 80 56 mm 64 mm 72 mm 1.3 kg
06110055 55 × 85 56 mm 64 mm 72 mm 1.5 kg
06110060 60 × 90 56 mm 64 mm 72 mm 1.6 kg
06110065 65 × 95 56 mm 64 mm 72 mm 1.8 kg
06110070 70 × 110 70 mm 78 mm 88 mm 3.0 kg
06110075 75 × 115 70 mm 78 mm 88 mm 3.3 kg
06110080 80 × 120 70 mm 78 mm 88 mm 3.5 kg
06110085 85 × 125 70 mm 78 mm 88 mm 3.7 kg
06110090 90 × 130 70 mm 78 mm 88 mm 3.55 kg
06110095 95 × 135 70 mm 78 mm 88 mm 3.75 kg
06110100 100 × 145 90 mm 100 mm 112 mm 5.8 kg
06110110 110 × 155 90 mm 100 mm 112 mm 6.25 kg
06110120 120 × 165 90 mm 100 mm 112 mm 6.65 kg
06110130 130 × 180 104 mm 116 mm 130 mm 9.3 kg
06110140 140 × 190 104 mm 116 mm 130 mm 9.75 kg
06110150 150 × 200 104 mm 116 mm 130 mm 10.35 kg
06110160 160 × 210 104 mm 116 mm 130 mm 10.95 kg
06110170 170 × 225 134 mm 148 mm 164 mm 16.2 kg
06110180 180 × 235 134 mm 148 mm 164 mm 16.9 kg
06110190 190 × 250 134 mm 148 mm 164 mm 19.85 kg
06110200 200 × 260 134 mm 148 mm 164 mm 22.0 kg
06110220 220 × 285 134 mm 148 mm 164 mm 25.0 kg
06110240 240 × 305 134 mm 148 mm 164 mm 27.0 kg
06110260 260 × 325 134 mm 148 mm 164 mm 30.0 kg
06110280 280 × 355 165 mm 177 mm 197 mm 46.0 kg
06110300 300 × 375 165 mm 177 mm 197 mm 50.0 kg

Product Information

Type
Self Centring locking element
Series
RCK 11
