Chiaravalli Locking Element RCK 13 (Self Centring)
Chiaravalli

Locking Element RCK 13 (Self Centring)

Locking Elements · RCK 13

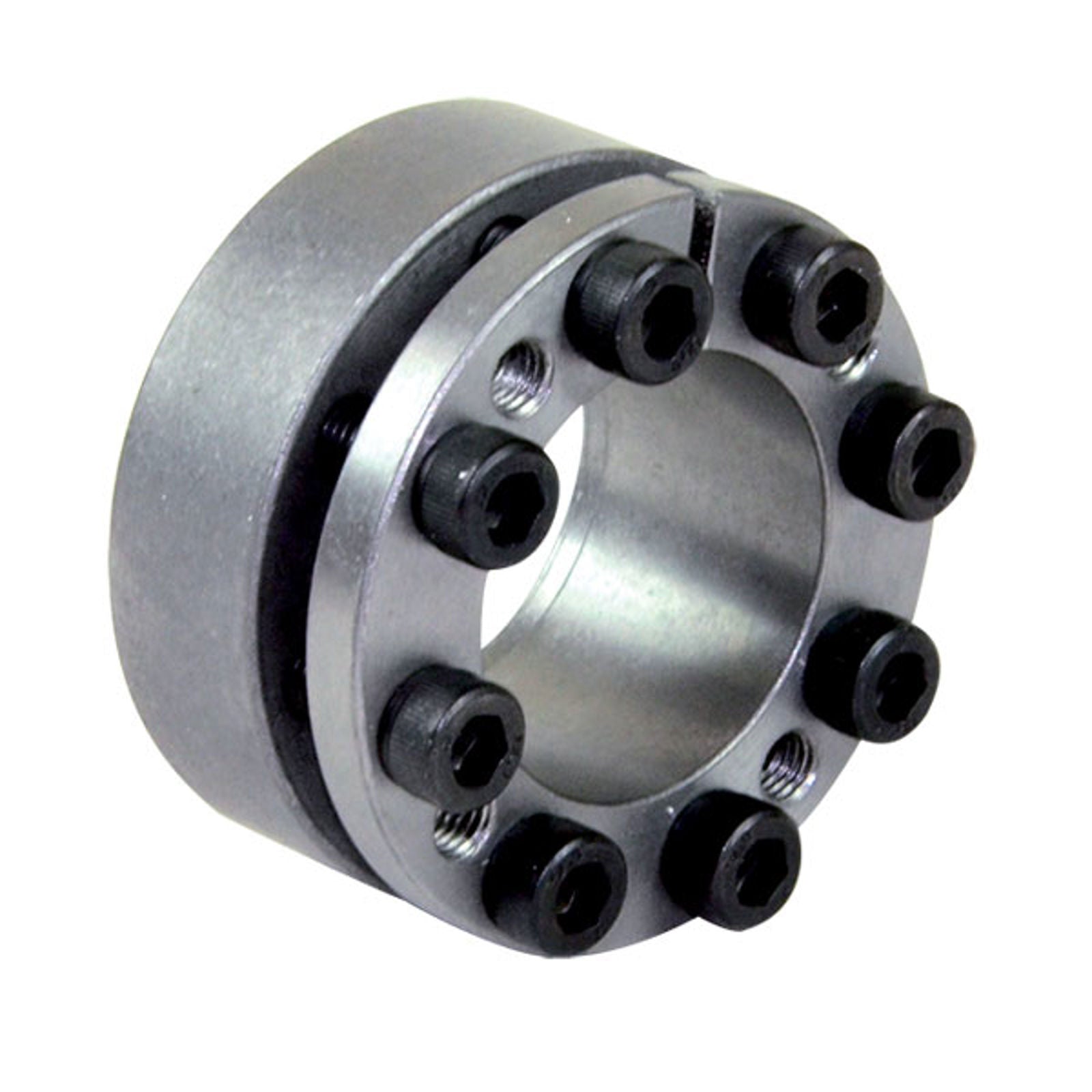

RCK 13 locking element (shaft clamping element), self centring type — keyless friction connection between shaft and hub.

Suitable for assemblies where good concentricity is required in small spaces with medium-high torque values. It can substitute RCK 40 in some cases.

Recommended machining tolerances for the pressure surfaces: Ø h8 for shaft, Ø H8 for hub.

Product Configuration

Select a row to add it to your quote

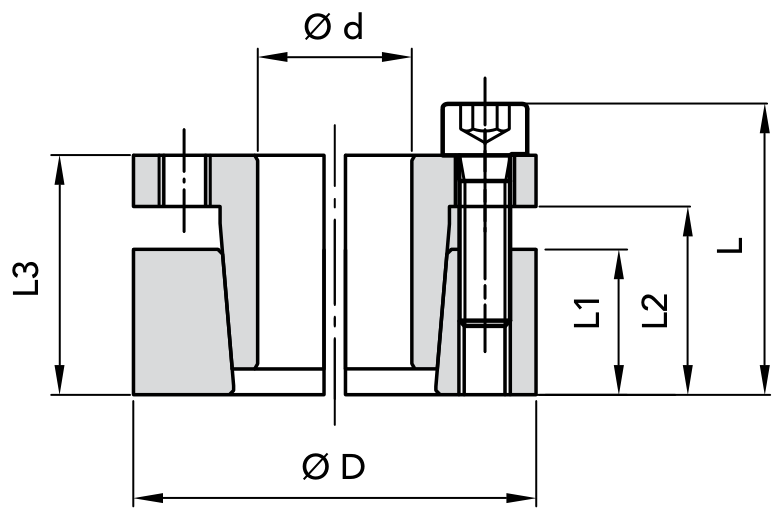

Code Size Ød × ØD (mm)L1L2L3L Weight CAD
06130018 18 × 47 17 mm 22 mm 28 mm 34 mm 0.15 kg
06130019 19 × 47 17 mm 22 mm 28 mm 34 mm 0.15 kg
06130020 20 × 47 17 mm 22 mm 28 mm 34 mm 0.15 kg
06130022 22 × 47 17 mm 22 mm 28 mm 34 mm 0.3 kg
06130024 24 × 50 17 mm 22 mm 28 mm 34 mm 0.3 kg
06130025 25 × 50 17 mm 22 mm 28 mm 34 mm 0.3 kg
06130028 28 × 55 17 mm 22 mm 28 mm 34 mm 0.35 kg
06130030 30 × 55 17 mm 22 mm 28 mm 34 mm 0.35 kg
06130032 32 × 60 17 mm 22 mm 28 mm 34 mm 0.4 kg
06130035 35 × 60 17 mm 22 mm 28 mm 34 mm 0.4 kg
06130038 38 × 65 17 mm 22 mm 28 mm 34 mm 0.4 kg
06130040 40 × 65 17 mm 22 mm 28 mm 34 mm 0.4 kg
06130045 45 × 75 20 mm 25 mm 33 mm 41 mm 0.6 kg
06130050 50 × 80 20 mm 25 mm 33 mm 41 mm 0.8 kg
06130055 55 × 85 20 mm 25 mm 33 mm 41 mm 0.8 kg
06130060 60 × 90 20 mm 25 mm 33 mm 41 mm 0.8 kg
06130065 65 × 95 20 mm 25 mm 33 mm 41 mm 0.9 kg
06130070 70 × 110 24 mm 30 mm 40 mm 50 mm 1.59 kg
06130075 75 × 115 24 mm 30 mm 40 mm 50 mm 1.8 kg
06130080 80 × 120 24 mm 30 mm 40 mm 50 mm 1.8 kg
06130085 85 × 125 24 mm 30 mm 40 mm 50 mm 2.0 kg
06130090 90 × 130 24 mm 30 mm 40 mm 50 mm 2.1 kg
06130095 95 × 135 24 mm 30 mm 40 mm 50 mm 2.1 kg
06130100 100 × 145 26 mm 32 mm 44 mm 56 mm 2.8 kg
06130110 110 × 155 26 mm 32 mm 44 mm 56 mm 3.0 kg
06130120 120 × 165 26 mm 32 mm 44 mm 56 mm 3.2 kg
06130130 130 × 180 34 mm 40 mm 52 mm 64 mm 4.8 kg
06130140 140 × 190 34 mm 40 mm 54 mm 68 mm 5.2 kg
06130150 150 × 200 34 mm 40 mm 54 mm 68 mm 5.4 kg
06130160 160 × 210 34 mm 40 mm 54 mm 68 mm 5.7 kg
06130170 170 × 225 44 mm 50 mm 64 mm 78 mm 8.0 kg
06130180 180 × 235 44 mm 50 mm 64 mm 78 mm 8.3 kg

Product Information

Type
Self Centring locking element
Series
RCK 13

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.

Contact Us
