Chiaravalli Locking Element RCK 15 (Self Centring)
Chiaravalli

Locking Element RCK 15 (Self Centring)

Locking Elements · RCK 15

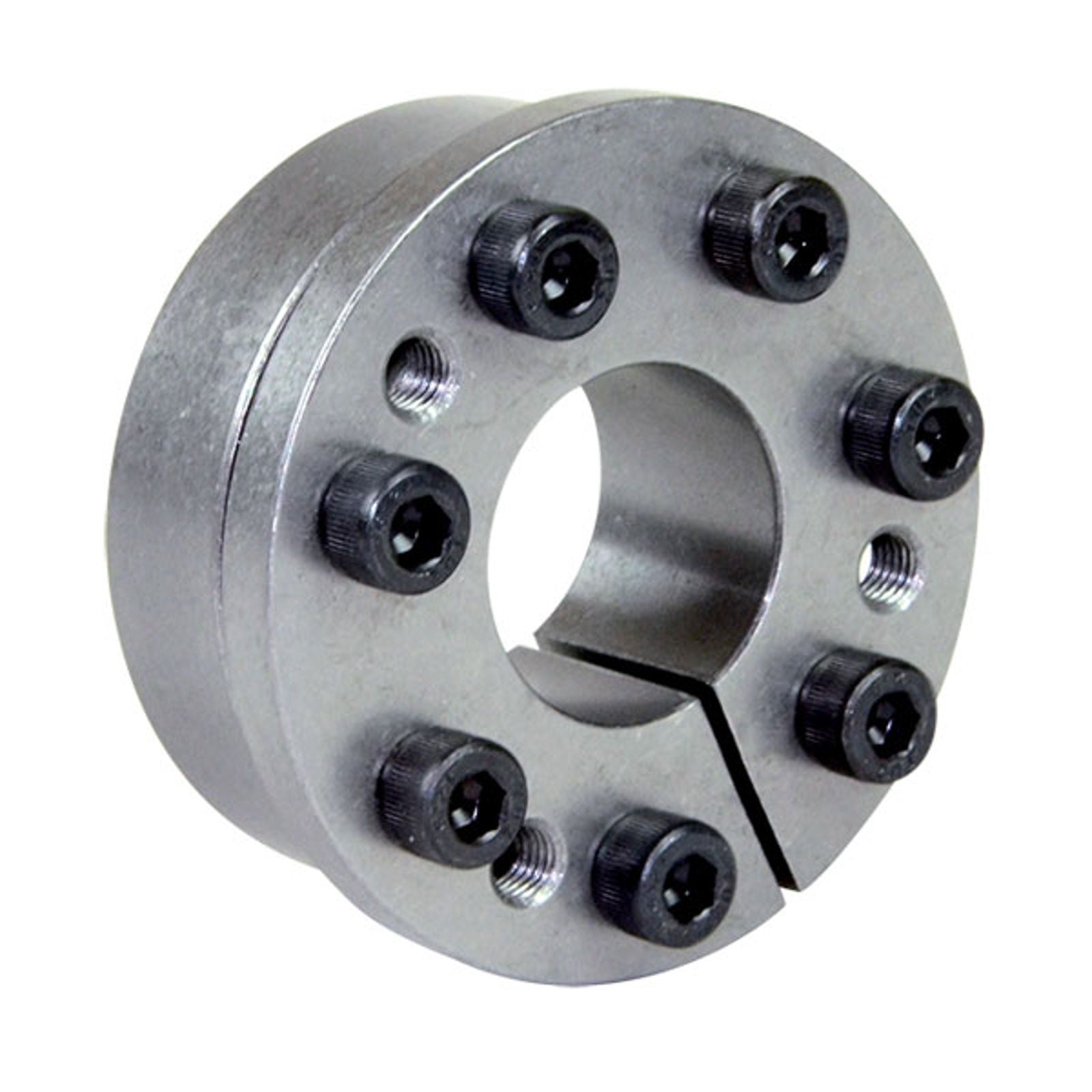

RCK 15 locking element (shaft clamping element), self centring type — keyless friction connection between shaft and hub.

Suitable for assemblies where axial and radial positioning accuracy is required with medium-high torque values. The main feature is the possibility of varying the internal bores while maintaining the external dimensions constant at only three diameters.

Recommended machining tolerances for the pressure surfaces: Ø h8 for shaft, Ø H8 for hub.

Sizes 40 × 80, 45 × 80 and 50 × 80 are also available in a higher-torque 10-screw execution — select by screw count in the size selector.

Product Configuration

Select a row to add it to your quote

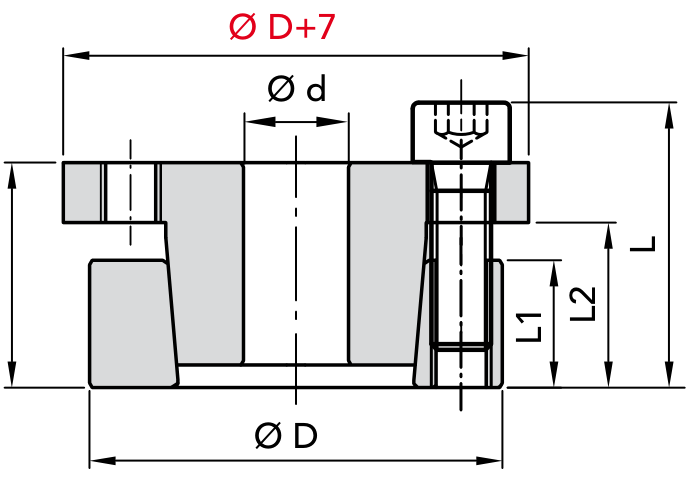

Code Size Ød × ØD (mm)L1L2L3L Weight CAD
06150014 14 × 55 17 mm 22 mm 31 mm 39 mm 0.5 kg
06150016 16 × 55 17 mm 22 mm 31 mm 39 mm 0.5 kg
06150018 18 × 55 17 mm 22 mm 31 mm 39 mm 0.5 kg
06150019 19 × 55 17 mm 22 mm 31 mm 39 mm 0.5 kg
06150020 20 × 55 17 mm 22 mm 31 mm 39 mm 0.5 kg
06150022 22 × 55 17 mm 22 mm 31 mm 39 mm 0.5 kg
06150024 24 × 55 17 mm 22 mm 31 mm 39 mm 0.5 kg
06150025 25 × 55 17 mm 22 mm 31 mm 39 mm 0.5 kg
06150028 28 × 55 17 mm 22 mm 31 mm 39 mm 0.4 kg
06150030 30 × 55 17 mm 22 mm 31 mm 39 mm 0.4 kg
06151024 24 × 65 17 mm 22 mm 31 mm 39 mm 0.7 kg
06151025 25 × 65 17 mm 22 mm 31 mm 39 mm 0.7 kg
06151028 28 × 65 17 mm 22 mm 31 mm 39 mm 0.6 kg
06151030 30 × 65 17 mm 22 mm 31 mm 39 mm 0.6 kg
06151032 32 × 65 17 mm 22 mm 31 mm 39 mm 0.6 kg
06151033 33 × 65 17 mm 22 mm 31 mm 39 mm 0.6 kg
06151035 35 × 65 17 mm 22 mm 31 mm 39 mm 0.5 kg
06151038 38 × 65 17 mm 22 mm 31 mm 39 mm 0.5 kg
06151040 40 × 65 17 mm 22 mm 31 mm 39 mm 0.5 kg
06152030 30 × 80 20 mm 25 mm 33 mm 41 mm 1.0 kg
06152032 32 × 80 20 mm 25 mm 33 mm 41 mm 1.0 kg
06152033 33 × 80 20 mm 25 mm 33 mm 41 mm 1.0 kg
06152035 35 × 80 20 mm 25 mm 33 mm 41 mm 1.0 kg
06152038 38 × 80 20 mm 25 mm 33 mm 41 mm 1.0 kg
06152040 40 × 80 20 mm 25 mm 33 mm 41 mm 0.9 kg
06152042 42 × 80 20 mm 25 mm 33 mm 41 mm 0.9 kg
06152045 45 × 80 20 mm 25 mm 33 mm 41 mm 0.8 kg
06152048 48 × 80 20 mm 25 mm 33 mm 41 mm 0.8 kg
06152050 50 × 80 20 mm 25 mm 33 mm 41 mm 0.8 kg
06153040 40 × 80 20 mm 25 mm 33 mm 41 mm 0.95 kg
06153045 45 × 80 20 mm 25 mm 33 mm 41 mm 0.85 kg
06153050 50 × 80 20 mm 25 mm 33 mm 41 mm 0.85 kg

Product Information

Type
Self Centring locking element
Series
RCK 15
