Chiaravalli Locking Element RCK 16 (Self Centring)
Chiaravalli

Locking Element RCK 16 (Self Centring)

Locking Elements · RCK 16

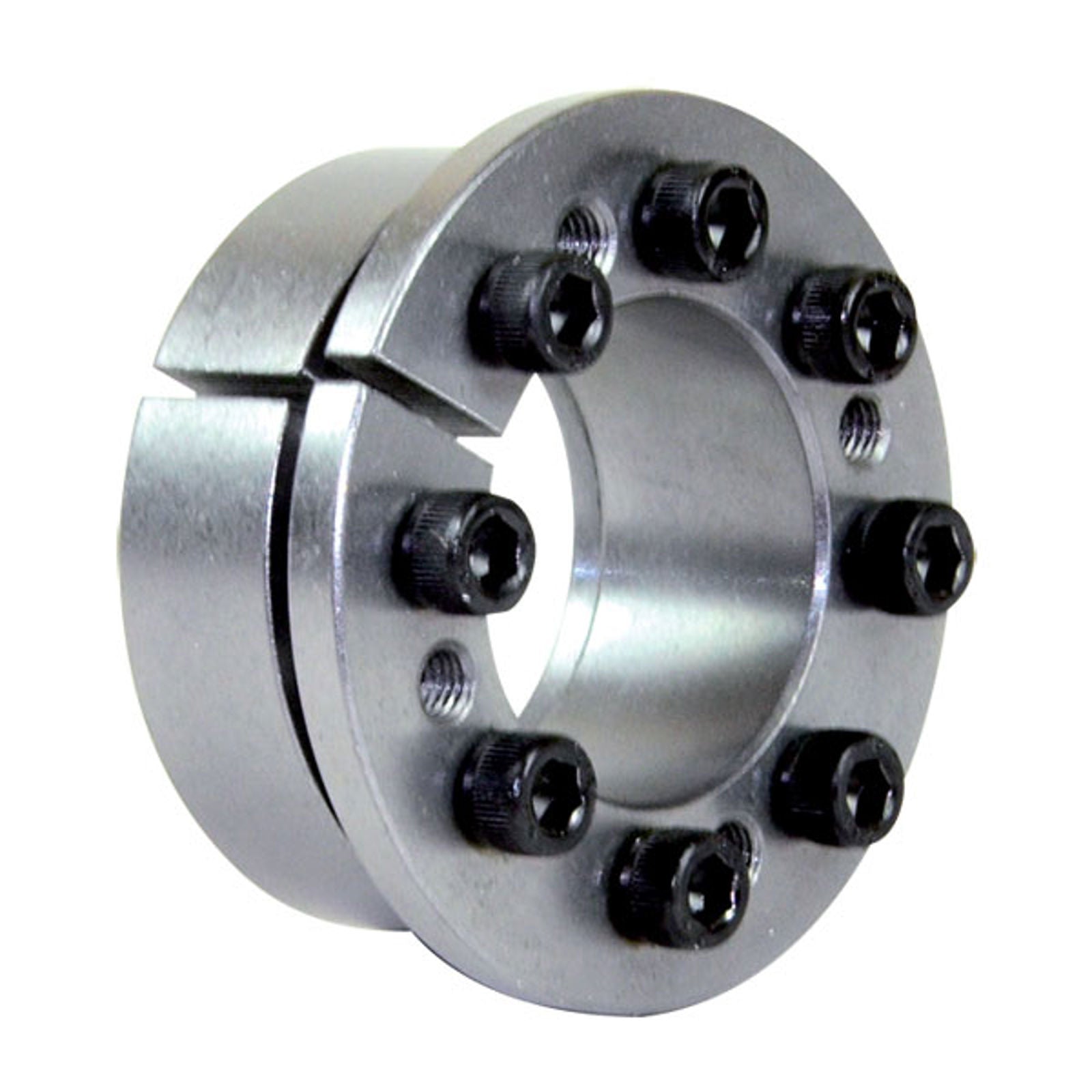

RCK 16 locking element (shaft clamping element), self centring type — keyless friction connection between shaft and hub.

Suitable for assemblies where concentricity and positioning accuracy is required. It operates with medium-high torque values.

Recommended machining tolerances for the pressure surfaces: Ø h8 for shaft, Ø H8 for hub.

Product Configuration

Select a row to add it to your quote

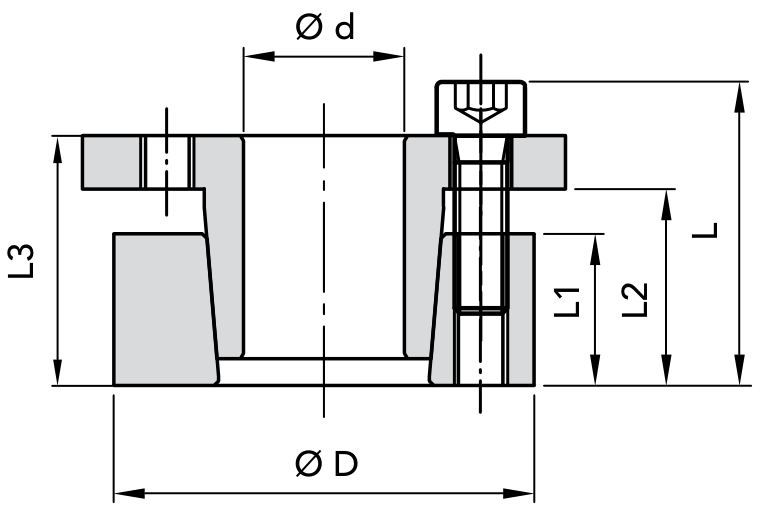

Code Size Ød × ØD (mm)L1L2L3L Weight CAD
06160018 18 × 47 17 mm 22 mm 28 mm 34 mm 0.3 kg
06160019 19 × 47 17 mm 22 mm 28 mm 34 mm 0.3 kg
06160020 20 × 47 17 mm 22 mm 28 mm 34 mm 0.3 kg
06160022 22 × 47 17 mm 22 mm 28 mm 34 mm 0.3 kg
06160024 24 × 50 17 mm 22 mm 28 mm 34 mm 0.3 kg
06160025 25 × 50 17 mm 22 mm 28 mm 34 mm 0.3 kg
06160028 28 × 55 17 mm 22 mm 28 mm 34 mm 0.4 kg
06160030 30 × 55 17 mm 22 mm 28 mm 34 mm 0.4 kg
06160032 32 × 60 17 mm 22 mm 28 mm 34 mm 0.4 kg
06160035 35 × 60 17 mm 22 mm 28 mm 34 mm 0.4 kg
06160038 38 × 65 17 mm 22 mm 28 mm 34 mm 0.5 kg
06160040 40 × 65 17 mm 22 mm 28 mm 34 mm 0.5 kg
06160045 45 × 75 20 mm 25 mm 33 mm 41 mm 0.7 kg
06160050 50 × 80 20 mm 25 mm 33 mm 41 mm 0.8 kg
06160055 55 × 85 20 mm 25 mm 33 mm 41 mm 0.9 kg
06160060 60 × 90 20 mm 25 mm 33 mm 41 mm 0.9 kg
06160065 65 × 95 20 mm 25 mm 33 mm 41 mm 1.0 kg
06160070 70 × 110 24 mm 30 mm 40 mm 50 mm 1.9 kg
06160075 75 × 115 24 mm 30 mm 40 mm 50 mm 2.0 kg
06160080 80 × 120 24 mm 30 mm 40 mm 50 mm 2.0 kg
06160085 85 × 125 24 mm 30 mm 40 mm 50 mm 2.0 kg
06160090 90 × 130 24 mm 30 mm 40 mm 50 mm 2.2 kg
06160095 95 × 135 24 mm 30 mm 40 mm 50 mm 2.3 kg
06160100 100 × 145 26 mm 32 mm 44 mm 56 mm 3.0 kg
06160110 110 × 155 26 mm 32 mm 44 mm 56 mm 3.2 kg
06160120 120 × 165 26 mm 32 mm 44 mm 56 mm 3.4 kg
06160130 130 × 180 34 mm 40 mm 52 mm 64 mm 5.2 kg
06160140 140 × 190 34 mm 40 mm 54 mm 68 mm 5.4 kg
06160150 150 × 200 34 mm 40 mm 54 mm 68 mm 5.7 kg
06160160 160 × 210 34 mm 40 mm 54 mm 68 mm 6.0 kg
06160170 170 × 225 44 mm 50 mm 64 mm 78 mm 8.3 kg
06160180 180 × 235 44 mm 50 mm 64 mm 78 mm 8.8 kg

Product Information

Type
Self Centring locking element
Series
RCK 16
