Chiaravalli Locking Element RCK 19 (Self Centring)
Chiaravalli

Locking Element RCK 19 (Self Centring)

Locking Elements · RCK 19

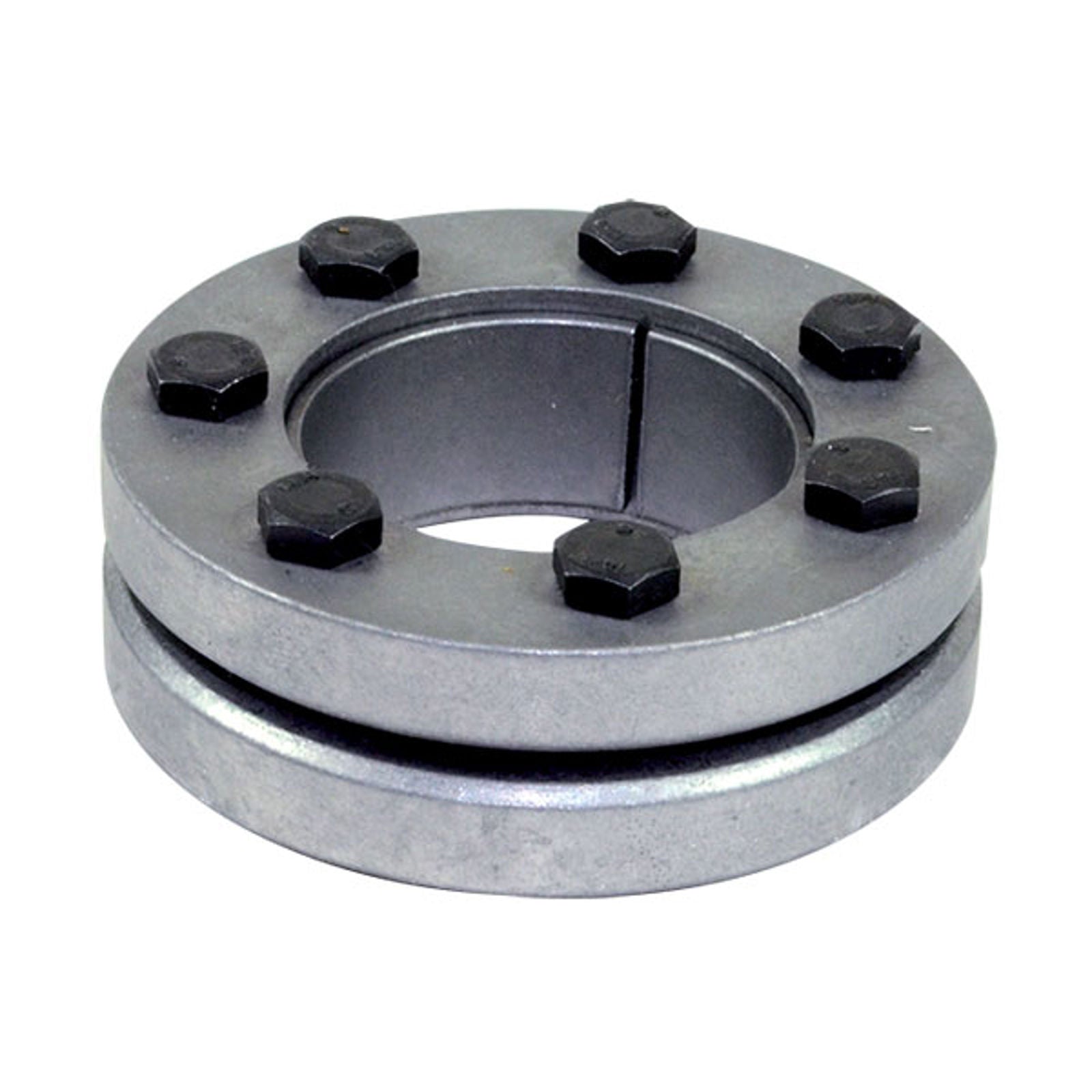

RCK 19 locking element (shaft clamping element), self centring type — keyless friction connection between shaft and hub.

Suitable for hollow shafts, it operates by compressing the hollow shafts on the solid shafts enabling transmission of medium high twisting moments to be achieved.

Intern tapers are lubricated with products based on molybdenum bisulphide. Clamping screws are DIN 931 mat. 10.9, except codes 06190024 and 06190030 (DIN 912 mat. 12.9). Recommended machining tolerance: Ød h8 diameter.

Product Configuration

Select a row to add it to your quote

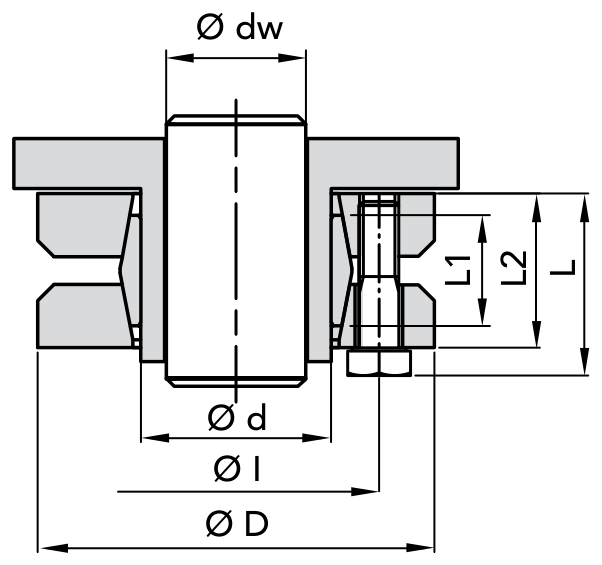

Code Size Ød × ØD (mm)ØdwL1L2LØI Weight CAD
06190024 24 × 50 19 / 20 / 21 mm 14 mm 19.5 mm 23 mm 36 mm 0.2 kg —
06190030 30 × 60 24 / 25 / 26 mm 16 mm 21.5 mm 25 mm 44 mm 0.3 kg
06190036 36 × 72 28 / 30 / 31 mm 18 mm 23.5 mm 27.5 mm 52 mm 0.4 kg
06190044 44 × 80 32 / 35 / 36 mm 20 mm 25.5 mm 29.5 mm 61 mm 0.6 kg
06190050 50 × 90 38 / 40 / 42 mm 22 mm 27.5 mm 31.5 mm 70 mm 0.8 kg
06190055 55 × 100 42 / 45 / 48 mm 23 mm 30.5 mm 34.5 mm 75 mm 1.1 kg
06190062 62 × 110 48 / 50 / 52 mm 23 mm 30.5 mm 34.5 mm 86 mm 1.3 kg
06190068 68 × 115 50 / 55 / 60 mm 23 mm 30.5 mm 34.5 mm 86 mm 1.4 kg
06190075 75 × 138 55 / 60 / 65 mm 25 mm 32.5 mm 37.8 mm 100 mm 1.7 kg
06190080 80 × 145 60 / 65 / 70 mm 25 mm 32.5 mm 37.8 mm 100 mm 1.9 kg
06190090 90 × 155 65 / 70 / 75 mm 30 mm 39 mm 44.3 mm 114 mm 3.3 kg
06190100 100 × 170 70 / 75 / 80 mm 34 mm 44 mm 49.3 mm 124 mm 4.7 kg
06190110 110 × 185 75 / 80 / 85 mm 39 mm 50 mm 56.4 mm 136 mm 5.9 kg
06190125 125 × 215 85 / 90 / 95 mm 42 mm 54 mm 60.4 mm 160 mm 8.3 kg
06190140 140 × 230 95 / 100 / 105 mm 46 mm 60.5 mm 68 mm 175 mm 10.0 kg
06190155 155 × 265 105 / 110 / 115 mm 50 mm 64.5 mm 72 mm 192 mm 15.0 kg
06190165 165 × 290 115 / 120 / 125 mm 56 mm 71 mm 81 mm 210 mm 22.0 kg
06190175 175 × 300 125 / 130 / 135 mm 56 mm 71 mm 81 mm 220 mm 22.0 kg
06190185 185 × 330 135 / 140 / 145 mm 71 mm 86 mm 96 mm 236 mm 24.0 kg

Product Information

Type
Self Centring locking element
Series
RCK 19
