Chiaravalli Locking Element RCK 40 (Not Self Centring)
Chiaravalli

Locking Element RCK 40 (Not Self Centring)

Locking Elements · RCK 40

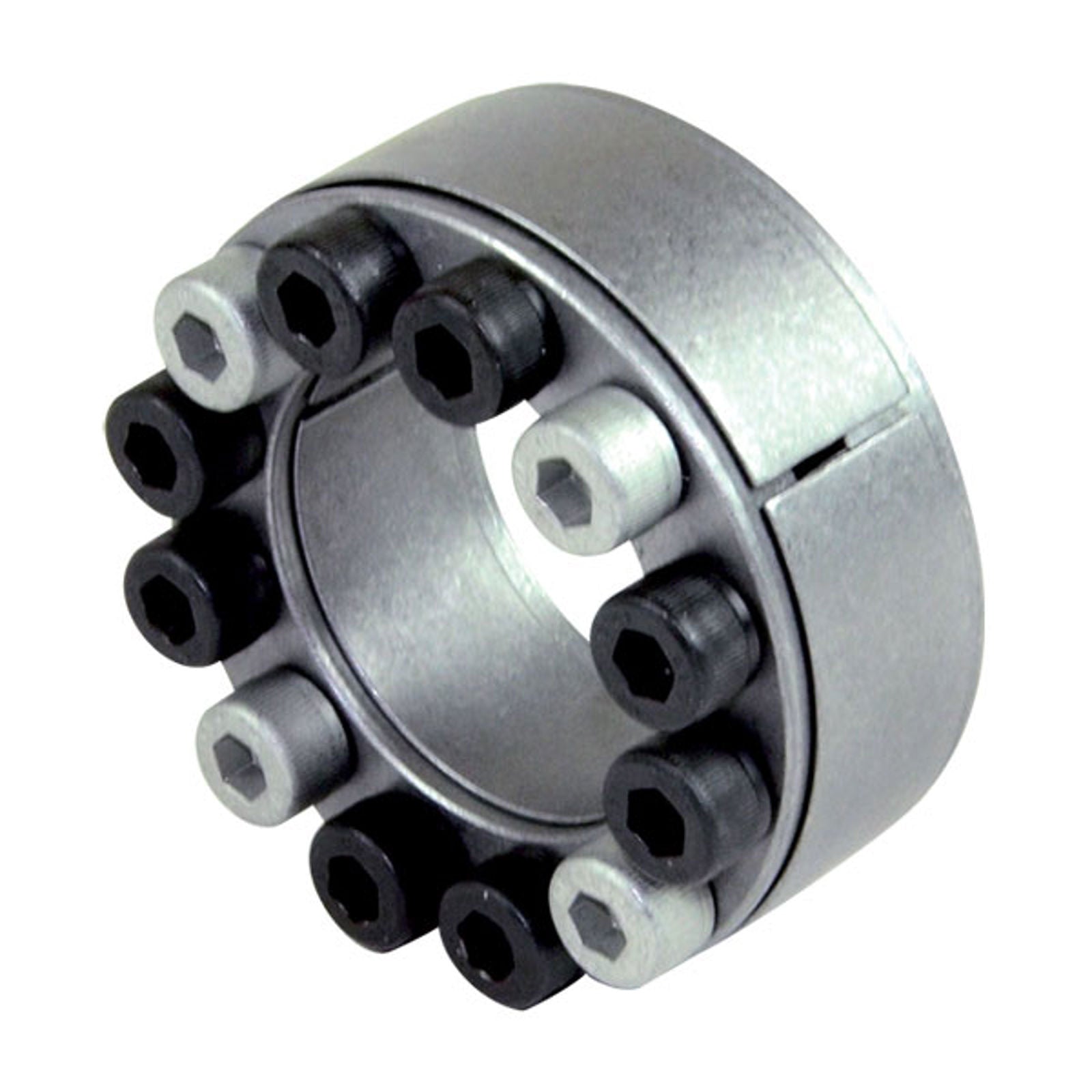

RCK 40 locking element (shaft clamping element), not self centring type — keyless friction connection between shaft and hub.

Suitable for general applications, it is not self centring and therefore requires a centring band to ensure perfect concentricity. It operates with medium-high torque values.

Recommended machining tolerances for the pressure surfaces: Ø h8 for shaft, Ø H8 for hub.

Product Configuration

Select a row to add it to your quote

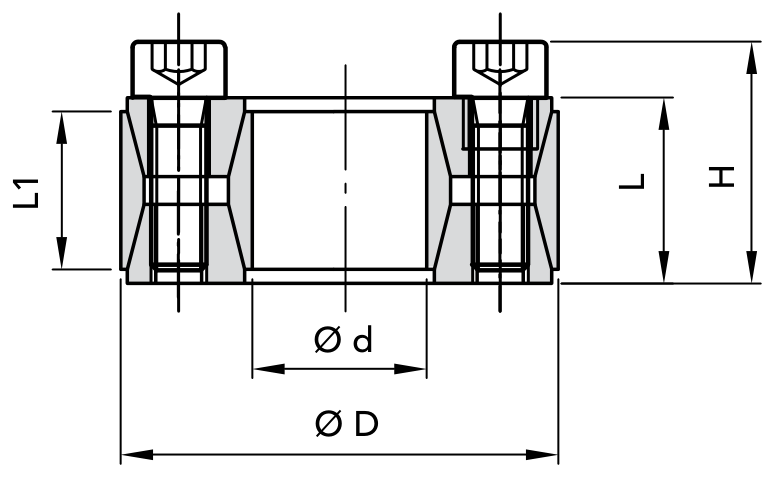

Code Size Ød × ØD (mm)L1LH Weight CAD
06400019 19 × 47 17 mm 20 mm 28 mm 0.25 kg
06400020 20 × 47 17 mm 20 mm 28 mm 0.24 kg
06400022 22 × 47 17 mm 20 mm 28 mm 0.23 kg
06400024 24 × 50 17 mm 20 mm 28 mm 0.26 kg
06400025 25 × 50 17 mm 20 mm 28 mm 0.25 kg
06400028 28 × 55 17 mm 20 mm 28 mm 0.27 kg
06400030 30 × 55 17 mm 20 mm 28 mm 0.27 kg
06400032 32 × 60 17 mm 20 mm 28 mm 0.32 kg
06400035 35 × 60 17 mm 20 mm 28 mm 0.32 kg
06400038 38 × 65 17 mm 20 mm 28 mm 0.36 kg
06400040 40 × 65 17 mm 20 mm 28 mm 0.34 kg
06400042 42 × 75 20 mm 24 mm 34 mm 0.48 kg
06400045 45 × 75 20 mm 24 mm 34 mm 0.57 kg
06400048 48 × 80 20 mm 24 mm 34 mm 0.59 kg
06400050 50 × 80 20 mm 24 mm 34 mm 0.6 kg
06400055 55 × 85 20 mm 24 mm 34 mm 0.63 kg
06400060 60 × 90 20 mm 24 mm 34 mm 0.69 kg
06400065 65 × 95 20 mm 24 mm 34 mm 0.73 kg
06400070 70 × 110 24 mm 28 mm 40 mm 1.26 kg
06400075 75 × 115 24 mm 28 mm 40 mm 1.33 kg
06400080 80 × 120 24 mm 28 mm 40 mm 1.4 kg
06400085 85 × 125 24 mm 28 mm 40 mm 1.49 kg
06400090 90 × 130 24 mm 28 mm 40 mm 1.53 kg
06400095 95 × 135 24 mm 28 mm 40 mm 1.62 kg
06400100 100 × 145 26 mm 33 mm 47 mm 2.01 kg
06400110 110 × 155 26 mm 33 mm 47 mm 2.15 kg
06400120 120 × 165 26 mm 33 mm 47 mm 2.35 kg
06400130 130 × 180 34 mm 38 mm 52 mm 3.51 kg
06400140 140 × 190 34 mm 38 mm 52 mm 3.85 kg
06400150 150 × 200 34 mm 38 mm 52 mm 4.07 kg
06400160 160 × 210 34 mm 38 mm 52 mm 4.3 kg
06400170 170 × 225 38 mm 44 mm 60 mm 5.8 kg
06400180 180 × 235 38 mm 44 mm 60 mm 6.0 kg
06400190 190 × 250 46 mm 52 mm 68 mm 8.5 kg
06400200 200 × 260 46 mm 52 mm 68 mm 8.6 kg
06400220 220 × 285 50 mm 56 mm 74 mm 11.0 kg

Product Information

Type
Not Self Centring locking element
Series
RCK 40
