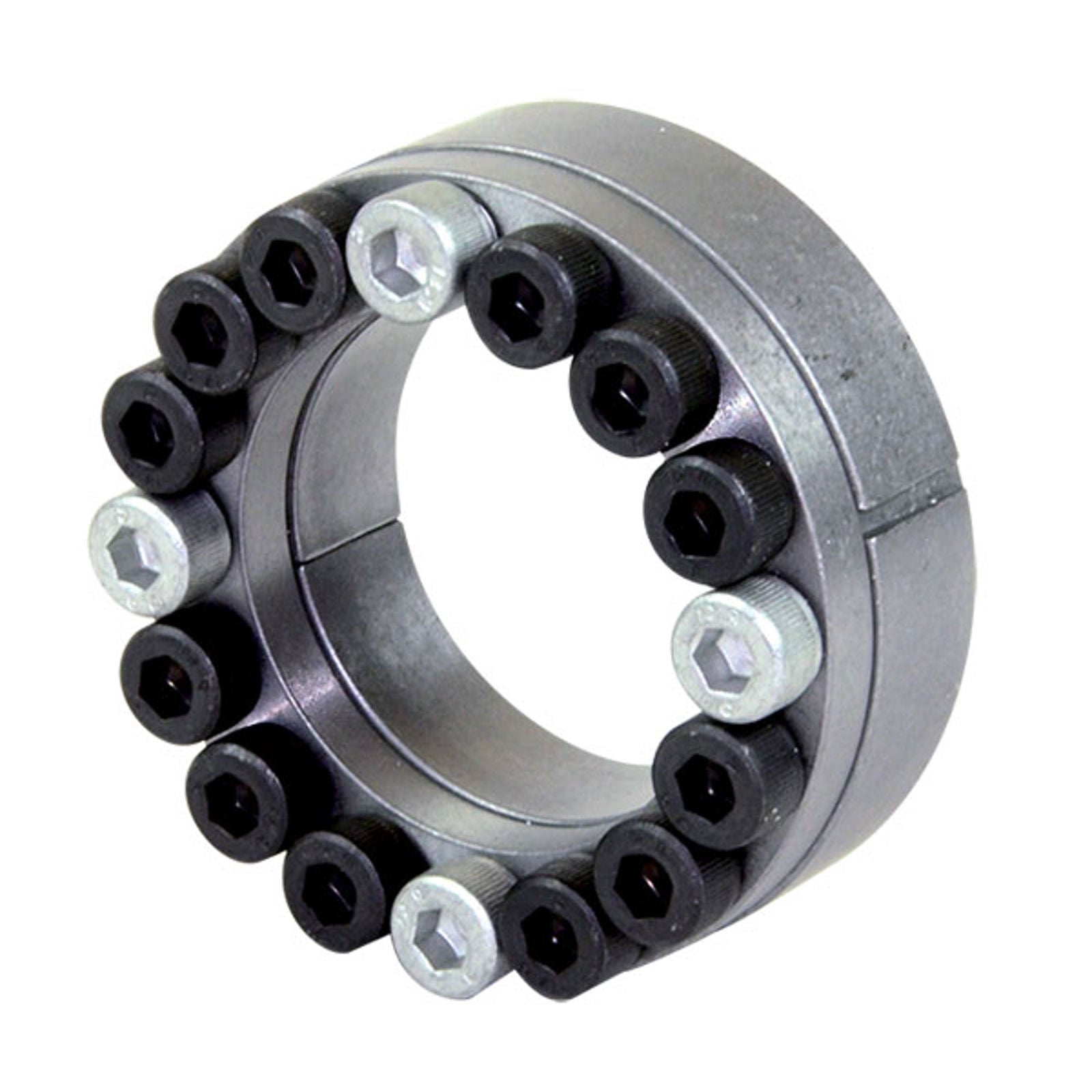

Locking Element RCK 45 (Not Self Centring)

Name: Chiaravalli Locking Element RCK 45 (Not Self Centring)
Brand: Chiaravalli

Locking Elements · RCK 45

RCK 45 locking element (shaft clamping element), not self centring type — keyless friction connection between shaft and hub.

Suitable for applications where medium-low twisting moments are required with, easy rapid assembly and disassembly operation. Not self centring.

Recommended machining tolerances for the pressure surfaces: Ø h8 for shaft, Ø H8 for hub.

Select a row to add it to your quote

Size

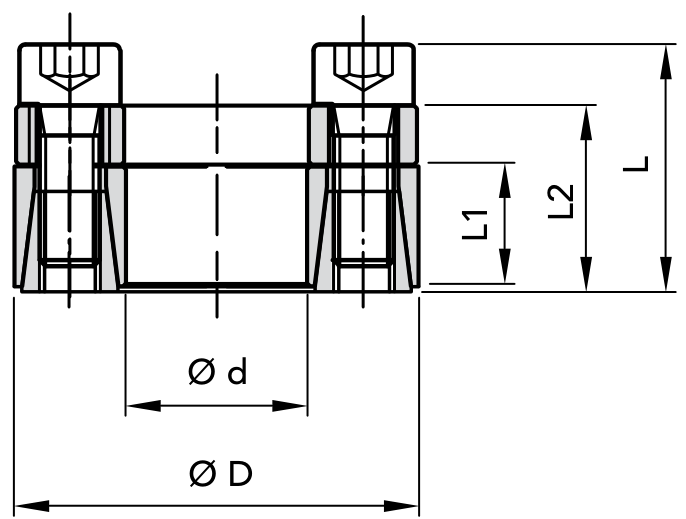

Code	Size Ød × ØD (mm)	L1	L2	L	Weight
`06450018`	`18 × 40`	`12` mm	`18.5` mm	`24.5` mm	`0.2` kg
`06450019`	`19 × 41`	`12` mm	`18.5` mm	`24.5` mm	`0.25` kg
`06450020`	`20 × 42`	`12` mm	`18.5` mm	`24.5` mm	`0.24` kg
`06450024`	`24 × 46`	`12` mm	`18.5` mm	`24.5` mm	`0.25` kg
`06450025`	`25 × 47`	`12` mm	`18.5` mm	`24.5` mm	`0.25` kg
`06450028`	`28 × 50`	`12` mm	`18.5` mm	`24.5` mm	`0.3` kg
`06450030`	`30 × 52`	`12` mm	`18.5` mm	`24.5` mm	`0.3` kg
`06450035`	`35 × 57`	`15` mm	`22` mm	`28` mm	`0.32` kg
`06450038`	`38 × 60`	`15` mm	`22` mm	`28` mm	`0.36` kg
`06450040`	`40 × 62`	`15` mm	`22` mm	`28` mm	`0.4` kg
`06450042`	`42 × 70`	`18` mm	`28` mm	`36` mm	`0.45` kg
`06450045`	`45 × 73`	`18` mm	`28` mm	`36` mm	`0.57` kg
`06450048`	`48 × 76`	`18` mm	`28` mm	`36` mm	`0.59` kg
`06450050`	`50 × 78`	`18` mm	`28` mm	`36` mm	`0.61` kg
`06450055`	`55 × 83`	`18` mm	`28` mm	`36` mm	`0.63` kg
`06450060`	`60 × 88`	`18` mm	`28` mm	`36` mm	`0.69` kg
`06450070`	`70 × 105`	`22` mm	`35` mm	`35` mm	`1.25` kg
`06450080`	`80 × 115`	`22` mm	`35` mm	`35` mm	`1.4` kg
