Chiaravalli Locking Element RCK 50 (Not Self Centring)
Chiaravalli

Locking Element RCK 50 (Not Self Centring)

Locking Elements · RCK 50

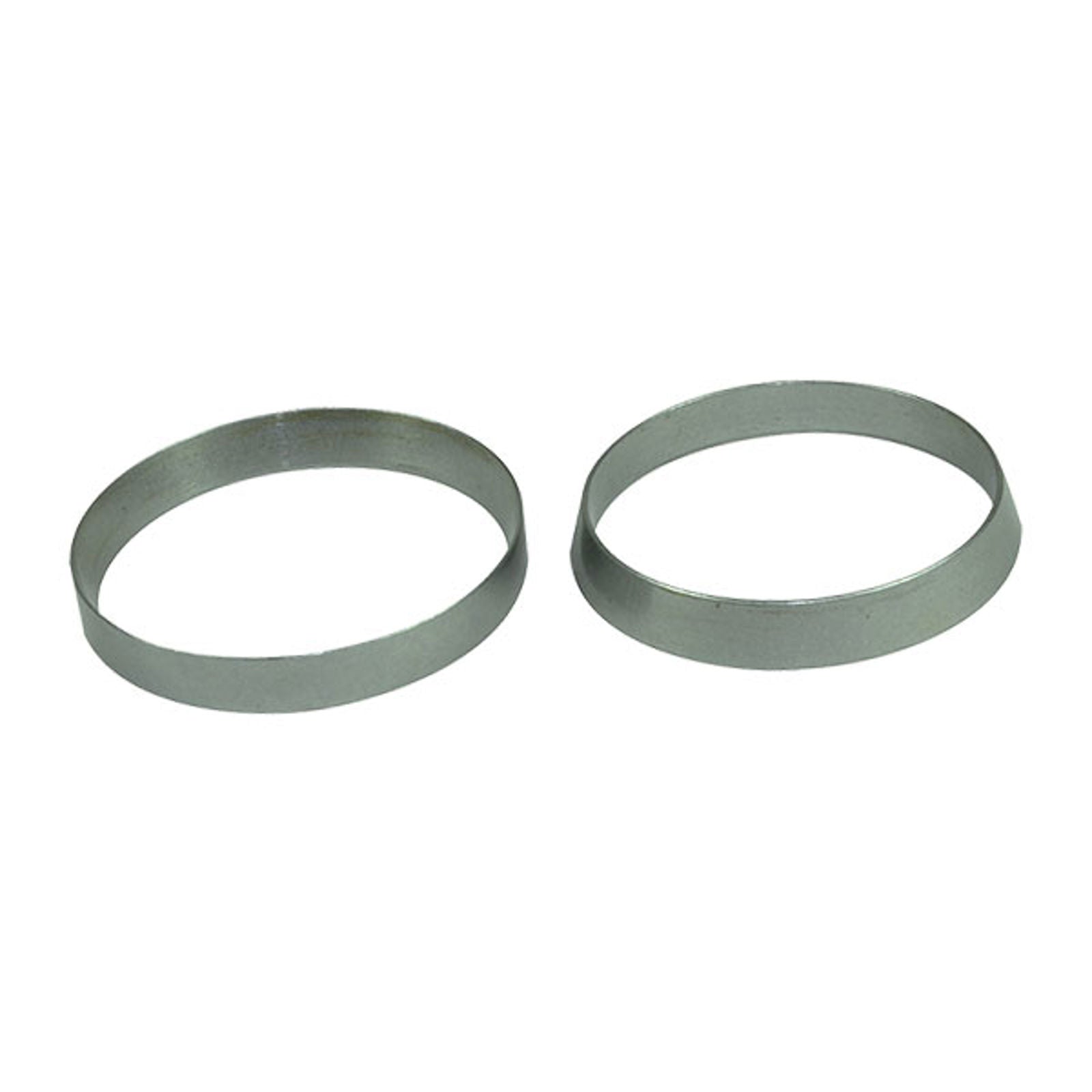

RCK 50 locking element (shaft clamping element), not self centring type — keyless friction connection between shaft and hub.

Comprising two tapered rings, must always be mounted with a tightening flange. It operates with low torque values; it isn't self centring.

Recommended machining tolerances for the pressure surfaces: Ø h8 for shaft, Ø H8 for hub.

Sizes marked * are cut horizontally. Must always be mounted with a tightening flange.

Product Configuration

Select a row to add it to your quote

Code Size Ød × ØD (mm)L1L Weight CAD
06500006 6 × 9 3.7 mm 4.5 mm 0.01 kg
06500007 7 × 10 3.7 mm 4.5 mm 0.01 kg
06500008 8 × 11 3.7 mm 4.5 mm 0.01 kg
06500009 9 × 12 3.7 mm 4.5 mm 0.01 kg
06500010 10 × 13 3.7 mm 4.5 mm 0.01 kg
06500012 12 × 15 3.7 mm 4.5 mm 0.01 kg
06500013 13 × 16 3.7 mm 4.5 mm 0.01 kg
06500014 14 × 18 5.3 mm 6.3 mm 0.01 kg
06500015 15 × 19 5.3 mm 6.3 mm 0.01 kg
06500016 16 × 20 5.3 mm 6.3 mm 0.01 kg
06500017 17 × 21 5.3 mm 6.3 mm 0.01 kg
06500018 18 × 22 5.3 mm 6.3 mm 0.01 kg
06500019 19 × 24 5.3 mm 6.3 mm 0.01 kg
06500020 20 × 25 5.3 mm 6.3 mm 0.01 kg
06500022 22 × 26 5.3 mm 6.3 mm 0.01 kg
06500024 24 × 28 5.3 mm 6.3 mm 0.01 kg
06500025 25 × 30 5.3 mm 6.3 mm 0.01 kg
06500028 28 × 32 5.3 mm 6.3 mm 0.01 kg
06500030 30 × 35 5.3 mm 6.3 mm 0.01 kg
06500032 32 × 36 5.3 mm 6.3 mm 0.02 kg
06500035 35 × 40 6 mm 7 mm 0.02 kg
06500036 36 × 42 6 mm 7 mm 0.02 kg
06500038 38 × 44 6 mm 7 mm 0.02 kg
06500040 40 × 45 6.6 mm 8 mm 0.03 kg
06500042 42 × 48 6.6 mm 8 mm 0.04 kg
06500045 45 × 52 8.6 mm 10 mm 0.04 kg
06500048 48 × 55 8.6 mm 10 mm 0.05 kg
06500050 50 × 57 8.6 mm 10 mm 0.05 kg
06500055 55 × 62 8.6 mm 10 mm 0.06 kg
06500056 56 × 64 10.4 mm 12 mm 0.07 kg
06500060 60 × 68 10.4 mm 12 mm 0.07 kg
06500063 63 × 71 10.4 mm 12 mm 0.08 kg
06500065 65 × 73 10.4 mm 12 mm 0.08 kg
06500070 70 × 79 12.2 mm 14 mm 0.11 kg
06500071 71 × 80 12.2 mm 14 mm 0.12 kg
06500075 75 × 84 12.2 mm 14 mm 0.12 kg
06500080 80 × 91 15 mm 17 mm 0.2 kg —

Product Information

Type
Not Self Centring locking element
Series
RCK 50
